Sinclair

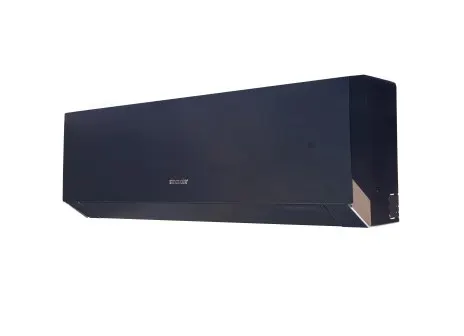

Sinclair MARVIN Navy
Jednostka wewnętrzna · ścienny
Kod produktu: SIH 18BIMN
ŚciennyTyp
5,3 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure indoor cool max dB(A) | 45 dBA |
|---|---|
| Noise pressure indoor cool min dB(A) | 23 dBA |
| Noise pressure indoor heat max dB(A) | 48 dBA |
| Noise pressure indoor heat min dB(A) | 32 dBA |
| Sound power indoor dB(A) | 60 dBA |
capacity
| Dehumidification l h | 1,9 l/h |
|---|
construction
| Condensate drain diameter mm | 16 mm |
|---|
electrical
| Current cool nominal a | 7,2 A |
|---|---|
| Current heat nominal a | 6,3 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool nominal w | 1582 W |
| Power input heat nominal w | 1393 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Pipe diameter gas mm | 12,7 mm |
|---|---|
| Pipe diameter liquid mm | 6,4 mm |
performance
| Dim depth indoor net mm | 222 mm |
|---|---|
| Dim height indoor net mm | 311 mm |
| Dim width indoor net mm | 993 mm |
| Weight indoor gross kg | 15 kg |
| Weight indoor net kg | 12,5 kg |
