SinclairZłóż zestaw z tym agregatem

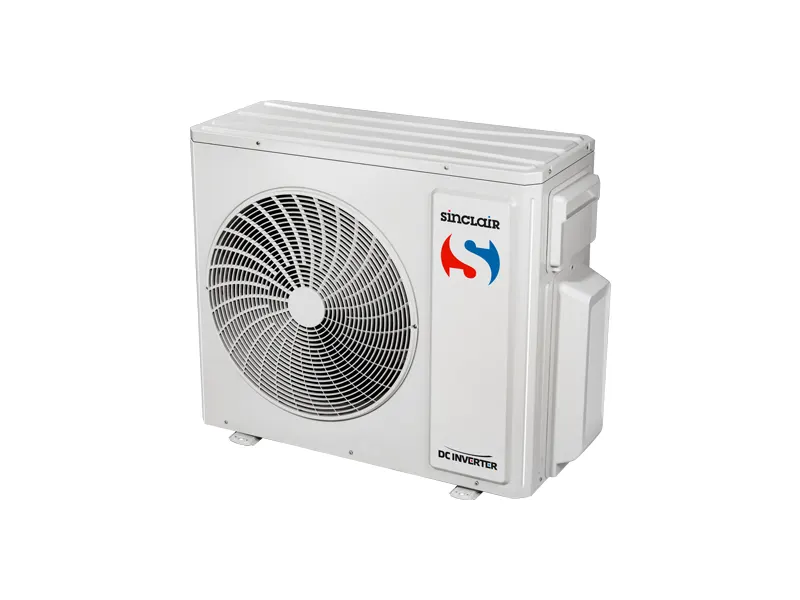

Sinclair MV-E
Jednostka zewnętrzna · do 4 jednostek
Kod produktu: MV-E36BI2
do 4Jednostek wewn.
Dane techniczne
acoustic
| Noise pressure outdoor dB(A) | 60 dBA |
|---|---|
| Sound power outdoor dB(A) | 70 dBA |
capacity
| Capacity cool nominal kW | 10,6 (min 2,6 maks 12,0 kW) kW |
|---|---|
| Capacity heat nominal kW | 12 (min 3,0 maks 14,0 kW) kW |
hydraulic
| Refrigerant charge factory kg | 2,4 kg |
|---|---|
| Refrigerant co2 equivalent t | 1,62 t |
| Refrigerant type | R32 enum_marker |
performance
| Airflow outdoor m3h | 5800 m3h |
|---|---|
| Dim depth outdoor net mm | 427 mm |
| Dim height outdoor net mm | 826 mm |
| Dim width outdoor net mm | 1020 mm |
| Weight outdoor net kg | 72 kg |
seasonal
| Operating temp cool max c | 43 °C |
|---|---|
| Operating temp cool min c | -15 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -22 °C |
