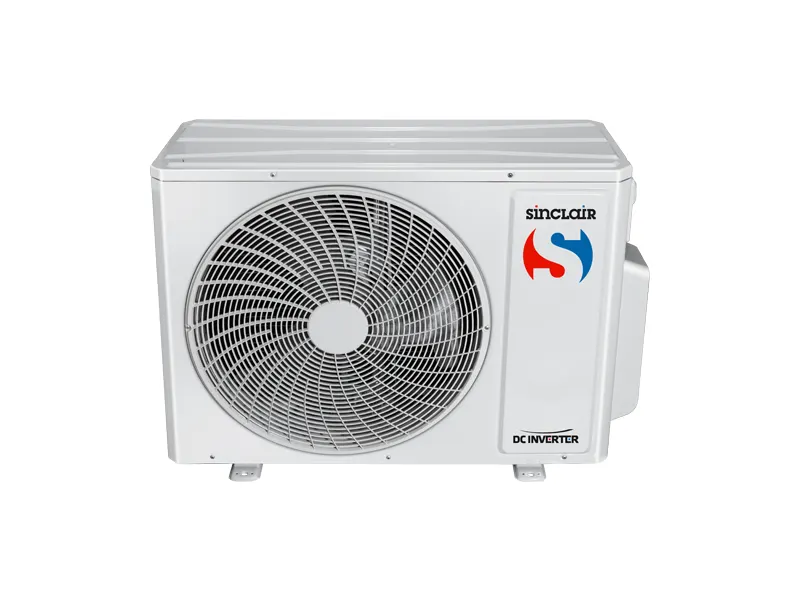

Sinclair MV-E
Jednostka zewnętrzna · do 3 jednostek
Kod produktu: MV-E24BI2
do 3Jednostek wewn.
Dane techniczne
acoustic
| Noise pressure outdoor dB(A) | 58 dBA |
|---|---|
| Sound power outdoor dB(A) | 68 dBA |
capacity
| Capacity cool nominal kW | 7,1 (min 2,3 maks 8,5 kW) kW |
|---|---|
| Capacity heat nominal kW | 8,6 (min 3,7 maks 8,8 kW) kW |
hydraulic
| Refrigerant charge factory kg | 1,7 kg |
|---|---|
| Refrigerant co2 equivalent t | 1,18 t |
| Refrigerant type | R32 enum_marker |
performance
| Airflow outdoor m3h | 3800 m3h |
|---|---|
| Dim depth outdoor net mm | 402 mm |
| Dim height outdoor net mm | 660 mm |
| Dim width outdoor net mm | 964 mm |
| Weight outdoor net kg | 47,5 kg |
seasonal
| Operating temp cool max c | 43 °C |
|---|---|
| Operating temp cool min c | -15 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -22 °C |
