Rotenso Jato
Rotenso

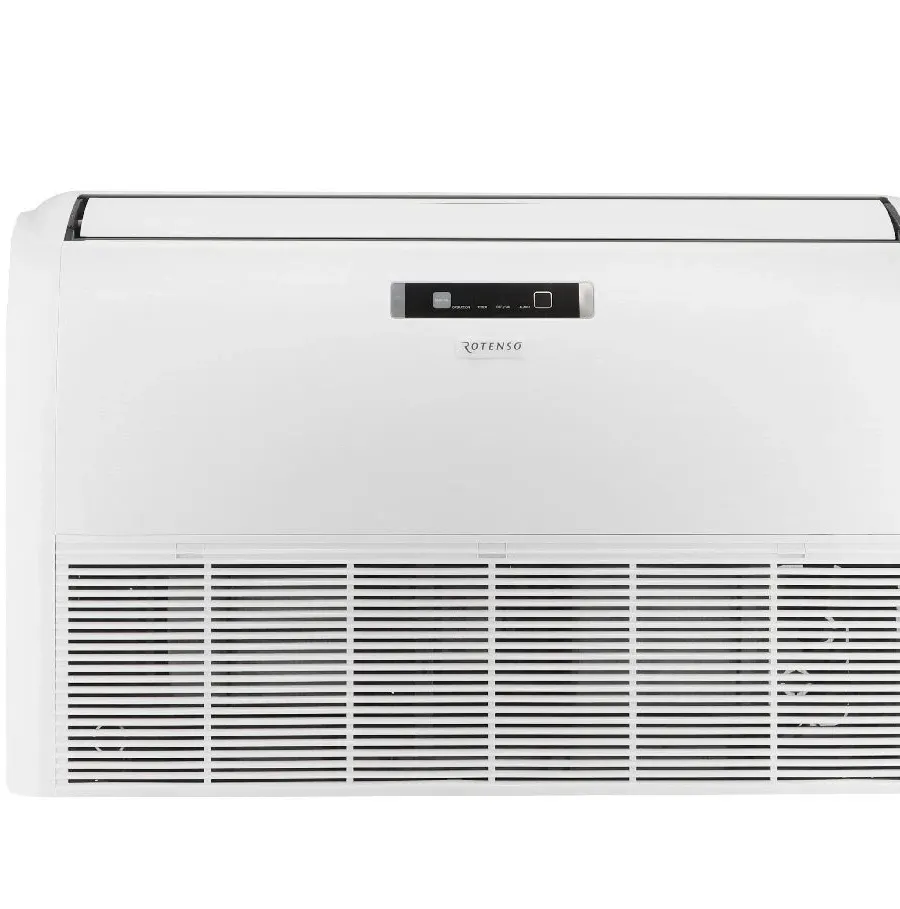

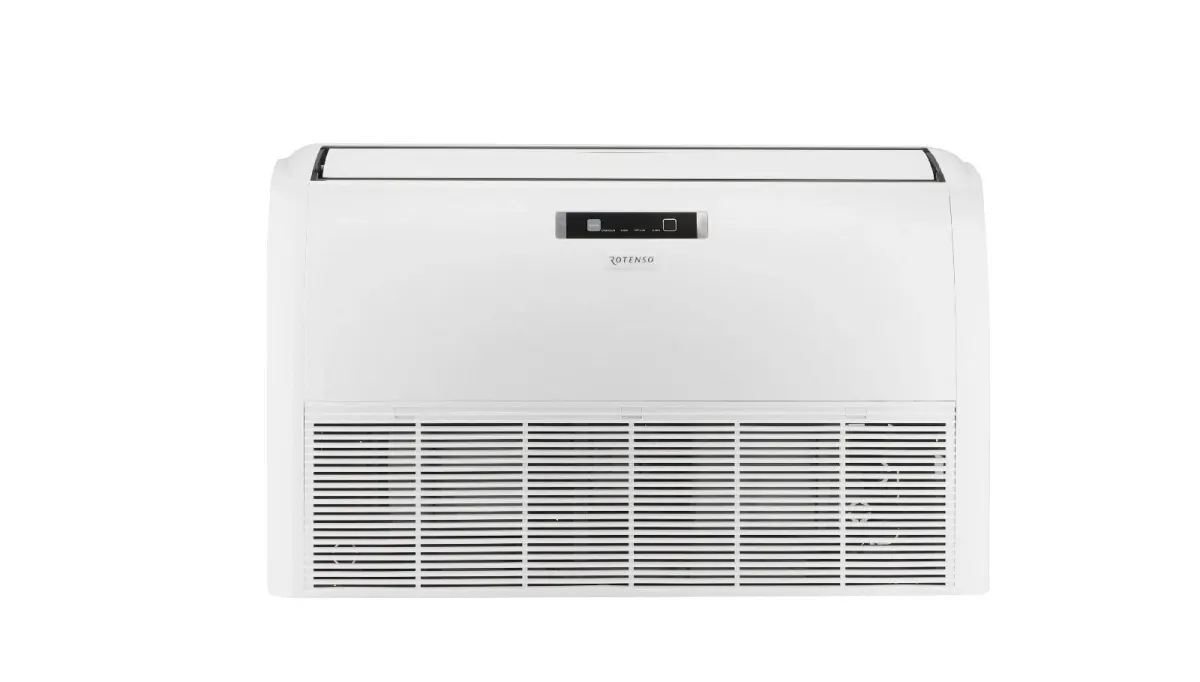

Rotenso Jato

Jednostka wewnętrzna · przypodłogowy

Kod produktu: J160Xi · EAN: 5905567601866

PrzypodłogowyTyp
15,2 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm1050 r/min
Indoor fan speed low rpm850 r/min
Indoor fan speed medium rpm950 r/min
Indoor fan speed turbo rpm1350 r/min
Noise pressure indoor cool max dB(A)53 dBA
Noise pressure indoor cool min dB(A)36 dBA
Noise pressure indoor medium dB(A)42 dBA
Sound power indoor dB(A)70 dBA

airflow_indoor

Airflow indoor high m3h1950 m3h
Airflow indoor low m3h1650 m3h

capacity

Dehumidification l h5,5 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm755 mm
Dim height indoor gross mm318 mm
Dim width indoor gross mm1725 mm

electrical

Current cool max a11 A
Current cool min a1,9 A
Current cool nominal a10 A
Current heat max a10,7 A
Current heat min a1,9 A
Current heat nominal a10 A
Phase count3 szt
Power input cool max w6500 W
Power input cool min w1100 W
Power input cool nominal w5900 W
Power input heat max w6350 W
Power input heat min w1120 W
Power input heat nominal w5950 W
Voltage supply max v420 V
Voltage supply min v380 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)50 dBA
Noise pressure indoor low dB(A)36 dBA
Noise pressure indoor turbo dB(A)53 dBA

performance

Airflow indoor cool max m3h2200 m3h
Airflow indoor medium m3h1800 m3h
Airflow indoor turbo m3h2200 m3h
Dim depth indoor net mm675 mm
Dim height indoor net mm235 mm
Dim width indoor net mm1650 mm
Weight indoor gross kg49,2 kg
Weight indoor net kg42,3 kg

power_indoor

Current indoor nominal a0,9 A
Power input indoor nominal w200 W
