Rotenso Jato
Rotenso

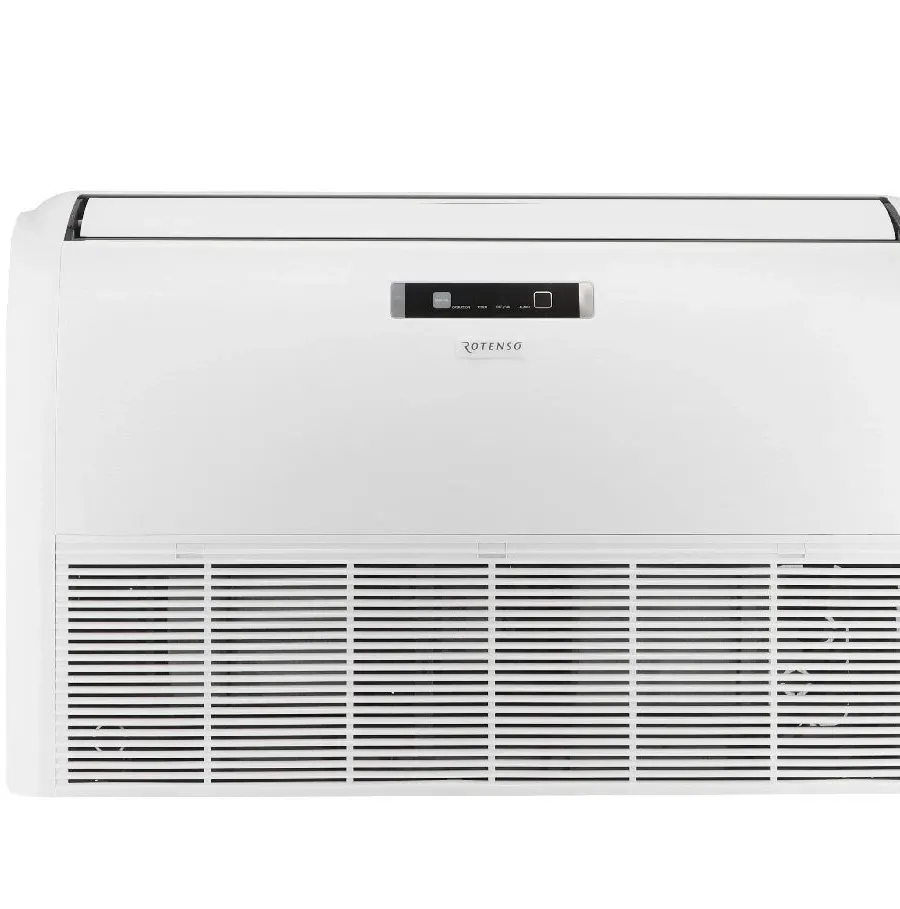

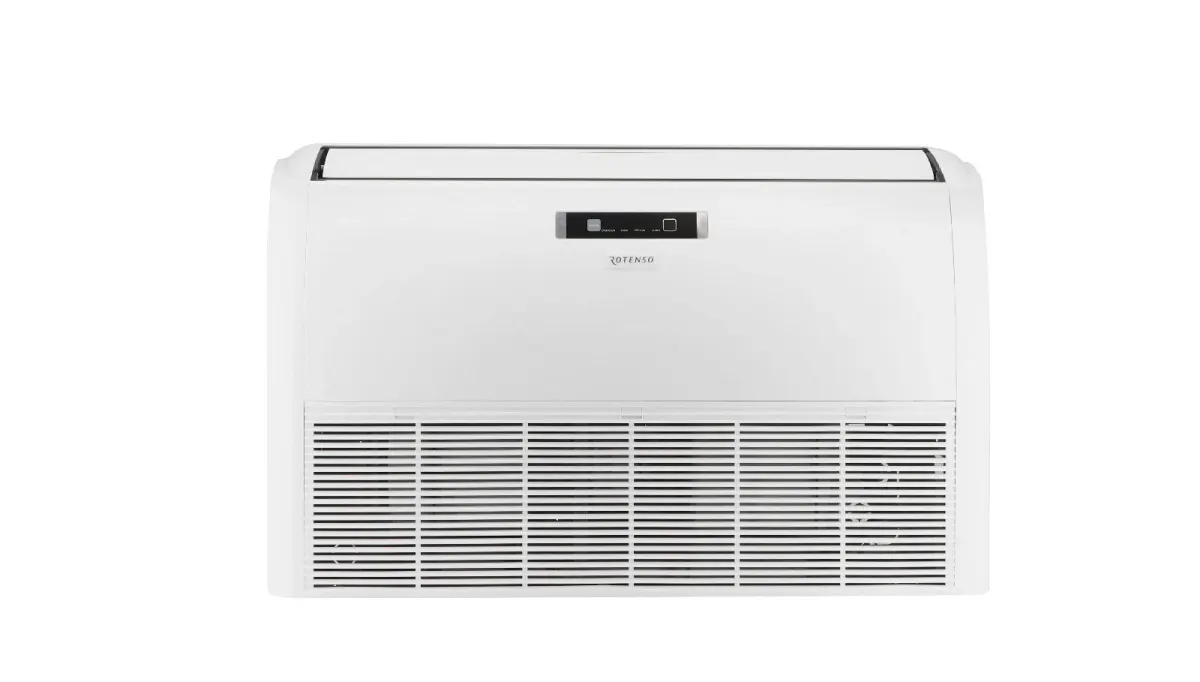

Rotenso Jato

Jednostka wewnętrzna · przypodłogowy

Kod produktu: J140Xi · EAN: 5905567601859

PrzypodłogowyTyp
14,1 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm1200 r/min
Indoor fan speed low rpm1100 r/min
Indoor fan speed medium rpm1150 r/min
Indoor fan speed turbo rpm1300 r/min
Noise pressure indoor cool max dB(A)51 dBA
Noise pressure indoor cool min dB(A)35 dBA
Noise pressure indoor medium dB(A)43 dBA
Sound power indoor dB(A)59 dBA

airflow_indoor

Airflow indoor high m3h1850 m3h
Airflow indoor low m3h1600 m3h

capacity

Dehumidification l h4,8 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm755 mm
Dim height indoor gross mm318 mm
Dim width indoor gross mm1725 mm

electrical

Current cool max a10,5 A
Current cool min a1,5 A
Current cool nominal a8,4 A
Current heat max a10 A
Current heat min a1,6 A
Current heat nominal a8,1 A
Phase count3 szt
Power input cool max w6200 W
Power input cool min w910 W
Power input cool nominal w5000 W
Power input heat max w5950 W
Power input heat min w950 W
Power input heat nominal w4800 W
Voltage supply max v420 V
Voltage supply min v380 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)49 dBA
Noise pressure indoor low dB(A)35 dBA
Noise pressure indoor turbo dB(A)51 dBA

performance

Airflow indoor cool max m3h2100 m3h
Airflow indoor medium m3h1725 m3h
Airflow indoor turbo m3h2100 m3h
Dim depth indoor net mm675 mm
Dim height indoor net mm235 mm
Dim width indoor net mm1650 mm
Weight indoor gross kg48,5 kg
Weight indoor net kg41,7 kg

power_indoor

Current indoor nominal a0,4 A
Power input indoor nominal w96 W
