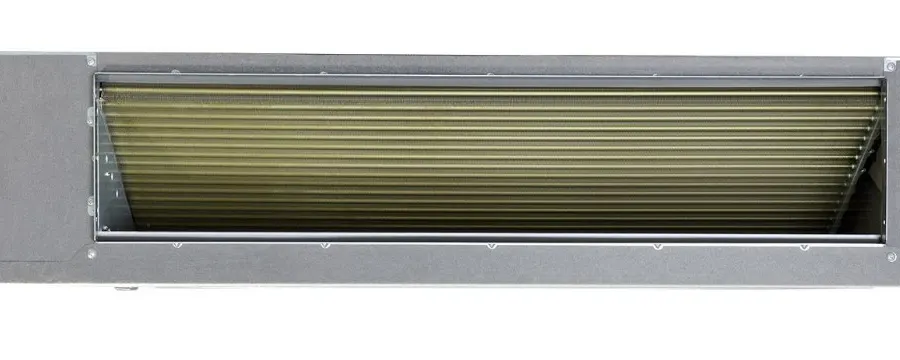

Rotenso Nevo
Rotenso

Rotenso Nevo

Jednostka wewnętrzna · kanałowy

Kod produktu: N70Xi · EAN: 5905567606168

KanałowyTyp
7,1 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm905 r/min
Indoor fan speed low rpm750 r/min
Indoor fan speed medium rpm850 r/min
Indoor fan speed turbo rpm950 r/min
Noise pressure indoor cool max dB(A)33,5 dBA
Noise pressure indoor cool min dB(A)31 dBA
Noise pressure indoor medium dB(A)32 dBA
Sound power indoor dB(A)61 dBA

airflow_indoor

Airflow indoor high m3h1110 m3h
Airflow indoor low m3h700 m3h

capacity

Dehumidification l h1,9 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm860 mm
Dim height indoor gross mm304 mm
Dim width indoor gross mm1225 mm

electrical

Current cool max a12,4 A
Current cool min a3,3 A
Current cool nominal a9,9 A
Current heat max a10,9 A
Current heat min a2,8 A
Current heat nominal a8,7 A
Phase count1 szt
Power input cool max w2860 W
Power input cool min w750 W
Power input cool nominal w2280 W
Power input heat max w2500 W
Power input heat min w640 W
Power input heat nominal w2000 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)32,5 dBA
Noise pressure indoor low dB(A)31 dBA
Noise pressure indoor turbo dB(A)33,5 dBA

performance

Airflow indoor cool max m3h1200 m3h
Airflow indoor medium m3h1000 m3h
Airflow indoor turbo m3h1200 m3h
Dim depth indoor net mm750 mm
Dim height indoor net mm245 mm
Dim width indoor net mm1000 mm
Static pressure external max pa160 Pa
Static pressure external min pa0 Pa
Static pressure external nominal pa25 Pa
Weight indoor gross kg37,2 kg
Weight indoor net kg31,8 kg

power_indoor

Current indoor nominal a0,7 A
Power input indoor nominal w150 W
