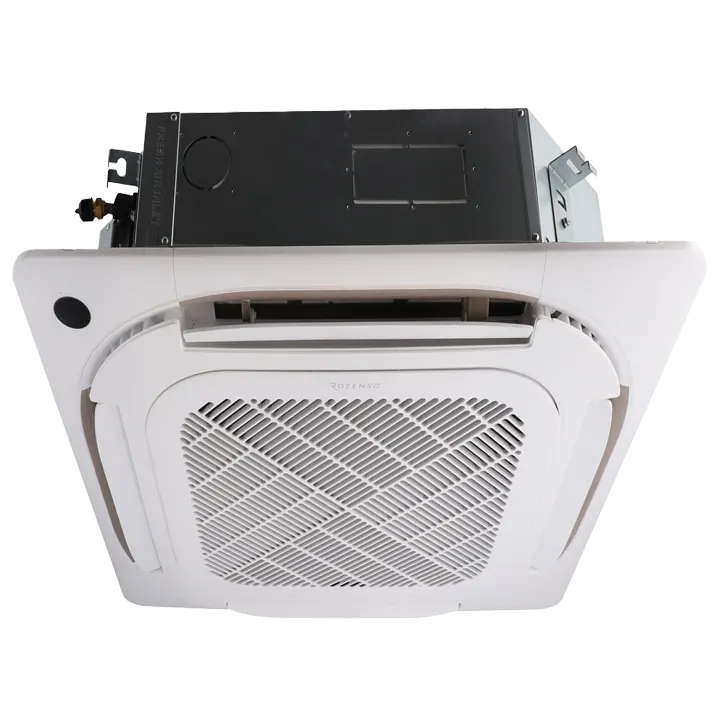

Rotenso Tenji
Rotenso

Rotenso Tenji

Jednostka wewnętrzna · kasetonowy

Kod produktu: T160Xi · EAN: 5905567601781

KasetonowyTyp
15,2 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm672 r/min
Indoor fan speed low rpm608 r/min
Indoor fan speed medium rpm640 r/min
Indoor fan speed turbo rpm736 r/min
Noise pressure indoor cool max dB(A)53 dBA
Noise pressure indoor cool min dB(A)40 dBA
Noise pressure indoor medium dB(A)45,5 dBA
Sound power indoor dB(A)65 dBA

airflow_indoor

Airflow indoor high m3h1850 m3h
Airflow indoor low m3h1650 m3h

capacity

Dehumidification l h5,5 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm910 mm
Dim height indoor gross mm330 mm
Dim width indoor gross mm910 mm

electrical

Current cool max a10,6 A
Current cool min a1,7 A
Current cool nominal a9,6 A
Current heat max a10,7 A
Current heat min a1,7 A
Current heat nominal a9,6 A
Phase count3 szt
Power input cool max w6250 W
Power input cool min w1000 W
Power input cool nominal w5700 W
Power input heat max w6350 W
Power input heat min w1020 W
Power input heat nominal w5700 W
Voltage supply max v420 V
Voltage supply min v380 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)50,5 dBA
Noise pressure indoor low dB(A)40 dBA
Noise pressure indoor turbo dB(A)53 dBA

performance

Airflow indoor cool max m3h2000 m3h
Airflow indoor medium m3h1750 m3h
Airflow indoor turbo m3h2000 m3h
Dim depth indoor net mm830 mm
Dim height indoor net mm287 mm
Dim width indoor net mm830 mm
Weight indoor gross kg33,5 kg
Weight indoor net kg29,3 kg

power_indoor

Current indoor nominal a0,7 A
Power input indoor nominal w157 W
