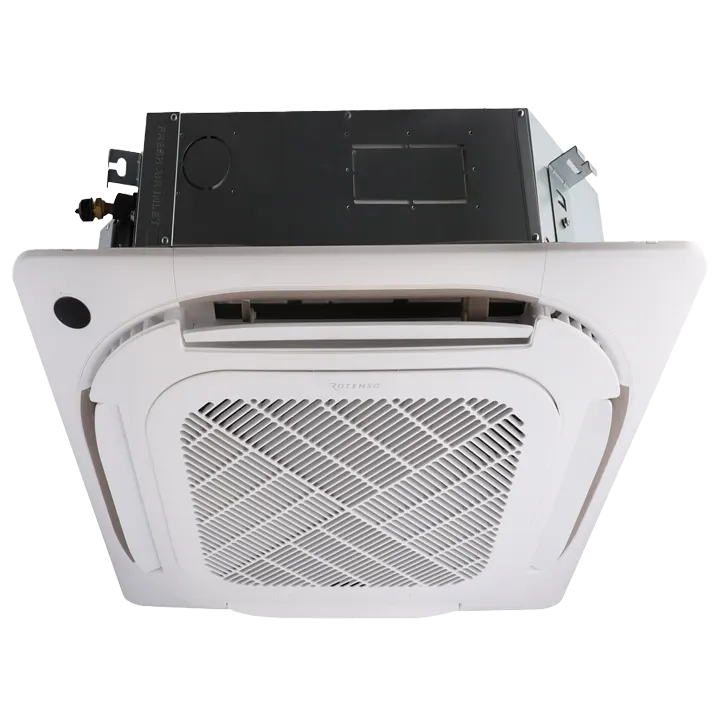

Rotenso Tenji
Rotenso

Rotenso Tenji

Jednostka wewnętrzna · kasetonowy

Kod produktu: T120Xi · EAN: 5905567601767

KasetonowyTyp
12,0 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm648 r/min
Indoor fan speed low rpm584 r/min
Indoor fan speed medium rpm616 r/min
Indoor fan speed turbo rpm712 r/min
Noise pressure indoor cool max dB(A)52,5 dBA
Noise pressure indoor cool min dB(A)40 dBA
Noise pressure indoor medium dB(A)47,5 dBA
Sound power indoor dB(A)65 dBA

airflow_indoor

Airflow indoor high m3h1750 m3h
Airflow indoor low m3h1600 m3h

capacity

Dehumidification l h4,2 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm910 mm
Dim height indoor gross mm330 mm
Dim width indoor gross mm910 mm

electrical

Current cool max a18,9 A
Current cool min a3 A
Current cool nominal a18,3 A
Current heat max a18,5 A
Current heat min a3,3 A
Current heat nominal a16,1 A
Phase count1 szt
Power input cool max w4350 W
Power input cool min w680 W
Power input cool nominal w4200 W
Power input heat max w4250 W
Power input heat min w750 W
Power input heat nominal w3700 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)50 dBA
Noise pressure indoor low dB(A)40 dBA
Noise pressure indoor turbo dB(A)52,5 dBA

performance

Airflow indoor cool max m3h1900 m3h
Airflow indoor medium m3h1670 m3h
Airflow indoor turbo m3h1900 m3h
Dim depth indoor net mm830 mm
Dim height indoor net mm287 mm
Dim width indoor net mm830 mm
Weight indoor gross kg33,5 kg
Weight indoor net kg29,3 kg

power_indoor

Current indoor nominal a0,7 A
Power input indoor nominal w157 W
