Rotenso Tenji
Rotenso

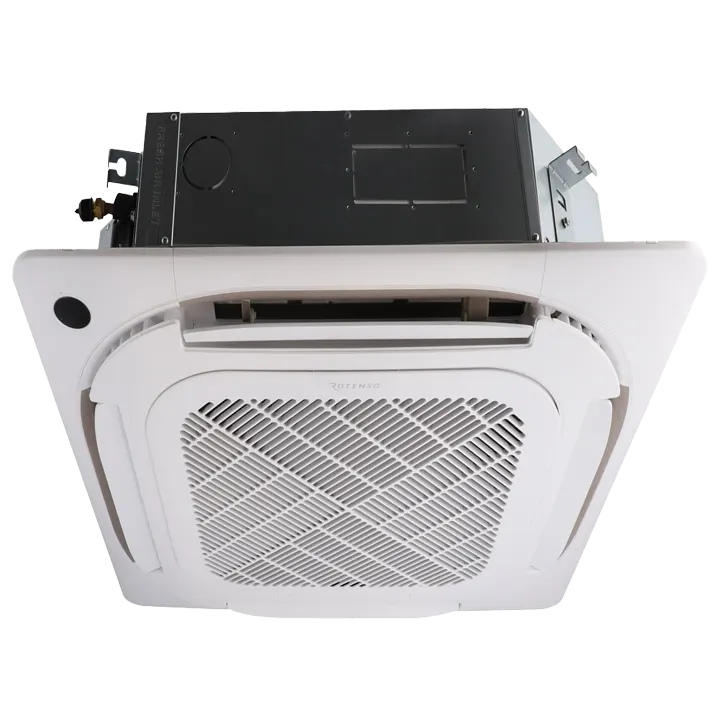

Rotenso Tenji

Jednostka wewnętrzna · kasetonowy

Kod produktu: T100Xi · EAN: 5905567601750

KasetonowyTyp
10,6 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm630 r/min
Indoor fan speed low rpm570 r/min
Indoor fan speed medium rpm600 r/min
Indoor fan speed turbo rpm700 r/min
Noise pressure indoor cool max dB(A)51 dBA
Noise pressure indoor cool min dB(A)39 dBA
Noise pressure indoor medium dB(A)46 dBA
Sound power indoor dB(A)63 dBA

airflow_indoor

Airflow indoor high m3h1530 m3h
Airflow indoor low m3h1300 m3h

capacity

Dehumidification l h3,6 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm910 mm
Dim height indoor gross mm290 mm
Dim width indoor gross mm910 mm

electrical

Current cool max a7 A
Current cool min a1,5 A
Current cool nominal a6,8 A
Current heat max a6,8 A
Current heat min a1,3 A
Current heat nominal a5,1 A
Phase count3 szt
Power input cool max w4150 W
Power input cool min w890 W
Power input cool nominal w4000 W
Power input heat max w4000 W
Power input heat min w780 W
Power input heat nominal w3000 W
Voltage supply max v420 V
Voltage supply min v380 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)49 dBA
Noise pressure indoor low dB(A)39 dBA
Noise pressure indoor turbo dB(A)51 dBA

performance

Airflow indoor cool max m3h1700 m3h
Airflow indoor medium m3h1415 m3h
Airflow indoor turbo m3h1700 m3h
Dim depth indoor net mm830 mm
Dim height indoor net mm245 mm
Dim width indoor net mm830 mm
Weight indoor gross kg31,2 kg
Weight indoor net kg27,2 kg

power_indoor

Current indoor nominal a0,7 A
Power input indoor nominal w157 W
