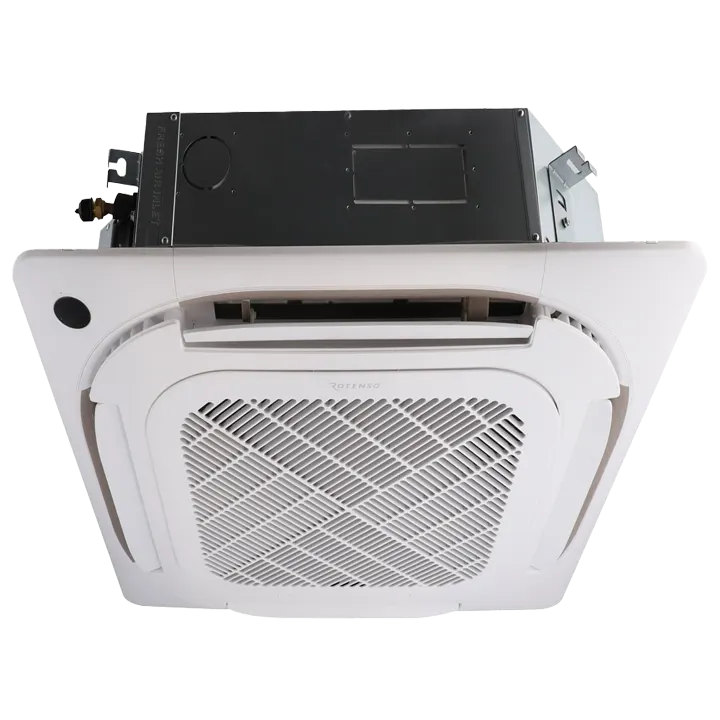

Rotenso Tenji
Rotenso

Rotenso Tenji

Jednostka wewnętrzna · kasetonowy

Kod produktu: T90Xi · EAN: 5905567601743

KasetonowyTyp
8,8 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm600 r/min
Indoor fan speed low rpm550 r/min
Indoor fan speed medium rpm575 r/min
Indoor fan speed turbo rpm660 r/min
Noise pressure indoor cool max dB(A)50,5 dBA
Noise pressure indoor cool min dB(A)40 dBA
Noise pressure indoor medium dB(A)46 dBA
Sound power indoor dB(A)63 dBA

airflow_indoor

Airflow indoor high m3h1530 m3h
Airflow indoor low m3h1300 m3h

capacity

Dehumidification l h3 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm910 mm
Dim height indoor gross mm290 mm
Dim width indoor gross mm910 mm

electrical

Current cool max a13 A
Current cool min a0,8 A
Current cool nominal a12 A
Current heat max a11,1 A
Current heat min a1,9 A
Current heat nominal a10,7 A
Phase count1 szt
Power input cool max w3000 W
Power input cool min w190 W
Power input cool nominal w2750 W
Power input heat max w2550 W
Power input heat min w430 W
Power input heat nominal w2450 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)48 dBA
Noise pressure indoor low dB(A)40 dBA
Noise pressure indoor turbo dB(A)50,5 dBA

performance

Airflow indoor cool max m3h1700 m3h
Airflow indoor medium m3h1415 m3h
Airflow indoor turbo m3h1700 m3h
Dim depth indoor net mm830 mm
Dim height indoor net mm245 mm
Dim width indoor net mm830 mm
Weight indoor gross kg28,6 kg
Weight indoor net kg24,6 kg

power_indoor

Current indoor nominal a0,7 A
Power input indoor nominal w157 W
