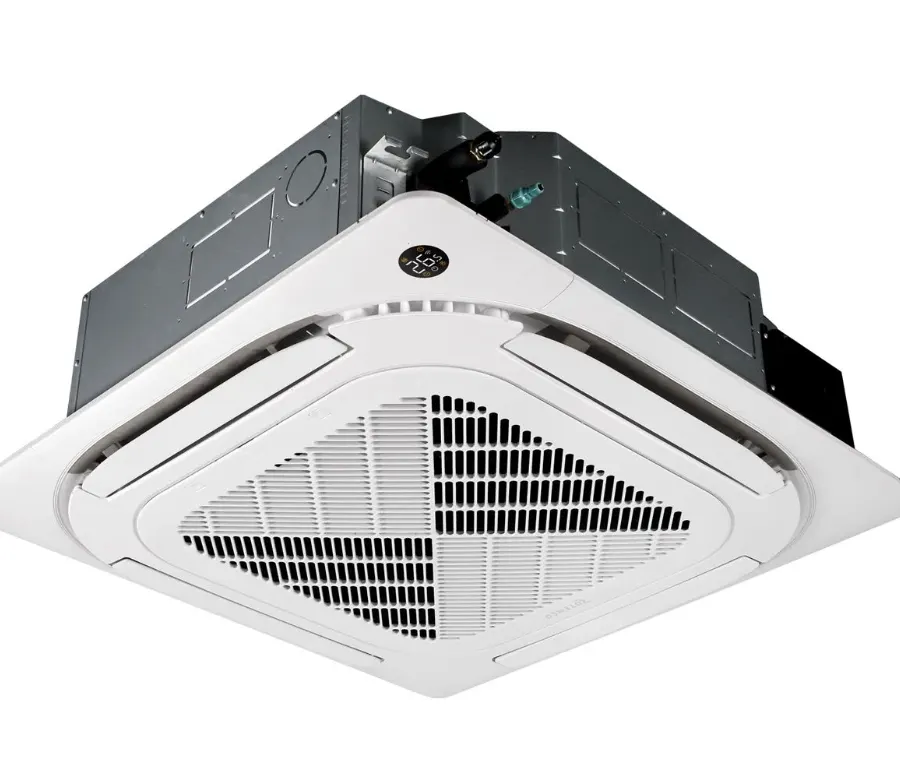

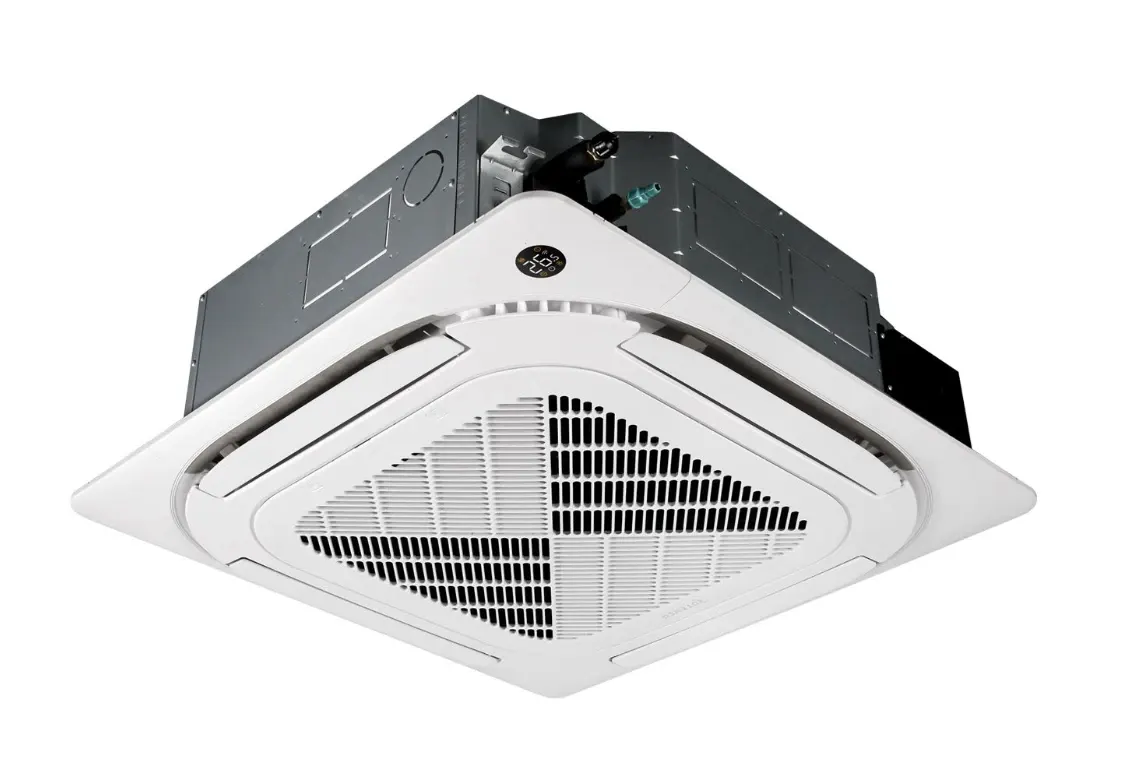

Rotenso Tenji
Rotenso

Rotenso Tenji

Jednostka wewnętrzna · kasetonowy

Kod produktu: T70Xi · EAN: 5905567601736

KasetonowyTyp
7,0 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm552 r/min
Indoor fan speed low rpm496 r/min
Indoor fan speed medium rpm524 r/min
Indoor fan speed turbo rpm608 r/min
Noise pressure indoor cool max dB(A)45 dBA
Noise pressure indoor cool min dB(A)27,5 dBA
Noise pressure indoor medium dB(A)37 dBA
Sound power indoor dB(A)57 dBA

airflow_indoor

Airflow indoor high m3h1118 m3h
Airflow indoor low m3h992 m3h

capacity

Dehumidification l h2,4 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm910 mm
Dim height indoor gross mm250 mm
Dim width indoor gross mm910 mm

electrical

Current cool max a11,9 A
Current cool min a3,4 A
Current cool nominal a10,1 A
Current heat max a10 A
Current heat min a2,7 A
Current heat nominal a8,3 A
Phase count1 szt
Power input cool max w2750 W
Power input cool min w780 W
Power input cool nominal w2320 W
Power input heat max w2300 W
Power input heat min w610 W
Power input heat nominal w1900 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)42,5 dBA
Noise pressure indoor low dB(A)27,5 dBA
Noise pressure indoor turbo dB(A)45 dBA

performance

Airflow indoor cool max m3h1247 m3h
Airflow indoor medium m3h1054 m3h
Airflow indoor turbo m3h1247 m3h
Dim depth indoor net mm830 mm
Dim height indoor net mm205 mm
Dim width indoor net mm830 mm
Weight indoor gross kg25,4 kg
Weight indoor net kg21,6 kg

power_indoor

Current indoor nominal a0,3 A
Power input indoor nominal w64 W
