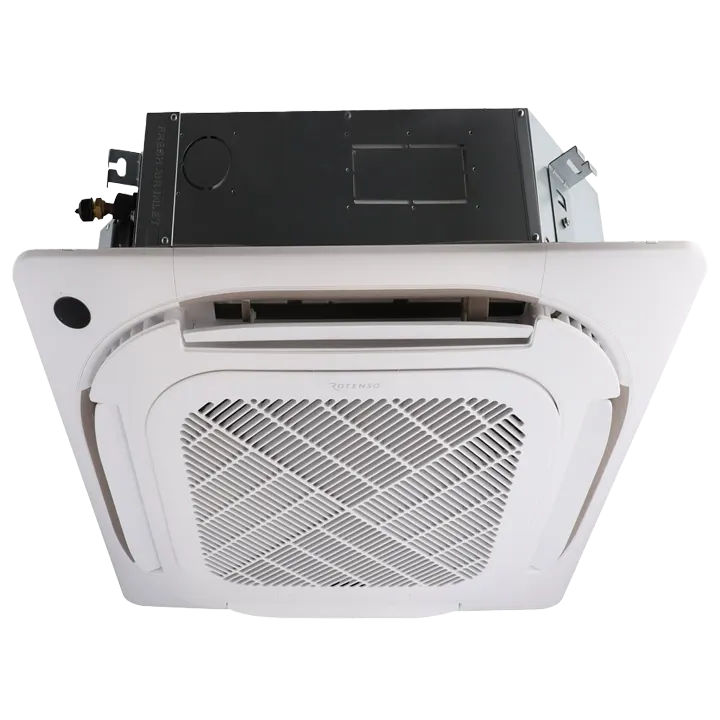

Rotenso Tenji
Rotenso

Rotenso Tenji

Jednostka wewnętrzna · kasetonowy

Kod produktu: T35Xi · EAN: 5905567606274

KasetonowyTyp
3,5 kWChłodzenie

Dane techniczne

acoustic

Indoor fan speed high rpm800 r/min
Indoor fan speed low rpm700 r/min
Indoor fan speed medium rpm750 r/min
Indoor fan speed turbo rpm850 r/min
Noise pressure indoor cool max dB(A)42 dBA
Noise pressure indoor cool min dB(A)25,5 dBA
Noise pressure indoor medium dB(A)31,5 dBA
Sound power indoor dB(A)56 dBA

airflow_indoor

Airflow indoor high m3h520 m3h
Airflow indoor low m3h330 m3h

capacity

Dehumidification l h1,2 l/h

construction

Condensate drain diameter mm25 mm

dim_gross_indoor

Dim depth indoor gross mm640 mm
Dim height indoor gross mm295 mm
Dim width indoor gross mm715 mm

electrical

Current cool max a6,3 A
Current cool min a0,7 A
Current cool nominal a4,4 A
Current heat max a6 A
Current heat min a0,5 A
Current heat nominal a4,4 A
Phase count1 szt
Power input cool max w1450 W
Power input cool min w160 W
Power input cool nominal w1015 W
Power input heat max w1390 W
Power input heat min w125 W
Power input heat nominal w1020 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Pipe diameter gas mm9,52 mm
Pipe diameter liquid mm6,35 mm

noise_indoor

Noise pressure indoor high dB(A)38,5 dBA
Noise pressure indoor low dB(A)25,5 dBA
Noise pressure indoor turbo dB(A)42 dBA

performance

Airflow indoor cool max m3h620 m3h
Airflow indoor medium m3h430 m3h
Airflow indoor turbo m3h620 m3h
Dim depth indoor net mm570 mm
Dim height indoor net mm245 mm
Dim width indoor net mm570 mm
Weight indoor gross kg18,8 kg
Weight indoor net kg16,1 kg

power_indoor

Current indoor nominal a0,2 A
Power input indoor nominal w40 W
