Rotenso

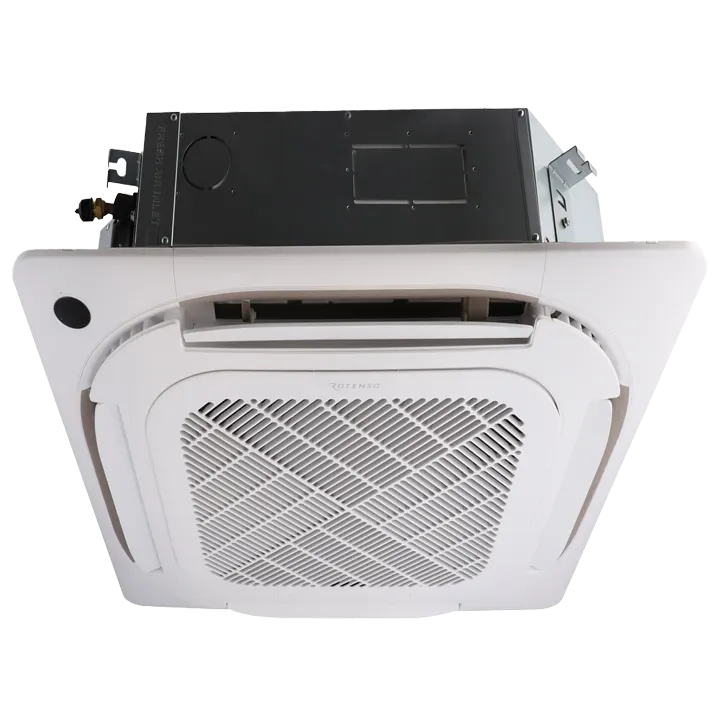

Rotenso Tenji
Jednostka wewnętrzna · kasetonowy
Kod produktu: T26Xi · EAN: 5905567606267
KasetonowyTyp
Dane techniczne
acoustic
| Indoor fan speed high rpm | 770 r/min |
|---|---|
| Indoor fan speed low rpm | 680 r/min |
| Indoor fan speed medium rpm | 730 r/min |
| Indoor fan speed turbo rpm | 840 r/min |
| Noise pressure indoor cool max dB(A) | 41 dBA |
| Noise pressure indoor cool min dB(A) | 24,5 dBA |
| Noise pressure indoor medium dB(A) | 30,5 dBA |
| Sound power indoor dB(A) | 55 dBA |
airflow_indoor
| Airflow indoor high m3h | 500 m3h |
|---|---|
| Airflow indoor low m3h | 320 m3h |
construction
| Condensate drain diameter mm | 25 mm |
|---|
dim_gross_indoor
| Dim depth indoor gross mm | 640 mm |
|---|---|
| Dim height indoor gross mm | 295 mm |
| Dim width indoor gross mm | 715 mm |
electrical
| Phase count | 1 szt |
|---|---|
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Pipe diameter gas mm | 9,52 mm |
|---|---|
| Pipe diameter liquid mm | 6,35 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 37 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 24,5 dBA |
| Noise pressure indoor turbo dB(A) | 41 dBA |
performance
| Airflow indoor cool max m3h | 610 m3h |
|---|---|
| Airflow indoor medium m3h | 415 m3h |
| Airflow indoor turbo m3h | 610 m3h |
| Dim depth indoor net mm | 570 mm |
| Dim height indoor net mm | 245 mm |
| Dim width indoor net mm | 570 mm |
| Weight indoor gross kg | 18,8 kg |
| Weight indoor net kg | 16,1 kg |
power_indoor
| Current indoor nominal a | 0,2 A |
|---|---|
| Power input indoor nominal w | 40 W |
