Panasonic

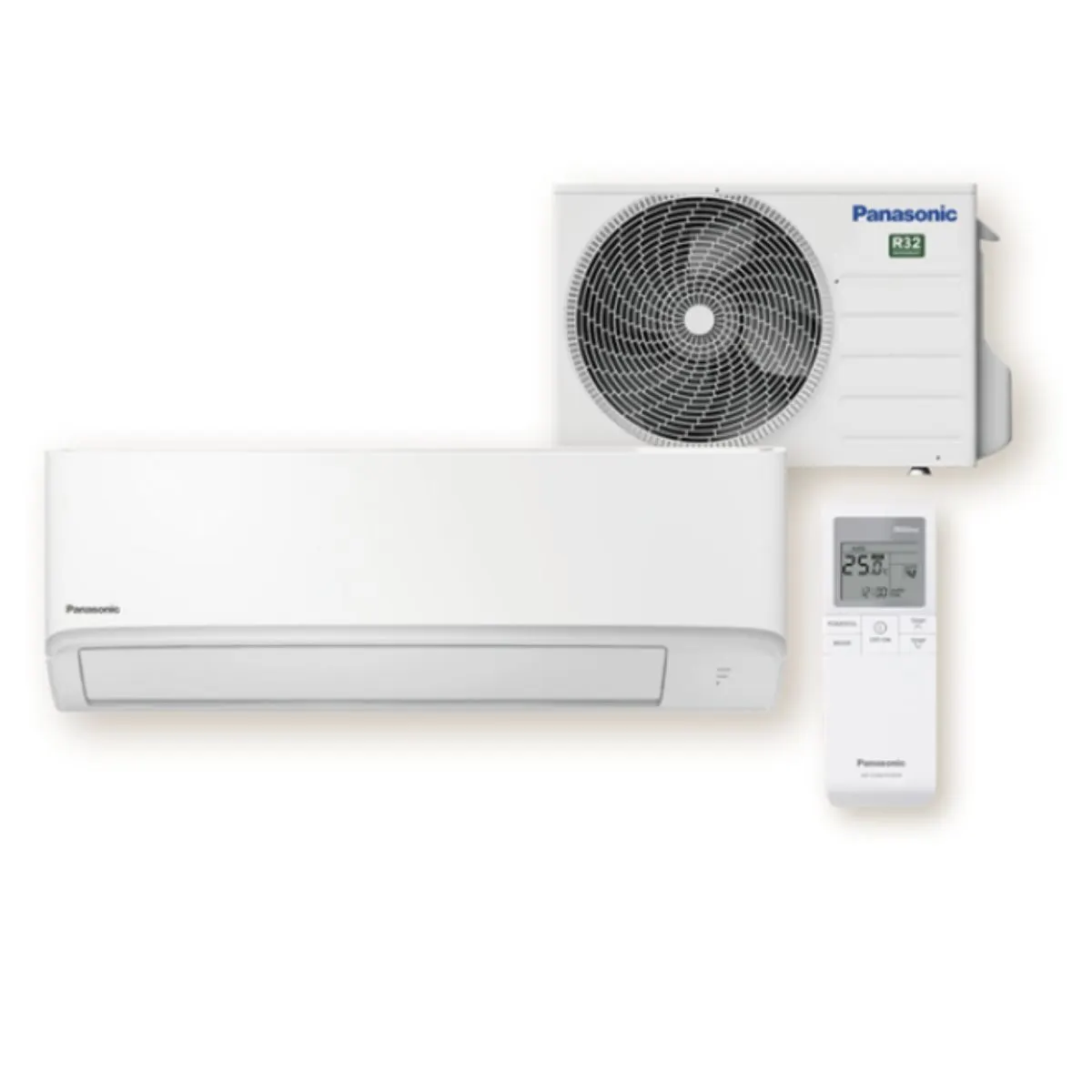

Panasonic TZ super-compact Inverter+
Jednostka wewnętrzna · ścienny
Kod produktu: CS-TZ60CKEW
ŚciennyTyp
6,0 kWChłodzenie
34 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor cool max dB(A) | 45 dBA |
|---|---|
| Noise pressure indoor cool min dB(A) | 37 dBA |
| Noise pressure indoor silent dB(A) | 34 dBA |
| Sound power indoor dB(A) | 61 dBA |
capacity
| Capacity heat nominal kW | 8,5 (w ukladzie Free Multi (agregaty CU-xZxxCBE); wyjatki wg przypisow cennika: jedn. 3,5 kW z CU-2Z35CBE 4,20 kW, jedn. 5,0 kW z CU-2Z50CBE 5,00 kW) kW |
|---|
electrical
| Phase count | 1 szt |
|---|---|
| Voltage supply max v | 230 V |
| Voltage supply min v | 230 V |
hydraulic
| Pipe diameter gas mm | 12,7 mm |
|---|---|
| Pipe diameter liquid mm | 6,35 mm |
performance
| Dim depth indoor net mm | 249 mm |
|---|---|
| Dim height indoor net mm | 295 mm |
| Dim width indoor net mm | 1060 mm |
| Weight indoor net kg | 14 kg |
