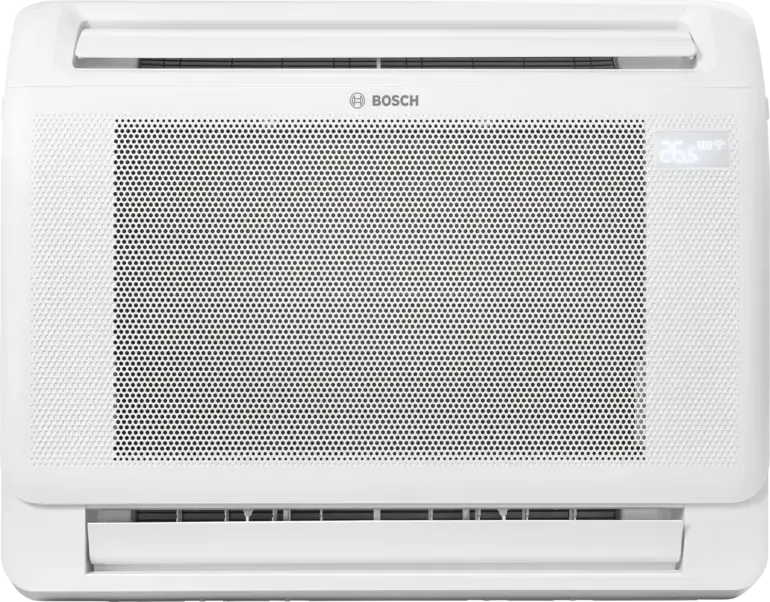

Bosch Climate 5000 L CN
Bosch

Bosch Climate 5000 L CN

Jednostka wewnętrzna · konsola

Kod produktu: CL5000iU CN 53 E

KonsolaTyp
5,0 kWChłodzenie

Dane techniczne

acoustic

Noise pressure indoor max dB(A)41 dBA
Noise pressure indoor medium dB(A)38 dBA
Noise pressure indoor min dB(A)32 dBA
Sound power indoor dB(A)55 dBA

commercial

Controller typeStandardowy przewodowy i bezprzewodowy enum_marker

electrical

Current cool max a8,7 A
Current cool min a2,95 A
Current cool nominal a6,7 A
Current heat max a8,5 A
Current heat min a2,75 A
Current heat nominal a6,4 A
Frequency supply hz50 Hz
Phase count1 szt
Power input cool max w1950 W
Power input cool min w650 W
Power input cool nominal w1500 W
Power input heat max w1900 W
Power input heat min w600 W
Power input heat nominal w1420 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Condensate pipe outer diameter mm25 mm
Pipe diameter gas inch1/2 enum_marker
Pipe diameter gas mm12,7 mm
Pipe diameter liquid inch1/4 enum_marker
Pipe diameter liquid mm6,35 mm

performance

Airflow indoor max m3h780 m3h
Airflow indoor medium m3h690 m3h
Airflow indoor min m3h600 m3h
Dim depth indoor net mm206 mm
Dim depth indoor packaging mm280 mm
Dim height indoor net mm621 mm
Dim height indoor packaging mm719 mm
Dim width indoor net mm794 mm
Dim width indoor packaging mm865 mm
Weight indoor gross kg18,8 kg
Weight indoor net kg14,9 kg
