Bosch

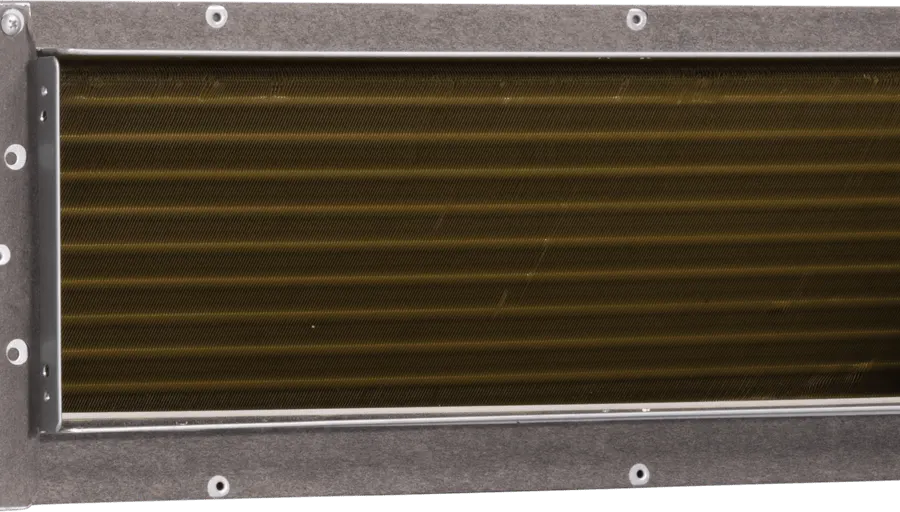

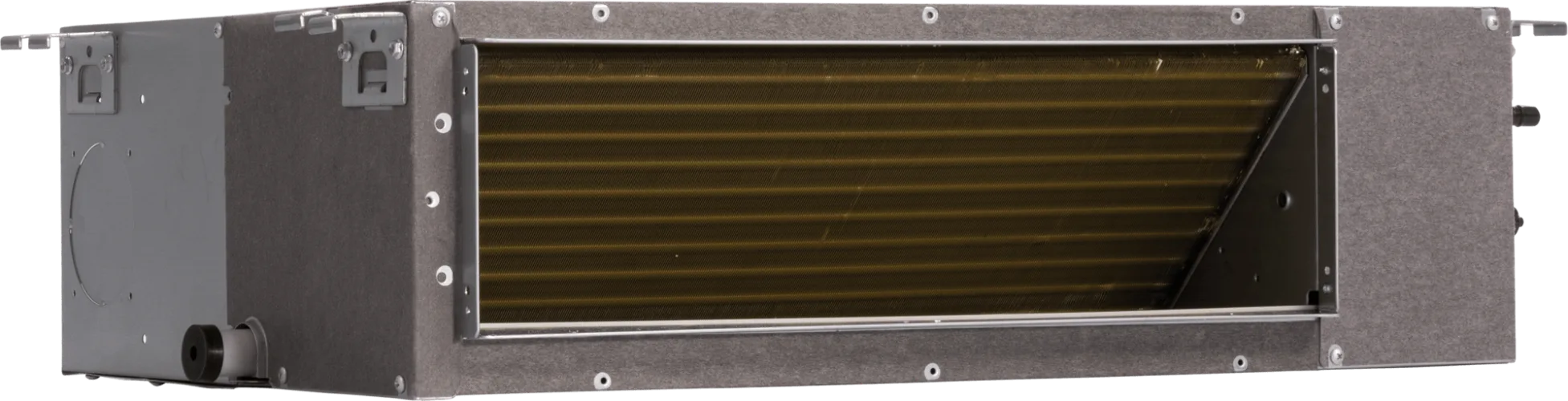

Bosch Climate 5000 L D
Jednostka wewnętrzna · kanałowy
Kod produktu: CL5000iL D 88 E
KanałowyTyp
8,8 kWChłodzenie
41 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor max dB(A) | 50,5 dBA |
|---|---|
| Noise pressure indoor medium dB(A) | 48 dBA |
| Noise pressure indoor min dB(A) | 46 dBA |
| Noise pressure indoor silent dB(A) | 41 dBA |
| Sound power indoor dB(A) | 64 dBA |
commercial
| Controller type | Standardowy przewodowy i bezprzewodowy enum_marker |
|---|
electrical
| Current cool max a | 13,5 A |
|---|---|
| Current cool min a | 2 A |
| Current cool nominal a | 11 A |
| Current heat max a | 10,7 A |
| Current heat min a | 3 A |
| Current heat nominal a | 10 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool max w | 3050 W |
| Power input cool min w | 190 W |
| Power input cool nominal w | 2500 W |
| Power input heat max w | 2450 W |
| Power input heat min w | 430 W |
| Power input heat nominal w | 2250 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe outer diameter mm | 25 mm |
|---|---|
| Pipe diameter gas inch | 5/8 enum_marker |
| Pipe diameter gas mm | 15,9 mm |
| Pipe diameter liquid inch | 3/8 enum_marker |
| Pipe diameter liquid mm | 9,52 mm |
performance
| Airflow indoor max m3h | 2100 m3h |
|---|---|
| Airflow indoor medium m3h | 1800 m3h |
| Airflow indoor min m3h | 1500 m3h |
| Dim depth indoor net mm | 774 mm |
| Dim depth indoor packaging mm | 805 mm |
| Dim height indoor net mm | 249 mm |
| Dim height indoor packaging mm | 320 mm |
| Dim width indoor net mm | 1360 mm |
| Dim width indoor packaging mm | 1570 mm |
| Static pressure external max pa | 160 Pa |
| Static pressure external min pa | 0 Pa |
| Static pressure external nominal pa | 37 Pa |
| Weight indoor gross kg | 48,3 kg |
| Weight indoor net kg | 40,5 kg |
