Bosch

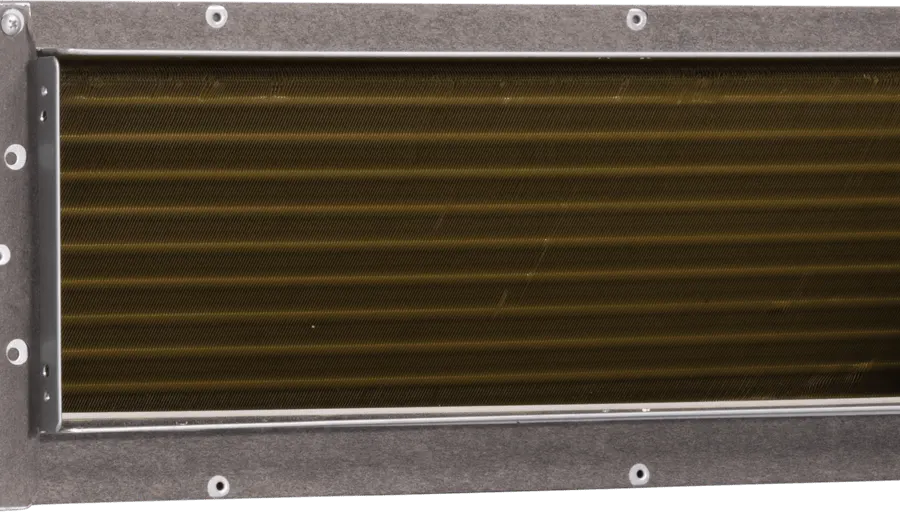

Bosch Climate 5000 L D
Jednostka wewnętrzna · kanałowy
Kod produktu: CL5000iU D 53 E
KanałowyTyp
5,3 kWChłodzenie
29 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor max dB(A) | 42 dBA |
|---|---|
| Noise pressure indoor medium dB(A) | 39 dBA |
| Noise pressure indoor min dB(A) | 35 dBA |
| Noise pressure indoor silent dB(A) | 29 dBA |
| Sound power indoor dB(A) | 58 dBA |
commercial
| Controller type | Standardowy przewodowy i bezprzewodowy enum_marker |
|---|
electrical
| Current cool max a | 9,56 A |
|---|---|
| Current cool min a | 3,2 A |
| Current cool nominal a | 7,1 A |
| Current heat max a | 7,7 A |
| Current heat min a | 3,3 A |
| Current heat nominal a | 6,8 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool max w | 2150 W |
| Power input cool min w | 710 W |
| Power input cool nominal w | 1530 W |
| Power input heat max w | 1760 W |
| Power input heat min w | 740 W |
| Power input heat nominal w | 1510 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe outer diameter mm | 25 mm |
|---|---|
| Pipe diameter gas inch | 1/2 enum_marker |
| Pipe diameter gas mm | 12,7 mm |
| Pipe diameter liquid inch | 1/4 enum_marker |
| Pipe diameter liquid mm | 6,35 mm |
performance
| Airflow indoor max m3h | 911 m3h |
|---|---|
| Airflow indoor medium m3h | 706 m3h |
| Airflow indoor min m3h | 515 m3h |
| Dim depth indoor net mm | 674 mm |
| Dim depth indoor packaging mm | 725 mm |
| Dim height indoor net mm | 210 mm |
| Dim height indoor packaging mm | 270 mm |
| Dim width indoor net mm | 880 mm |
| Dim width indoor packaging mm | 1070 mm |
| Static pressure external max pa | 100 Pa |
| Static pressure external min pa | 0 Pa |
| Static pressure external nominal pa | 25 Pa |
| Weight indoor gross kg | 29,6 kg |
| Weight indoor net kg | 24,4 kg |
