Bosch

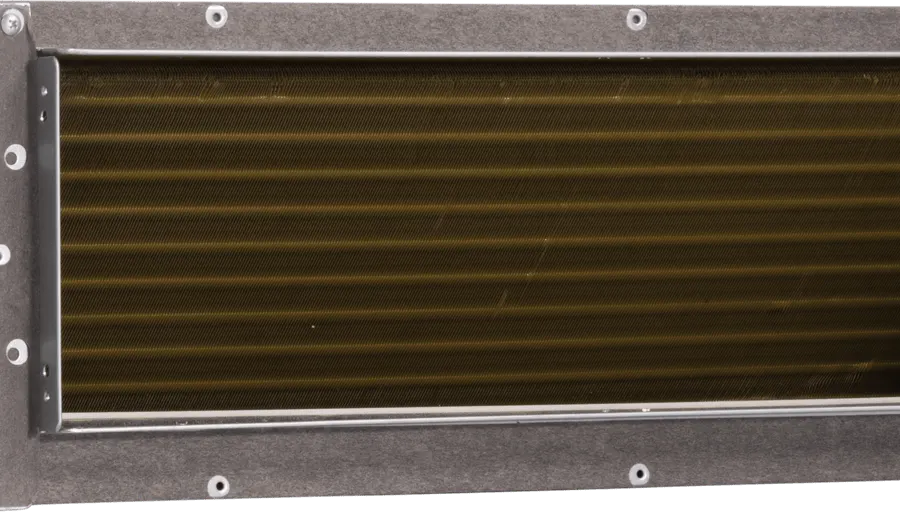

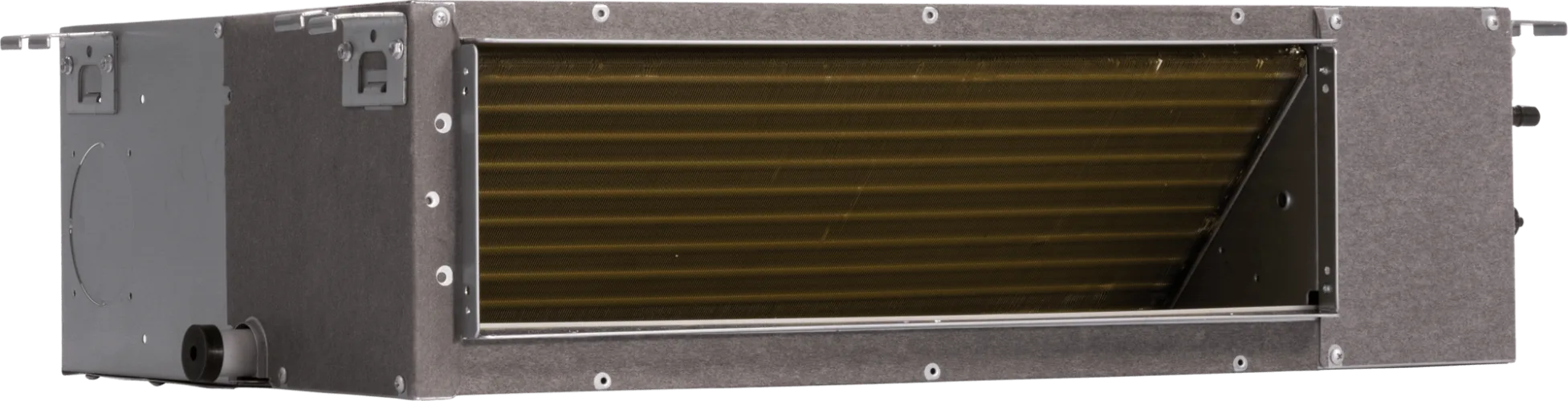

Bosch Climate 5000 L D
Jednostka wewnętrzna · kanałowy
Kod produktu: CL5000iU D 35 E
KanałowyTyp
3,5 kWChłodzenie
28 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor max dB(A) | 34,5 dBA |
|---|---|
| Noise pressure indoor medium dB(A) | 32 dBA |
| Noise pressure indoor min dB(A) | 30 dBA |
| Noise pressure indoor silent dB(A) | 28 dBA |
| Sound power indoor dB(A) | 58 dBA |
commercial
| Controller type | Standardowy przewodowy i bezprzewodowy enum_marker |
|---|
electrical
| Current cool max a | 6,09 A |
|---|---|
| Current cool min a | 1,3 A |
| Current cool nominal a | 4,75 A |
| Current heat max a | 6,15 A |
| Current heat min a | 1,48 A |
| Current heat nominal a | 4,52 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool max w | 1373 W |
| Power input cool min w | 155 W |
| Power input cool nominal w | 1053 W |
| Power input heat max w | 1390 W |
| Power input heat min w | 302 W |
| Power input heat nominal w | 1038 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe outer diameter mm | 25 mm |
|---|---|
| Pipe diameter gas inch | 3/8 enum_marker |
| Pipe diameter gas mm | 9,52 mm |
| Pipe diameter liquid inch | 1/4 enum_marker |
| Pipe diameter liquid mm | 6,35 mm |
performance
| Airflow indoor max m3h | 600 m3h |
|---|---|
| Airflow indoor medium m3h | 480 m3h |
| Airflow indoor min m3h | 300 m3h |
| Dim depth indoor net mm | 506 mm |
| Dim depth indoor packaging mm | 540 mm |
| Dim height indoor net mm | 200 mm |
| Dim height indoor packaging mm | 275 mm |
| Dim width indoor net mm | 700 mm |
| Dim width indoor packaging mm | 1070 mm |
| Static pressure external max pa | 60 Pa |
| Static pressure external min pa | 0 Pa |
| Static pressure external nominal pa | 25 Pa |
| Weight indoor gross kg | 21,5 kg |
| Weight indoor net kg | 17,8 kg |
