Bosch

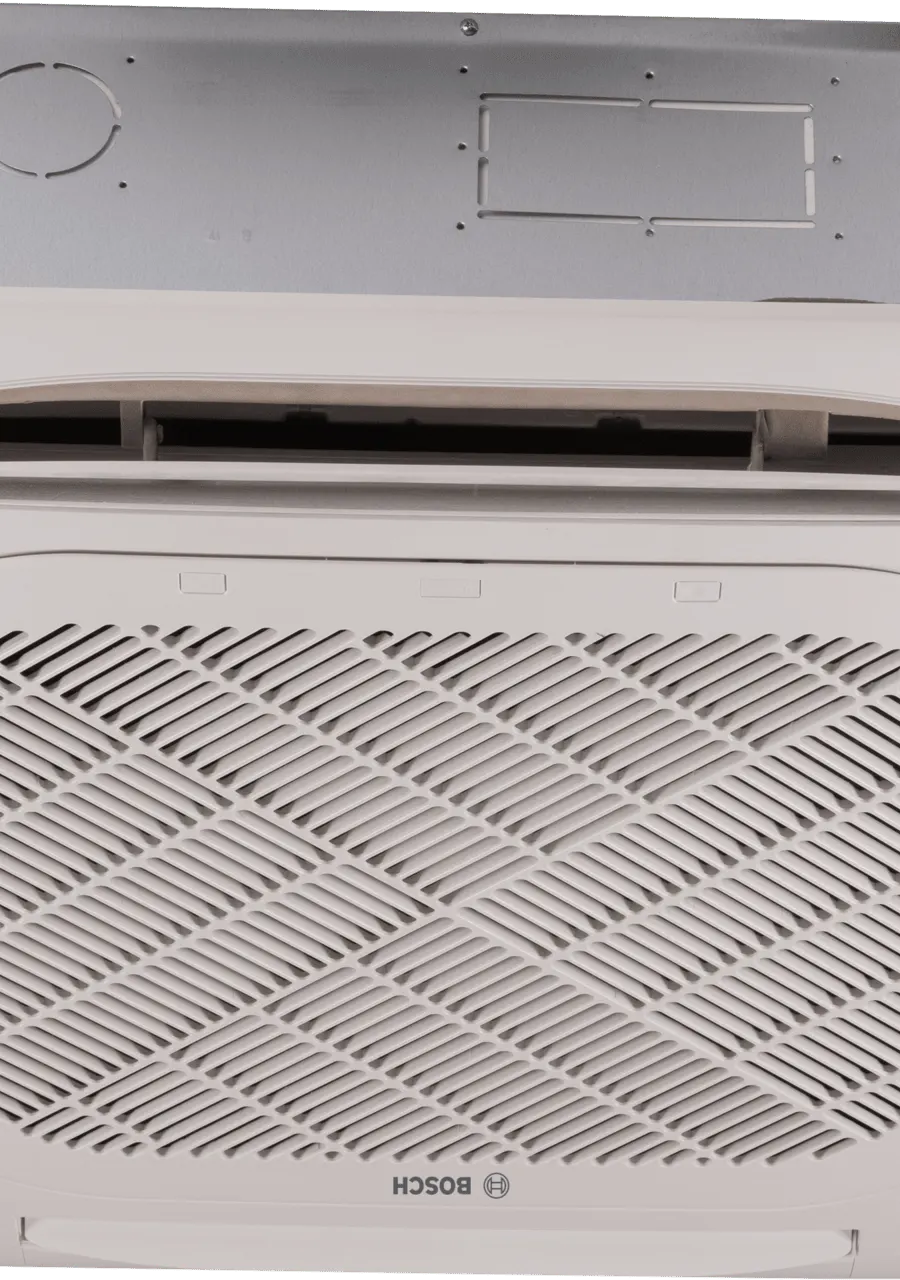

Bosch Climate 5000 L 4C
Jednostka wewnętrzna · kasetonowy
Kod produktu: CL5000iL 4C 140 E
KasetonowyTyp
14,0 kWChłodzenie
42 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor max dB(A) | 52,5 dBA |
|---|---|
| Noise pressure indoor medium dB(A) | 50,5 dBA |
| Noise pressure indoor min dB(A) | 48 dBA |
| Noise pressure indoor silent dB(A) | 41,5 dBA |
| Sound power indoor dB(A) | 66 dBA |
commercial
| Controller type | Standardowy bezprzewodowy enum_marker |
|---|
electrical
| Current cool max a | 10,2 A |
|---|---|
| Current cool min a | 1,8 A |
| Current cool nominal a | 8,1 A |
| Current heat max a | 9,5 A |
| Current heat min a | 1,9 A |
| Current heat nominal a | 8 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool max w | 5900 W |
| Power input cool min w | 800 W |
| Power input cool nominal w | 4650 W |
| Power input heat max w | 5500 W |
| Power input heat min w | 900 W |
| Power input heat nominal w | 4580 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe outer diameter mm | 25 mm |
|---|---|
| Pipe diameter gas inch | 5/8 enum_marker |
| Pipe diameter gas mm | 15,9 mm |
| Pipe diameter liquid inch | 3/8 enum_marker |
| Pipe diameter liquid mm | 9,52 mm |
performance
| Airflow indoor max m3h | 1900 m3h |
|---|---|
| Airflow indoor medium m3h | 1750 m3h |
| Airflow indoor min m3h | 1600 m3h |
| Dim depth indoor net mm | 830 mm |
| Dim depth indoor packaging mm | 910 mm |
| Dim height indoor net mm | 287 mm |
| Dim height indoor packaging mm | 330 mm |
| Dim width indoor net mm | 830 mm |
| Dim width indoor packaging mm | 910 mm |
| Weight indoor gross kg | 33,5 kg |
| Weight indoor net kg | 29,3 kg |
