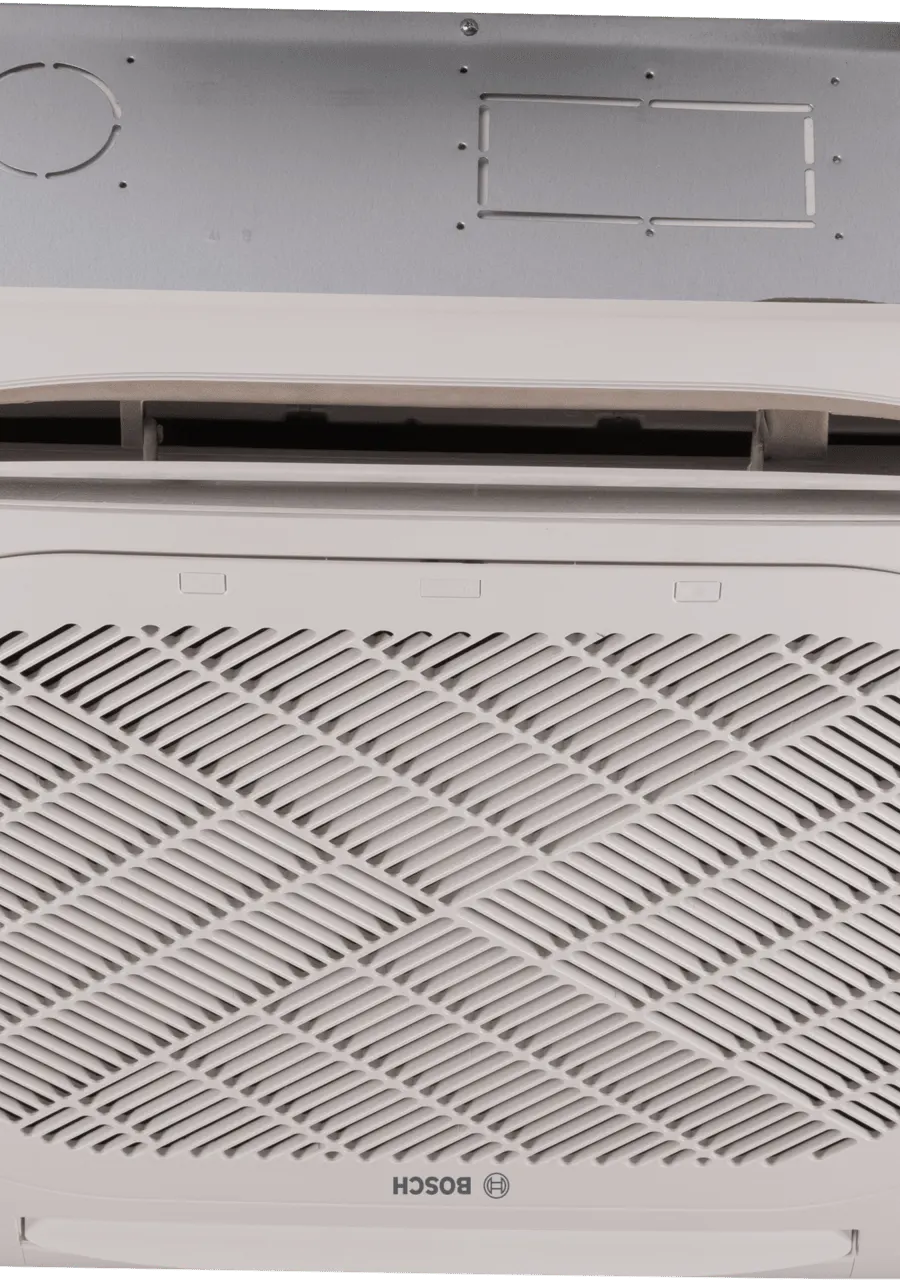

Bosch Climate 5000 L 4C
Bosch

Bosch Climate 5000 L 4C

Jednostka wewnętrzna · kasetonowy

Kod produktu: CL5000iL 4C 125 E

KasetonowyTyp
12,1 kWChłodzenie
42 dBHałas (cichy)

Dane techniczne

acoustic

Noise pressure indoor max dB(A)52,5 dBA
Noise pressure indoor medium dB(A)50 dBA
Noise pressure indoor min dB(A)47,5 dBA
Noise pressure indoor silent dB(A)41,5 dBA
Sound power indoor dB(A)66 dBA

commercial

Controller typeStandardowy bezprzewodowy enum_marker

electrical

Current cool max a19,1 A
Current cool min a3,1 A
Current cool nominal a18,8 A
Current heat max a19 A
Current heat min a3,4 A
Current heat nominal a16,3 A
Frequency supply hz50 Hz
Phase count1 szt
Power input cool max w4350 W
Power input cool min w680 W
Power input cool nominal w4200 W
Power input heat max w4250 W
Power input heat min w750 W
Power input heat nominal w3700 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Condensate pipe outer diameter mm25 mm
Pipe diameter gas inch5/8 enum_marker
Pipe diameter gas mm15,9 mm
Pipe diameter liquid inch3/8 enum_marker
Pipe diameter liquid mm9,52 mm

performance

Airflow indoor max m3h1900 m3h
Airflow indoor medium m3h1750 m3h
Airflow indoor min m3h1600 m3h
Dim depth indoor net mm830 mm
Dim depth indoor packaging mm910 mm
Dim height indoor net mm287 mm
Dim height indoor packaging mm330 mm
Dim width indoor net mm830 mm
Dim width indoor packaging mm910 mm
Weight indoor gross kg33,5 kg
Weight indoor net kg29,3 kg
