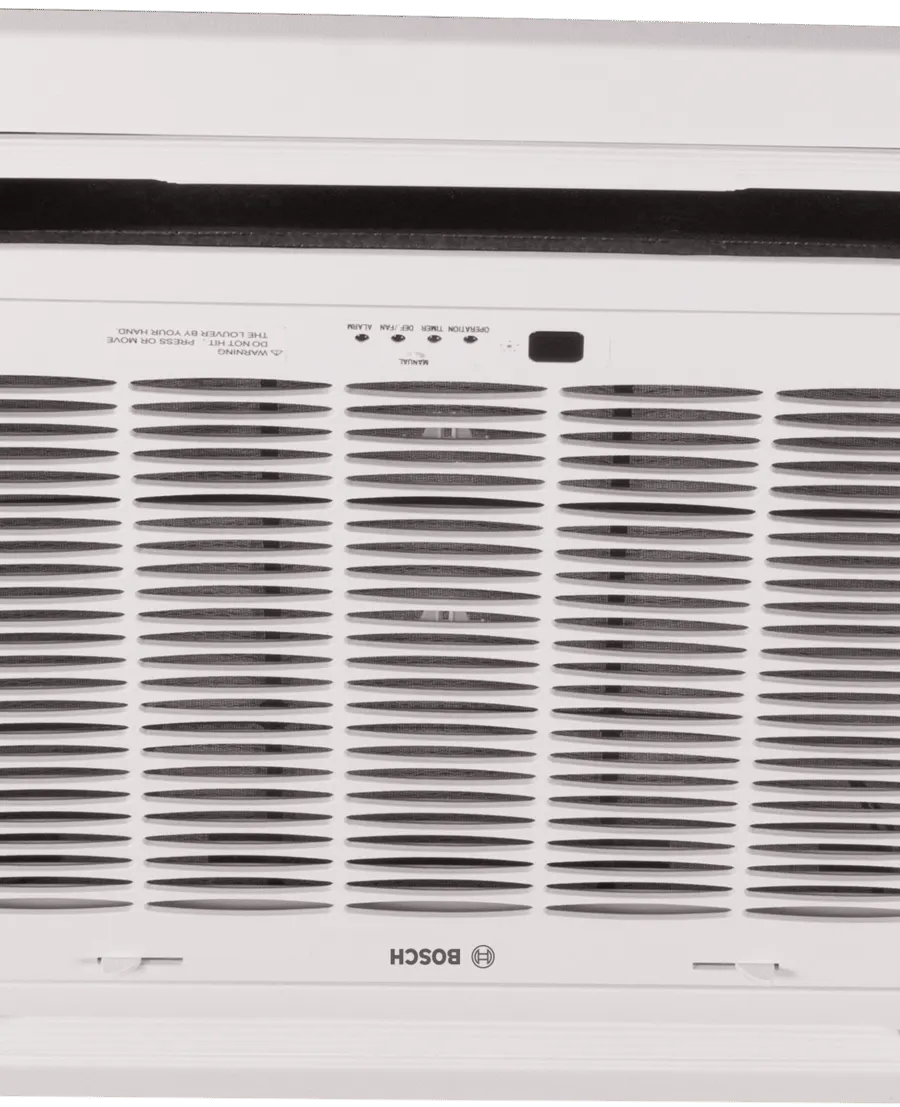

Bosch Climate 5000 L 4CC
Bosch

Bosch Climate 5000 L 4CC

Jednostka wewnętrzna · kasetonowy

Kod produktu: CL5000iU 4CC 53 E

KasetonowyTyp
5,3 kWChłodzenie
32 dBHałas (cichy)

Dane techniczne

acoustic

Noise pressure indoor max dB(A)45,4 dBA
Noise pressure indoor medium dB(A)44 dBA
Noise pressure indoor min dB(A)39 dBA
Noise pressure indoor silent dB(A)31,6 dBA
Sound power indoor dB(A)59 dBA

commercial

Controller typeStandardowy bezprzewodowy enum_marker

electrical

Current cool max a9,2 A
Current cool min a3,2 A
Current cool nominal a7,2 A
Current heat max a8,5 A
Current heat min a3,1 A
Current heat nominal a6,8 A
Frequency supply hz50 Hz
Phase count1 szt
Power input cool max w2088 W
Power input cool min w720 W
Power input cool nominal w1633 W
Power input heat max w1930 W
Power input heat min w700 W
Power input heat nominal w1540 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Condensate pipe outer diameter mm25 mm
Pipe diameter gas inch1/2 enum_marker
Pipe diameter gas mm12,7 mm
Pipe diameter liquid inch1/4 enum_marker
Pipe diameter liquid mm6,35 mm

performance

Airflow indoor max m3h680 m3h
Airflow indoor medium m3h584 m3h
Airflow indoor min m3h479 m3h
Dim depth indoor net mm570 mm
Dim depth indoor packaging mm670 mm
Dim height indoor net mm260 mm
Dim height indoor packaging mm325 mm
Dim width indoor net mm570 mm
Dim width indoor packaging mm670 mm
Weight indoor gross kg20,6 kg
Weight indoor net kg16 kg
