Fujitsu

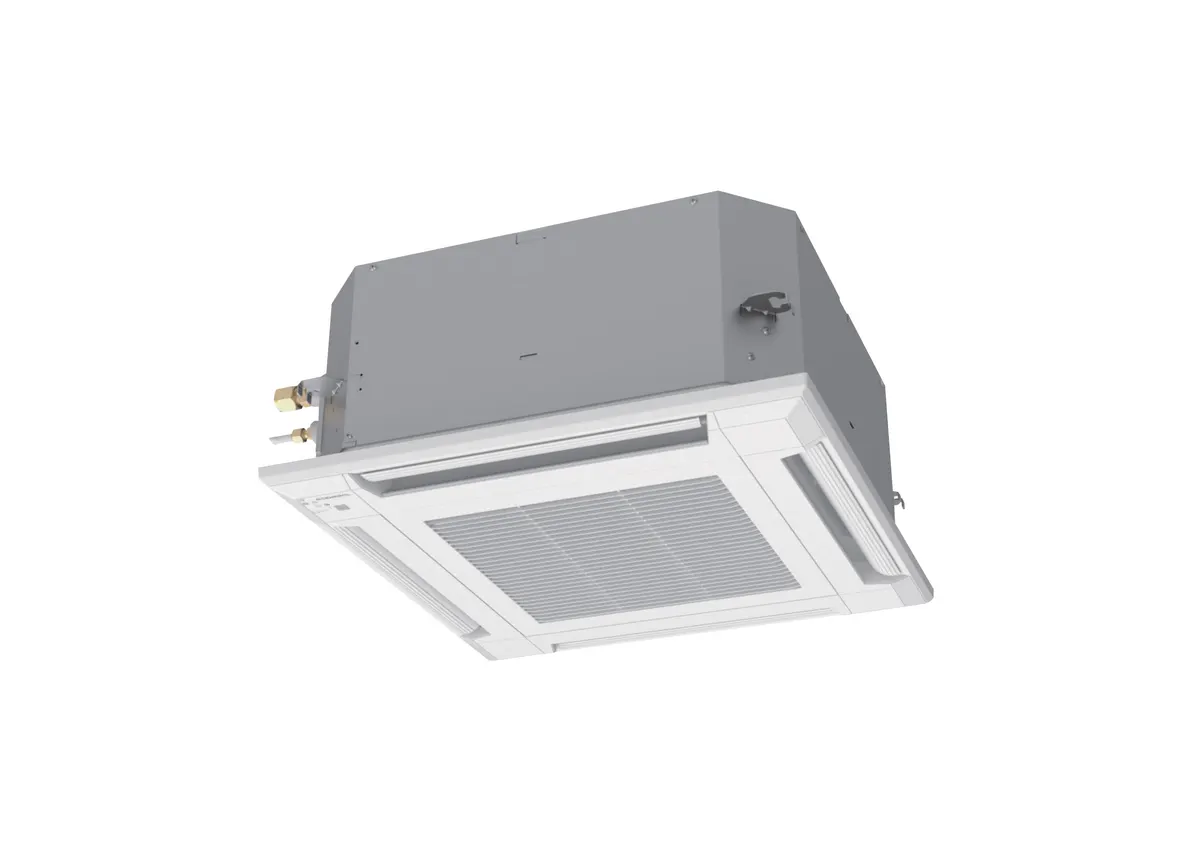

Fujitsu KVLA
Jednostka wewnętrzna · kasetonowy
Kod produktu: AUXG14KVLA
KasetonowyTyp
4,3 kWChłodzenie
27 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor medium dB(A) | 34 dBA |
|---|---|
| Noise pressure indoor silent dB(A) | 27 dBA |
| Sound power indoor dB(A) | 50 dBA |
capacity
| Dehumidification l h | 1,5 l/h |
|---|
construction
| Condensate drain diameter mm | 25 mm |
|---|
electrical
| Current cool max a | 10,2 A |
|---|---|
| Current heat max a | 10,2 A |
| Power input cool nominal w | 1280 W |
| Power input heat nominal w | 1320 W |
hydraulic
| Condensate pipe inner diameter mm | 25 mm |
|---|---|
| Condensate pipe outer diameter mm | 32 mm |
| Pipe diameter gas mm | 9,52 mm |
| Pipe diameter liquid mm | 6,35 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 38 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 30 dBA |
performance
| Airflow indoor cool max m3h | 680 m3h |
|---|---|
| Airflow indoor heat max m3h | 800 m3h |
| Dim depth indoor net mm | 570 mm |
| Dim height indoor net mm | 245 mm |
| Dim width indoor net mm | 570 mm |
| Weight indoor net kg | 15 kg |
