Fujitsu

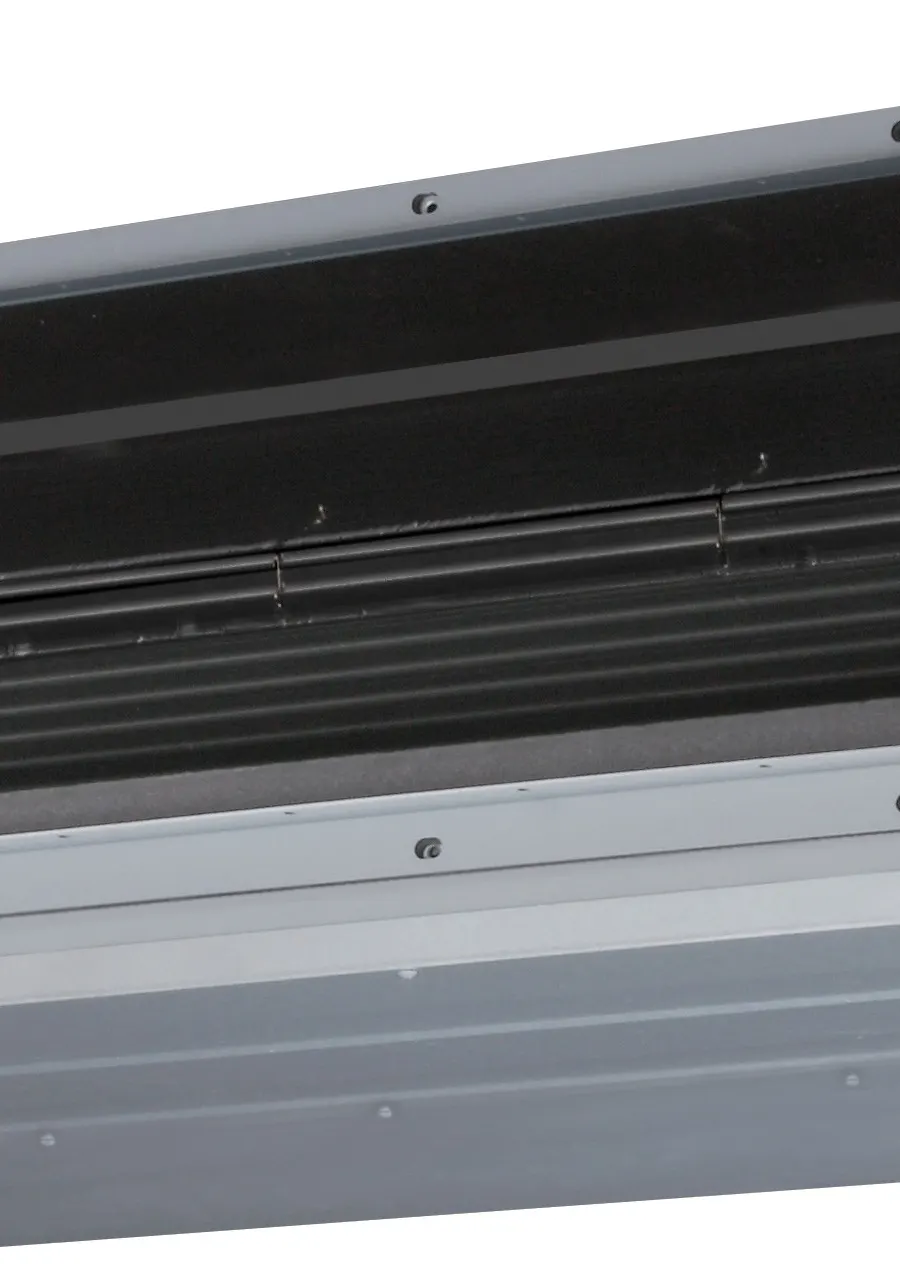

Fujitsu KMTAP
Jednostka wewnętrzna · kanałowy
Kod produktu: ARXH18KMTAP
KanałowyTyp
5,2 kWChłodzenie
26 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor medium dB(A) | 30 dBA |
|---|---|
| Noise pressure indoor silent dB(A) | 26 dBA |
| Sound power indoor dB(A) | 60 dBA |
capacity
| Dehumidification l h | 2 l/h |
|---|
construction
| Condensate drain diameter mm | 25 mm |
|---|
electrical
| Current cool max a | 12,1 A |
|---|---|
| Current heat max a | 12,1 A |
| Power input cool nominal w | 1580 W |
| Power input heat nominal w | 1740 W |
hydraulic
| Pipe diameter gas mm | 12,7 mm |
|---|---|
| Pipe diameter liquid mm | 6,35 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 33 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 28 dBA |
performance
| Airflow indoor cool max m3h | 840 m3h |
|---|---|
| Airflow indoor heat max m3h | 840 m3h |
| Dim depth indoor net mm | 700 mm |
| Dim height indoor net mm | 240 mm |
| Dim width indoor net mm | 700 mm |
| Static pressure external max pa | 150 Pa |
| Static pressure external min pa | 30 Pa |
| Static pressure external nominal pa | 40 Pa |
| Weight indoor net kg | 24 kg |
