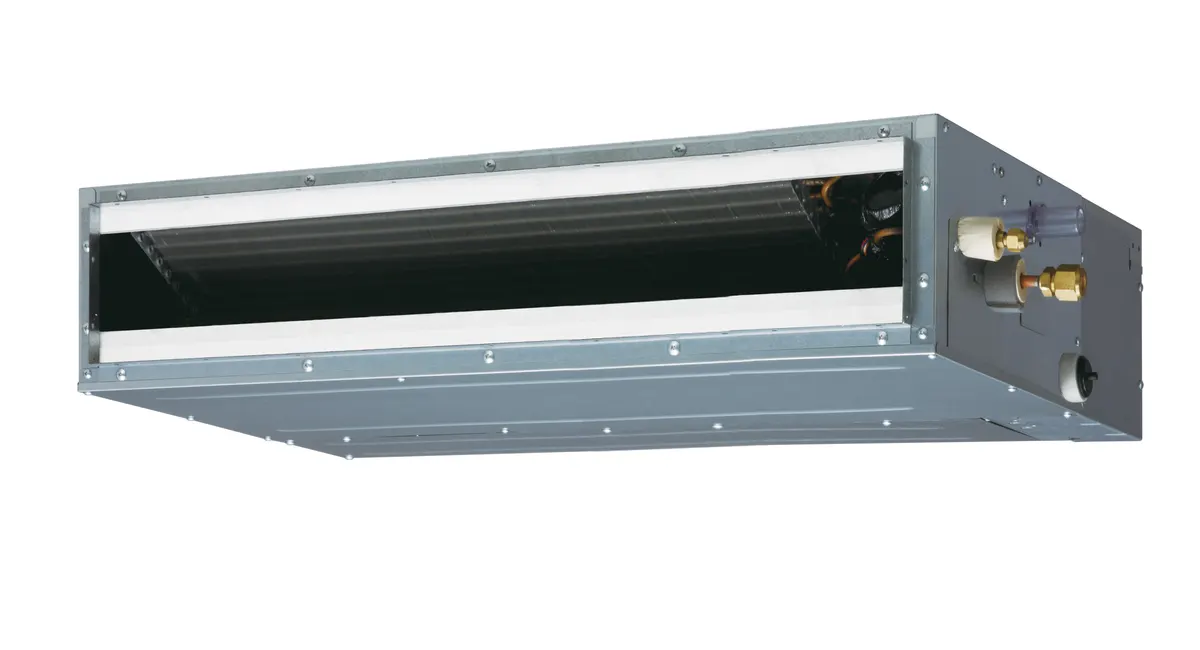

Fujitsu
Fujitsu KLLAP
Jednostka wewnętrzna · kanałowy
Kod produktu: ARXG18KLLAP
KanałowyTyp
5,2 kWChłodzenie
27 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor medium dB(A) | 30 dBA |
|---|---|
| Noise pressure indoor silent dB(A) | 27 dBA |
| Sound power indoor dB(A) | 58 dBA |
capacity
| Dehumidification l h | 2 l/h |
|---|
construction
| Condensate drain diameter mm | 25 mm |
|---|
electrical
| Current cool max a | 12,1 A |
|---|---|
| Current heat max a | 12,1 A |
| Power input cool nominal w | 1550 W |
| Power input heat nominal w | 1620 W |
hydraulic
| Condensate pipe inner diameter mm | 25 mm |
|---|---|
| Condensate pipe outer diameter mm | 32 mm |
| Pipe diameter gas mm | 12,7 mm |
| Pipe diameter liquid mm | 6,35 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 32 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 29 dBA |
performance
| Airflow indoor cool max m3h | 940 m3h |
|---|---|
| Airflow indoor heat max m3h | 940 m3h |
| Dim depth indoor net mm | 620 mm |
| Dim height indoor net mm | 198 mm |
| Dim width indoor net mm | 900 mm |
| Static pressure external max pa | 90 Pa |
| Static pressure external min pa | 0 Pa |
| Static pressure external nominal pa | 25 Pa |
| Weight indoor net kg | 20 kg |
