Fujitsu

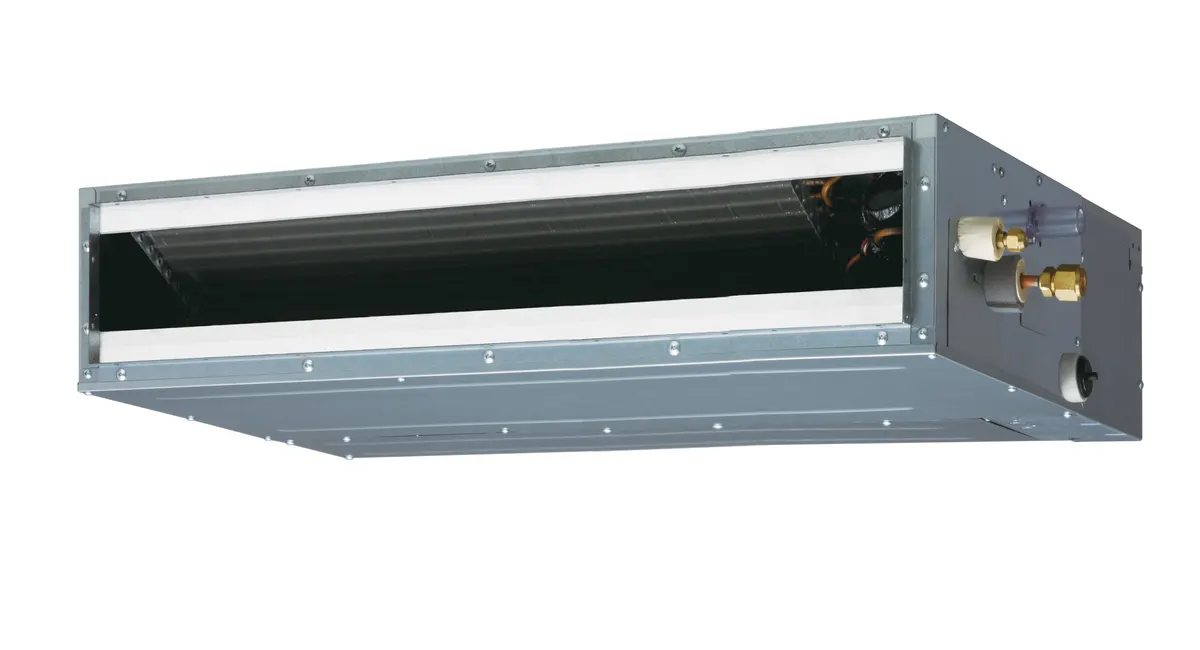

Fujitsu KLLAP
Jednostka wewnętrzna · kanałowy
Kod produktu: ARXG12KLLAP
KanałowyTyp
3,5 kWChłodzenie
25 dBHałas (cichy)
Dane techniczne
acoustic
| Noise pressure indoor medium dB(A) | 28 dBA |
|---|---|
| Noise pressure indoor silent dB(A) | 25 dBA |
| Sound power indoor dB(A) | 58 dBA |
capacity
| Dehumidification l h | 1,3 l/h |
|---|
construction
| Condensate drain diameter mm | 25 mm |
|---|
electrical
| Current cool max a | 9,7 A |
|---|---|
| Current heat max a | 9,7 A |
| Power input cool nominal w | 930 W |
| Power input heat nominal w | 1080 W |
hydraulic
| Condensate pipe inner diameter mm | 25 mm |
|---|---|
| Condensate pipe outer diameter mm | 32 mm |
| Pipe diameter gas mm | 9,52 mm |
| Pipe diameter liquid mm | 6,35 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 29 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 26 dBA |
performance
| Airflow indoor cool max m3h | 650 m3h |
|---|---|
| Airflow indoor heat max m3h | 650 m3h |
| Dim depth indoor net mm | 620 mm |
| Dim height indoor net mm | 198 mm |
| Dim width indoor net mm | 700 mm |
| Static pressure external max pa | 90 Pa |
| Static pressure external min pa | 0 Pa |
| Static pressure external nominal pa | 25 Pa |
| Weight indoor net kg | 17 kg |
