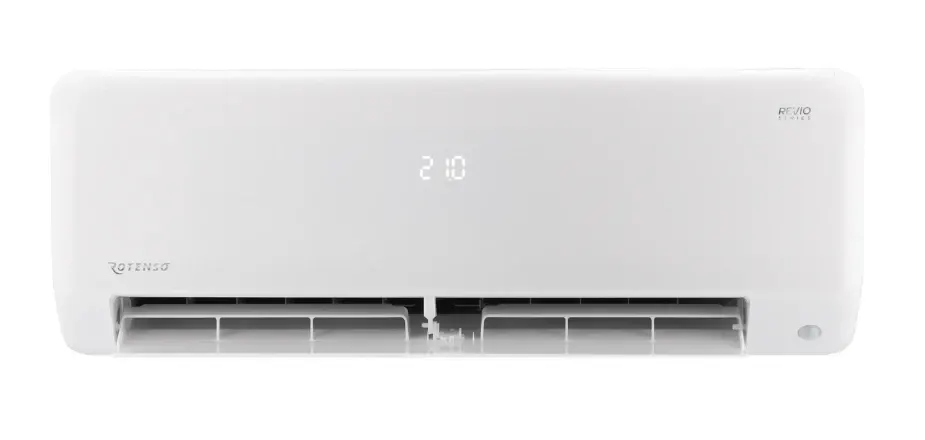

Rotenso Revio
Rotenso

Rotenso Revio

Jednostka wewnętrzna · ścienny

Kod produktu: RO70Xi · EAN: 5905567601156

ŚciennyTyp
7,0 kWChłodzenie
21 dBHałas (cichy)

Dane techniczne

acoustic

Indoor fan speed high rpm1000 r/min
Indoor fan speed low rpm775 r/min
Indoor fan speed medium rpm850 r/min
Indoor fan speed silent rpm700 r/min
Noise pressure indoor cool max dB(A)44,5 dBA
Noise pressure indoor cool min dB(A)21 dBA
Noise pressure indoor medium dB(A)40 dBA
Noise pressure indoor silent dB(A)21 dBA
Sound power indoor dB(A)65 dBA

airflow_indoor

Airflow indoor high m3h1092 m3h
Airflow indoor low m3h552 m3h
Airflow indoor silent m3h379 m3h

capacity

Dehumidification l h2,7 l/h

construction

Condensate drain diameter mm16 mm

dim_gross_indoor

Dim depth indoor gross mm355 mm
Dim height indoor gross mm455 mm
Dim width indoor gross mm1230 mm

electrical

Current cool max a13,9 A
Current cool min a1,8 A
Current cool nominal a7,7 A
Current heat max a13,5 A
Current heat min a1,3 A
Current heat nominal a8,6 A
Phase count1 szt
Power input cool max w3200 W
Power input cool min w420 W
Power input cool nominal w1760 W
Power input heat max w3100 W
Power input heat min w300 W
Power input heat nominal w1975 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Pipe diameter gas mm15,9 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)44,5 dBA
Noise pressure indoor low dB(A)33 dBA

performance

Airflow indoor cool max m3h1092 m3h
Airflow indoor medium m3h724 m3h
Dim depth indoor net mm275 mm
Dim height indoor net mm370 mm
Dim width indoor net mm1140 mm
Weight indoor gross kg25,3 kg
Weight indoor net kg20 kg

power_indoor

Current indoor nominal a0,3 A
Power input indoor nominal w60 W
