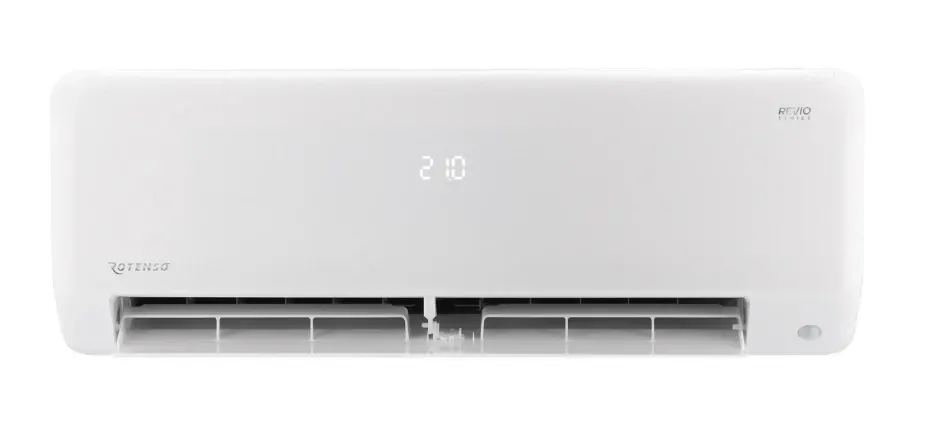

Rotenso Revio
Rotenso

Rotenso Revio

Jednostka wewnętrzna · ścienny

Kod produktu: RO50Xi · EAN: 5905567606229

ŚciennyTyp
5,3 kWChłodzenie
22 dBHałas (cichy)

Dane techniczne

acoustic

Indoor fan speed high rpm1050 r/min
Indoor fan speed low rpm798 r/min
Indoor fan speed medium rpm882 r/min
Indoor fan speed silent rpm714 r/min
Noise pressure indoor cool max dB(A)41 dBA
Noise pressure indoor cool min dB(A)22 dBA
Noise pressure indoor medium dB(A)35 dBA
Noise pressure indoor silent dB(A)22 dBA
Sound power indoor dB(A)59 dBA

airflow_indoor

Airflow indoor high m3h685 m3h
Airflow indoor low m3h490 m3h
Airflow indoor silent m3h400 m3h

capacity

Dehumidification l h1,8 l/h

construction

Condensate drain diameter mm16 mm

dim_gross_indoor

Dim depth indoor gross mm325 mm
Dim height indoor gross mm400 mm
Dim width indoor gross mm1045 mm

electrical

Current cool max a7,8 A
Current cool min a0,7 A
Current cool nominal a5,7 A
Current heat max a7,4 A
Current heat min a1 A
Current heat nominal a6,5 A
Phase count1 szt
Power input cool max w1787 W
Power input cool min w160 W
Power input cool nominal w1318 W
Power input heat max w1695 W
Power input heat min w230 W
Power input heat nominal w1500 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Pipe diameter gas mm12,7 mm
Pipe diameter liquid mm6,35 mm

noise_indoor

Noise pressure indoor high dB(A)41 dBA
Noise pressure indoor low dB(A)23 dBA

performance

Airflow indoor cool max m3h685 m3h
Airflow indoor medium m3h580 m3h
Dim depth indoor net mm239 mm
Dim height indoor net mm319 mm
Dim width indoor net mm965 mm
Weight indoor gross kg16,4 kg
Weight indoor net kg12,3 kg

power_indoor

Current indoor nominal a0,2 A
Power input indoor nominal w36 W
