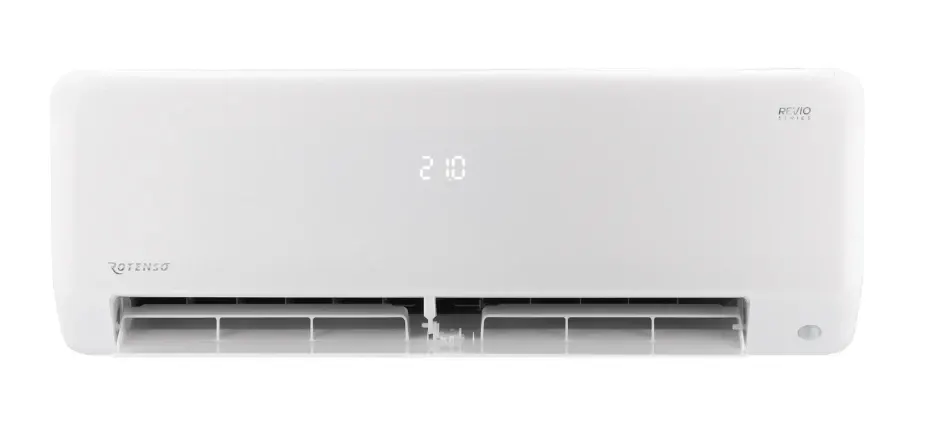

Rotenso Revio
Rotenso

Rotenso Revio

Jednostka wewnętrzna · ścienny

Kod produktu: RO26Xi · EAN: 5905567601125

ŚciennyTyp
2,7 kWChłodzenie
21 dBHałas (cichy)

Dane techniczne

acoustic

Indoor fan speed high rpm960 r/min
Indoor fan speed low rpm730 r/min
Indoor fan speed medium rpm830 r/min
Indoor fan speed silent rpm630 r/min
Noise pressure indoor cool max dB(A)37 dBA
Noise pressure indoor cool min dB(A)20,5 dBA
Noise pressure indoor medium dB(A)32 dBA
Noise pressure indoor silent dB(A)20,5 dBA
Sound power indoor dB(A)58 dBA

airflow_indoor

Airflow indoor high m3h530 m3h
Airflow indoor low m3h360 m3h
Airflow indoor silent m3h280 m3h

capacity

Dehumidification l h1 l/h

construction

Condensate drain diameter mm16 mm

dim_gross_indoor

Dim depth indoor gross mm305 mm
Dim height indoor gross mm370 mm
Dim width indoor gross mm870 mm

electrical

Current cool max a5,2 A
Current cool min a0,6 A
Current cool nominal a2,6 A
Current heat max a6,1 A
Current heat min a0,5 A
Current heat nominal a3 A
Phase count1 szt
Power input cool max w1200 W
Power input cool min w130 W
Power input cool nominal w600 W
Power input heat max w1400 W
Power input heat min w120 W
Power input heat nominal w690 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Pipe diameter gas mm9,52 mm
Pipe diameter liquid mm6,35 mm

noise_indoor

Noise pressure indoor high dB(A)37 dBA
Noise pressure indoor low dB(A)21,5 dBA

performance

Airflow indoor cool max m3h530 m3h
Airflow indoor medium m3h440 m3h
Dim depth indoor net mm225 mm
Dim height indoor net mm295 mm
Dim width indoor net mm795 mm
Weight indoor gross kg13 kg
Weight indoor net kg10,2 kg

power_indoor

Current indoor nominal a0,2 A
Power input indoor nominal w21 W
