LG

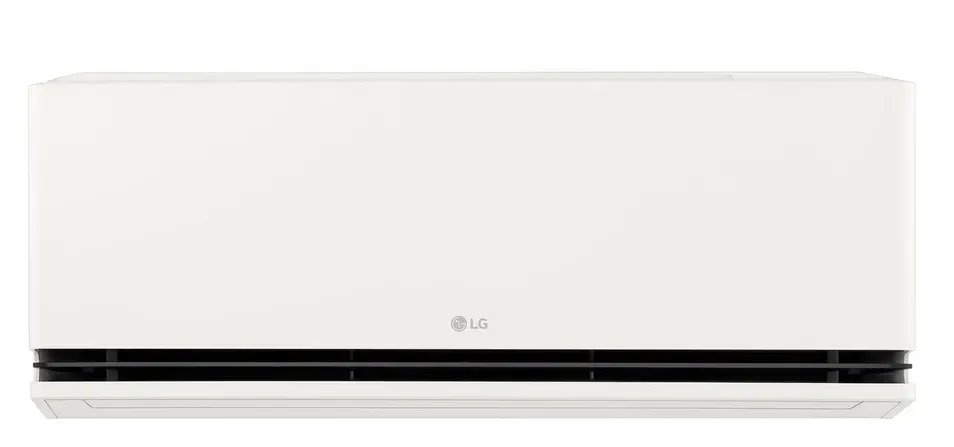

LG Wall-Mounted (Commercial, Larger Class)
Jednostka wewnętrzna · ścienny
Kod produktu: US30F.NR0
ŚciennyTyp
7,5 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure indoor cool max dB(A) | 46 dBA |
|---|---|
| Noise pressure indoor cool min dB(A) | 38 dBA |
| Noise pressure indoor heat max dB(A) | 46 dBA |
| Noise pressure indoor heat min dB(A) | 38 dBA |
| Noise pressure indoor medium dB(A) | 42 dBA |
| Sound power indoor dB(A) | 62 dBA |
airflow_indoor
| Airflow indoor high m3h | 1260 m3h |
|---|---|
| Airflow indoor low m3h | 780 m3h |
capacity
| Capacity cool nominal kW | 8 kW |
|---|---|
| Capacity heat nominal kW | 9 kW |
| Dehumidification l h | 2,9 l/h |
commercial
| Accessory list source | LG katalog 2026, PDF 145L = druk 288, grupa: Urządzenie naścienne text |
|---|
dim_gross_indoor
| Dim depth indoor gross mm | 455 mm |
|---|---|
| Dim height indoor gross mm | 360 mm |
| Dim width indoor gross mm | 1280 mm |
electrical
| Current cool nominal a | 10,1 A |
|---|---|
| Current heat nominal a | 11,1 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool nominal w | 2280 W |
| Power input heat nominal w | 2500 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe inner diameter mm | 14,5 mm |
|---|---|
| Condensate pipe outer diameter mm | 16,5 mm |
| Pipe diameter gas inch | 5/8 enum_marker |
| Pipe diameter gas mm | 15,88 mm |
| Pipe diameter liquid inch | 3/8 enum_marker |
| Pipe diameter liquid mm | 9,52 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 46 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 38 dBA |
performance
| Airflow indoor max m3h | 1260 m3h |
|---|---|
| Airflow indoor medium m3h | 1020 m3h |
| Dim depth indoor net mm | 265 mm |
| Dim height indoor net mm | 360 mm |
| Dim width indoor net mm | 1200 mm |
| Weight indoor gross kg | 22,9 kg |
| Weight indoor net kg | 18,3 kg |
power_indoor
| Power input indoor high w | 47 W |
|---|---|
| Power input indoor low w | 36 W |
| Power input indoor medium w | 42 W |
