LG

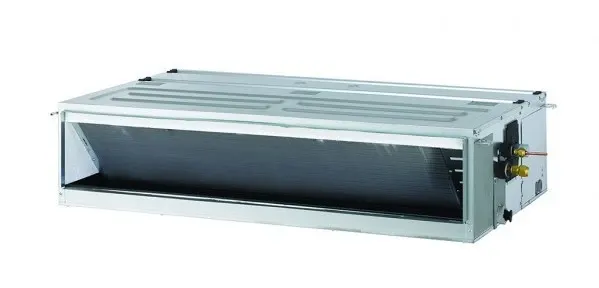

LG Mid-ESP Ducted (Commercial)
Jednostka wewnętrzna · kanałowy
Kod produktu: UM30FH.N20
KanałowyTyp
7,8 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure indoor medium dB(A) | 33 dBA |
|---|---|
| Sound power indoor dB(A) | 59 dBA |
electrical
| Current cool nominal a | 10 A |
|---|---|
| Current heat nominal a | 10,1 A |
| Phase count | 1 szt |
| Power input cool nominal w | 2250 W |
| Power input heat nominal w | 2270 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Pipe diameter gas mm | 15,88 mm |
|---|---|
| Pipe diameter liquid mm | 9,52 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 34 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 32 dBA |
performance
| Airflow indoor max m3h | 1680 m3h |
|---|---|
| Dim depth indoor net mm | 700 mm |
| Dim height indoor net mm | 270 mm |
| Dim width indoor net mm | 1250 mm |
| Static pressure external max pa | 150 Pa |
| Static pressure external min pa | 25 Pa |
| Weight indoor net kg | 39,3 kg |
