LG

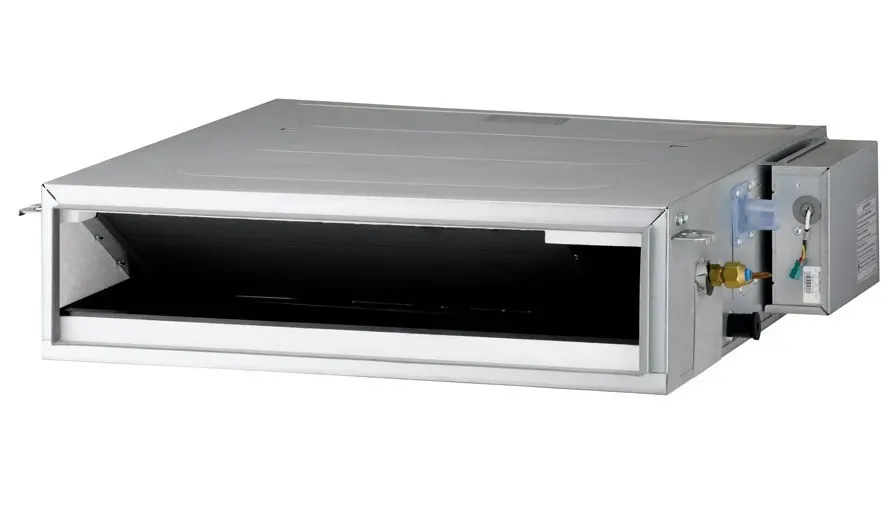

LG Low-ESP Ducted (Commercial)

Jednostka wewnętrzna · kanałowy

Kod produktu: CL24F.N30

KanałowyTyp
6,8 kWChłodzenie

Dane techniczne

acoustic

Noise pressure indoor cool max dB(A)39 dBA
Noise pressure indoor cool min dB(A)32 dBA
Noise pressure indoor heat max dB(A)39 dBA
Noise pressure indoor heat min dB(A)32 dBA
Noise pressure indoor medium dB(A)35 dBA
Sound power indoor dB(A)58 dBA

airflow_indoor

Airflow indoor high m3h1200 m3h
Airflow indoor low m3h720 m3h

capacity

Capacity cool nominal kW6,8 kW
Capacity heat nominal kW7,5 kW
Dehumidification l h2,5 l/h

commercial

Accessory list sourceLG katalog 2026, PDF 144L = druk 286, grupa: Kanałowe (niskiego sprężu) Podstropowe text

electrical

Current cool nominal a9 A
Current heat nominal a9,4 A
Frequency supply hz50 Hz
Phase count1 szt
Power input cool nominal w2030 W
Power input heat nominal w2130 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Condensate pipe inner diameter mm26 mm
Condensate pipe outer diameter mm32 mm
Pipe diameter gas inch5/8 enum_marker
Pipe diameter gas mm15,88 mm
Pipe diameter liquid inch3/8 enum_marker
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)39 dBA
Noise pressure indoor low dB(A)32 dBA

performance

Airflow indoor max m3h1200 m3h
Airflow indoor medium m3h960 m3h
Dim depth indoor net mm700 mm
Dim height indoor net mm190 mm
Dim width indoor net mm1100 mm
Static pressure external max pa50 Pa
Static pressure external nominal pa24,5 Pa
Weight indoor gross kg29,9 kg
Weight indoor net kg26 kg

power_indoor

Power input indoor high w150 W
Power input indoor low w110 W
Power input indoor medium w130 W
