LG

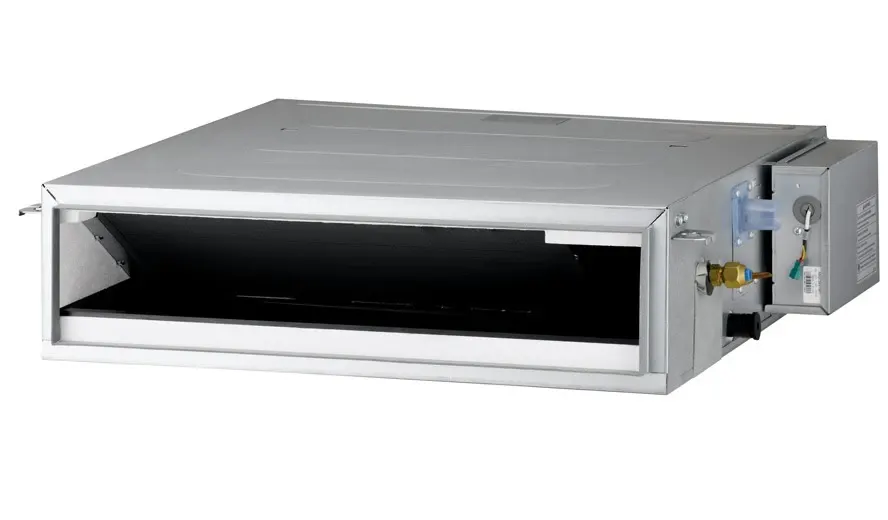

LG Low-ESP Ducted (Commercial)
Jednostka wewnętrzna · kanałowy
Kod produktu: CL12F.N50
KanałowyTyp
3,4 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure indoor cool max dB(A) | 35 dBA |
|---|---|
| Noise pressure indoor cool min dB(A) | 27 dBA |
| Noise pressure indoor heat max dB(A) | 35 dBA |
| Noise pressure indoor heat min dB(A) | 27 dBA |
| Noise pressure indoor medium dB(A) | 30 dBA |
| Sound power indoor dB(A) | 55 dBA |
airflow_indoor
| Airflow indoor high m3h | 690 m3h |
|---|---|
| Airflow indoor low m3h | 480 m3h |
capacity
| Capacity cool nominal kW | 3,4 kW |
|---|---|
| Capacity heat nominal kW | 4 kW |
| Dehumidification l h | 0,9 l/h |
commercial
| Accessory list source | LG katalog 2026, PDF 144L = druk 286, grupa: Kanałowe (niskiego sprężu) Podstropowe text |
|---|
electrical
| Current cool nominal a | 4,7 A |
|---|---|
| Current heat nominal a | 4,8 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool nominal w | 1050 W |
| Power input heat nominal w | 1080 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe inner diameter mm | 26 mm |
|---|---|
| Condensate pipe outer diameter mm | 32 mm |
| Pipe diameter gas inch | 3/8 enum_marker |
| Pipe diameter gas mm | 9,52 mm |
| Pipe diameter liquid inch | 1/4 enum_marker |
| Pipe diameter liquid mm | 6,35 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 35 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 27 dBA |
performance
| Airflow indoor max m3h | 690 m3h |
|---|---|
| Airflow indoor medium m3h | 570 m3h |
| Dim depth indoor net mm | 460 mm |
| Dim height indoor net mm | 190 mm |
| Dim width indoor net mm | 900 mm |
| Static pressure external max pa | 50 Pa |
| Static pressure external min pa | 0 Pa |
| Static pressure external nominal pa | 0 Pa |
| Weight indoor gross kg | 22 kg |
| Weight indoor net kg | 18 kg |
power_indoor
| Power input indoor high w | 21 W |
|---|---|
| Power input indoor low w | 13 W |
| Power input indoor medium w | 15 W |
