LG

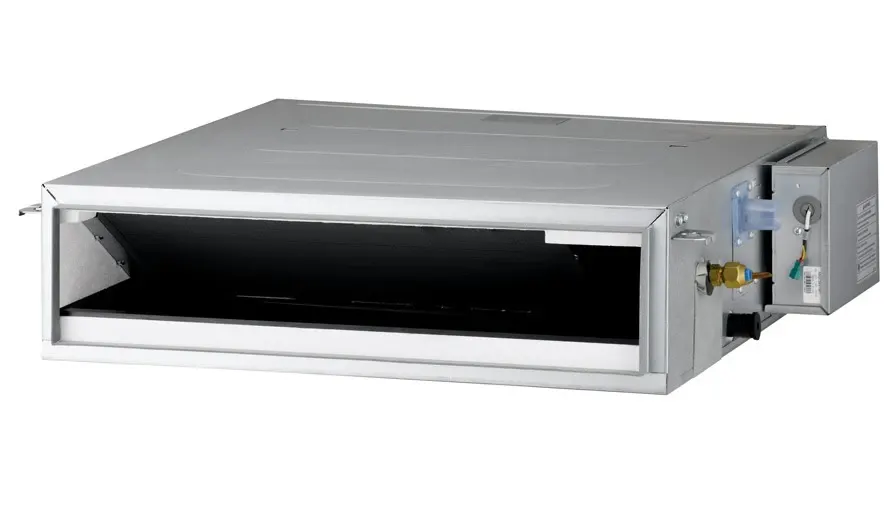

LG Low-ESP Ducted (Commercial)

Jednostka wewnętrzna · kanałowy

Kod produktu: CL09F.N50

KanałowyTyp
2,5 kWChłodzenie

Dane techniczne

acoustic

Noise pressure indoor cool max dB(A)35 dBA
Noise pressure indoor cool min dB(A)27 dBA
Noise pressure indoor heat max dB(A)35 dBA
Noise pressure indoor heat min dB(A)27 dBA
Noise pressure indoor medium dB(A)30 dBA
Sound power indoor dB(A)55 dBA

airflow_indoor

Airflow indoor high m3h690 m3h
Airflow indoor low m3h480 m3h

capacity

Capacity cool nominal kW2,5 kW
Capacity heat nominal kW3,2 kW
Dehumidification l h0,5 l/h

commercial

Accessory list sourceLG katalog 2026, PDF 144L = druk 286, grupa: Kanałowe (niskiego sprężu) Podstropowe text

electrical

Current cool nominal a3 A
Current heat nominal a3,3 A
Frequency supply hz50 Hz
Phase count1 szt
Power input cool nominal w660 W
Power input heat nominal w740 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Condensate pipe inner diameter mm26 mm
Condensate pipe outer diameter mm32 mm
Pipe diameter gas mm9,52 mm
Pipe diameter liquid mm6,35 mm

noise_indoor

Noise pressure indoor high dB(A)35 dBA
Noise pressure indoor low dB(A)27 dBA

performance

Airflow indoor max m3h690 m3h
Airflow indoor medium m3h570 m3h
Dim depth indoor net mm460 mm
Dim height indoor net mm190 mm
Dim width indoor net mm900 mm
Static pressure external max pa50 Pa
Static pressure external min pa0 Pa
Static pressure external nominal pa0 Pa
Weight indoor gross kg22 kg
Weight indoor net kg18 kg

power_indoor

Power input indoor high w21 W
Power input indoor low w13 W
Power input indoor medium w15 W
