LG

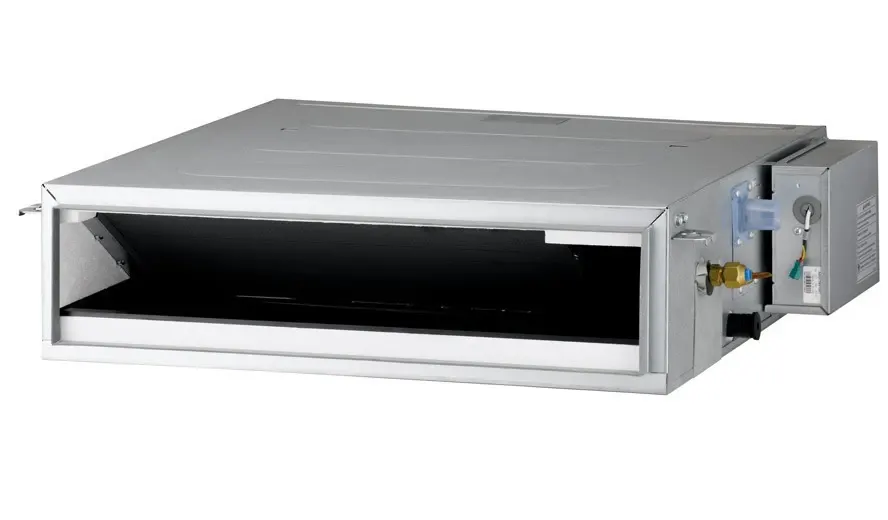

LG Low-ESP Ducted (Commercial)
Jednostka wewnętrzna · kanałowy
Kod produktu: UL18FH.N30
KanałowyTyp
5,0 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure indoor medium dB(A) | 34 dBA |
|---|---|
| Sound power indoor dB(A) | 56 dBA |
airflow_indoor
| Airflow indoor high m3h | 1110 m3h |
|---|---|
| Airflow indoor low m3h | 660 m3h |
capacity
| Dehumidification l h | 2,6 l/h |
|---|
commercial
| Accessory list source | LG katalog 2026, PDF 144L = druk 286, grupa: Kanałowe (niskiego sprężu) Podstropowe text |
|---|
electrical
| Current cool nominal a | 7,6 A |
|---|---|
| Current heat nominal a | 8,1 A |
| Phase count | 1 szt |
| Power input cool nominal w | 1390 W |
| Power input heat nominal w | 1560 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe inner diameter mm | 26 mm |
|---|---|
| Pipe diameter gas inch | 1/2 enum_marker |
| Pipe diameter gas mm | 12,7 mm |
| Pipe diameter liquid inch | 1/4 enum_marker |
| Pipe diameter liquid mm | 6,35 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 38 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 31 dBA |
performance
| Airflow indoor max m3h | 1110 m3h |
|---|---|
| Airflow indoor medium m3h | 900 m3h |
| Dim depth indoor net mm | 700 mm |
| Dim height indoor net mm | 190 mm |
| Dim width indoor net mm | 1100 mm |
| Static pressure external max pa | 50 Pa |
| Static pressure external min pa | 0 Pa |
| Weight indoor net kg | 26 kg |
power_indoor
| Power input indoor high w | 140 W |
|---|---|
| Power input indoor low w | 100 W |
| Power input indoor medium w | 125 W |
