LG

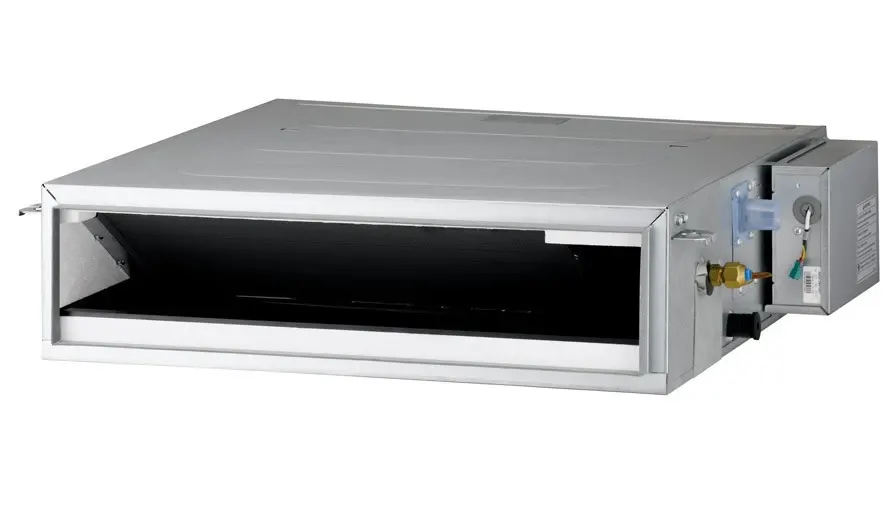

LG Low-ESP Ducted (Commercial)

Jednostka wewnętrzna · kanałowy

Kod produktu: UL12FH.N50

KanałowyTyp
3,4 kWChłodzenie

Dane techniczne

acoustic

Noise pressure indoor medium dB(A)30 dBA
Sound power indoor dB(A)55 dBA

airflow_indoor

Airflow indoor high m3h690 m3h
Airflow indoor low m3h480 m3h

capacity

Dehumidification l h0,8 l/h

commercial

Accessory list sourceLG katalog 2026, PDF 144L = druk 286, grupa: Kanałowe (niskiego sprężu) Podstropowe text

electrical

Current cool nominal a4,7 A
Current heat nominal a4,8 A
Phase count1 szt
Power input cool nominal w1050 W
Power input heat nominal w1080 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Condensate pipe inner diameter mm26 mm
Pipe diameter gas inch3/8 enum_marker
Pipe diameter gas mm9,52 mm
Pipe diameter liquid inch1/4 enum_marker
Pipe diameter liquid mm6,35 mm

noise_indoor

Noise pressure indoor high dB(A)35 dBA
Noise pressure indoor low dB(A)27 dBA

performance

Airflow indoor max m3h690 m3h
Airflow indoor medium m3h570 m3h
Dim depth indoor net mm460 mm
Dim height indoor net mm190 mm
Dim width indoor net mm900 mm
Static pressure external max pa50 Pa
Static pressure external min pa0 Pa
Weight indoor net kg18 kg

power_indoor

Power input indoor high w21 W
Power input indoor low w13 W
Power input indoor medium w15 W
