LG

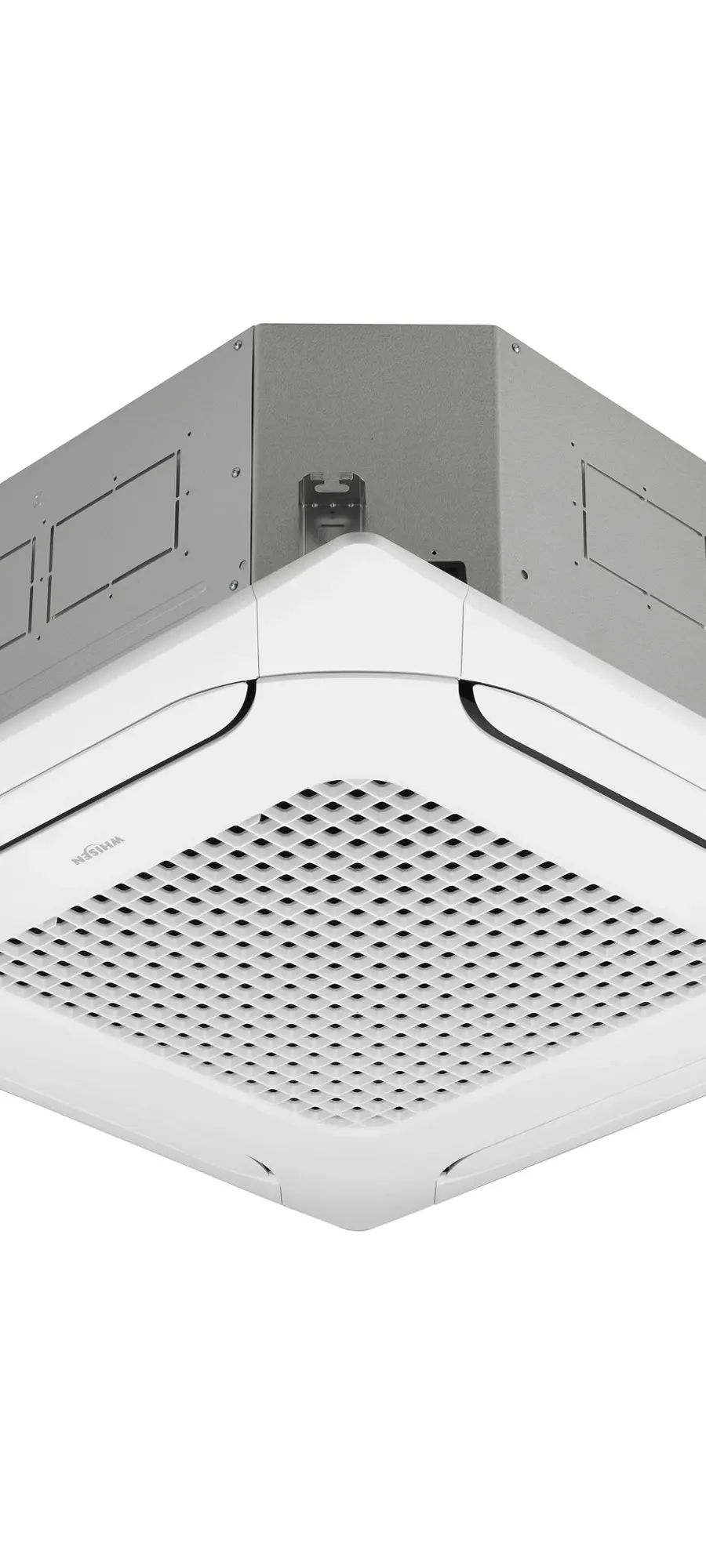

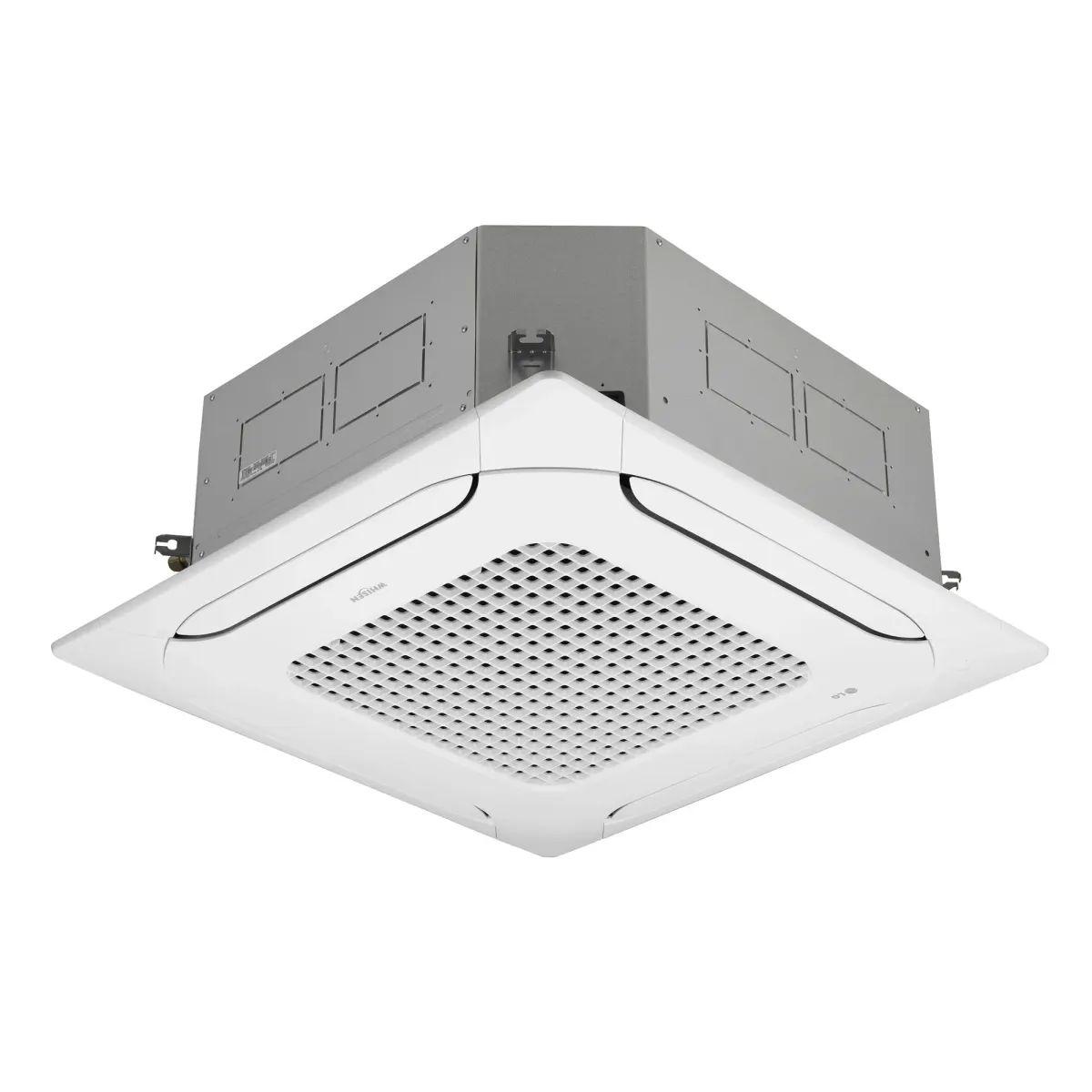

LG Round Cassette (Commercial)

Jednostka wewnętrzna · kasetonowy

Kod produktu: UT48F.NY0

KasetonowyTyp
13,4 kWChłodzenie

Dane techniczne

acoustic

Noise pressure indoor cool max dB(A)47 dBA
Noise pressure indoor cool min dB(A)40 dBA
Noise pressure indoor heat max dB(A)49 dBA
Noise pressure indoor heat min dB(A)42 dBA
Noise pressure indoor medium dB(A)44 dBA
Sound power indoor dB(A)60 dBA

airflow_indoor

Airflow indoor high m3h1740 m3h
Airflow indoor low m3h1260 m3h

capacity

Capacity cool nominal kW13,4 kW
Capacity heat nominal kW15,5 kW

commercial

Accessory list sourceLG katalog 2026, PDF 145P = druk 289, grupa: Kasetonowe (kaseta okrągła) text

dim_gross_indoor

Dim depth indoor gross mm1132 mm
Dim height indoor gross mm395 mm
Dim width indoor gross mm1137 mm

electrical

Current cool nominal a7 A
Current heat nominal a7,3 A
Frequency supply hz50 Hz
Phase count1 szt
Power input cool nominal w4390 W
Power input heat nominal w4560 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Condensate pipe inner diameter mm25 mm
Condensate pipe outer diameter mm32 mm
Pipe diameter gas mm15,88 mm
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)47 dBA
Noise pressure indoor low dB(A)40 dBA

performance

Airflow indoor max m3h1740 m3h
Airflow indoor medium m3h1500 m3h
Dim depth indoor net mm1050 mm
Dim height indoor net mm330 mm
Dim width indoor net mm1050 mm
Weight indoor gross kg38,6 kg
Weight indoor net kg30 kg

power_indoor

Power input indoor high w125 W
Power input indoor low w66 W
Power input indoor medium w90 W
