LG

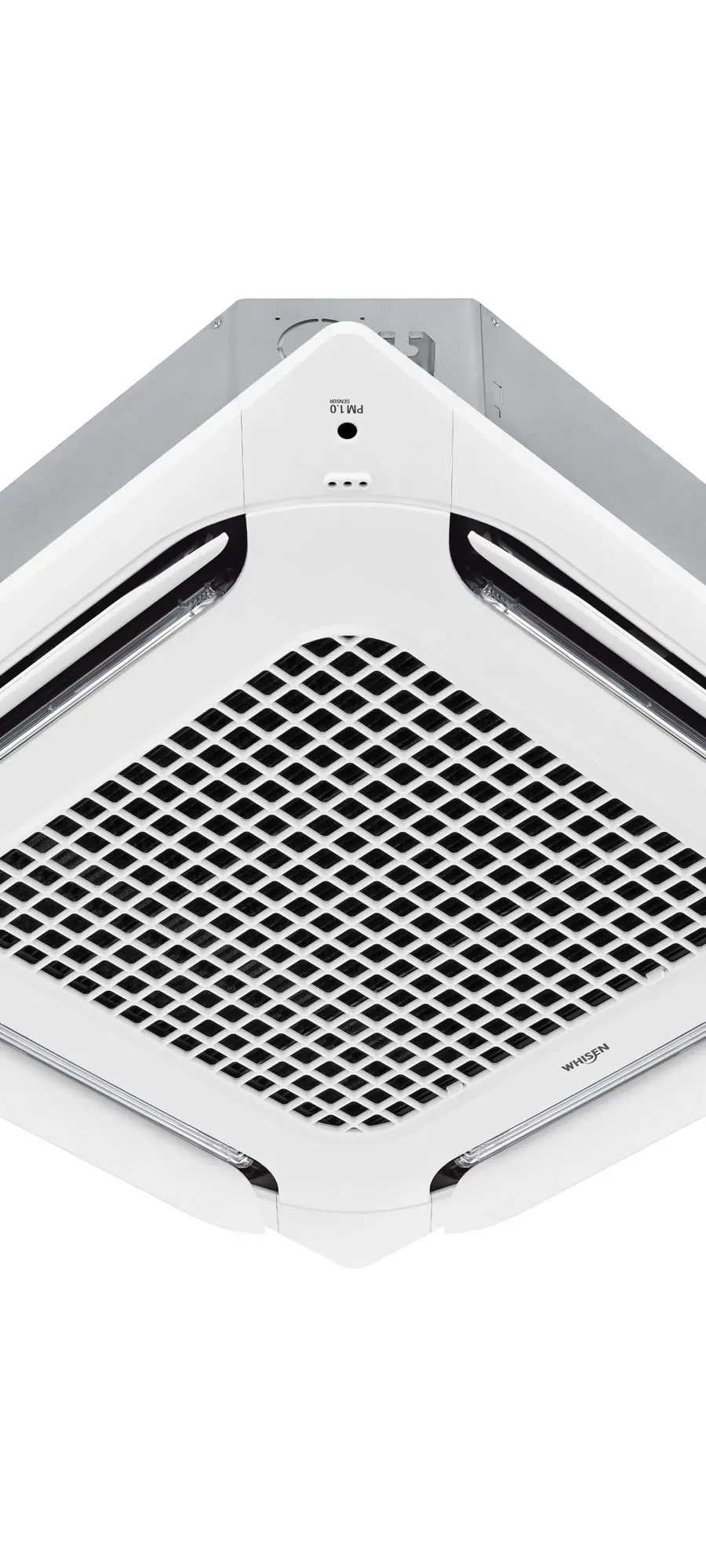

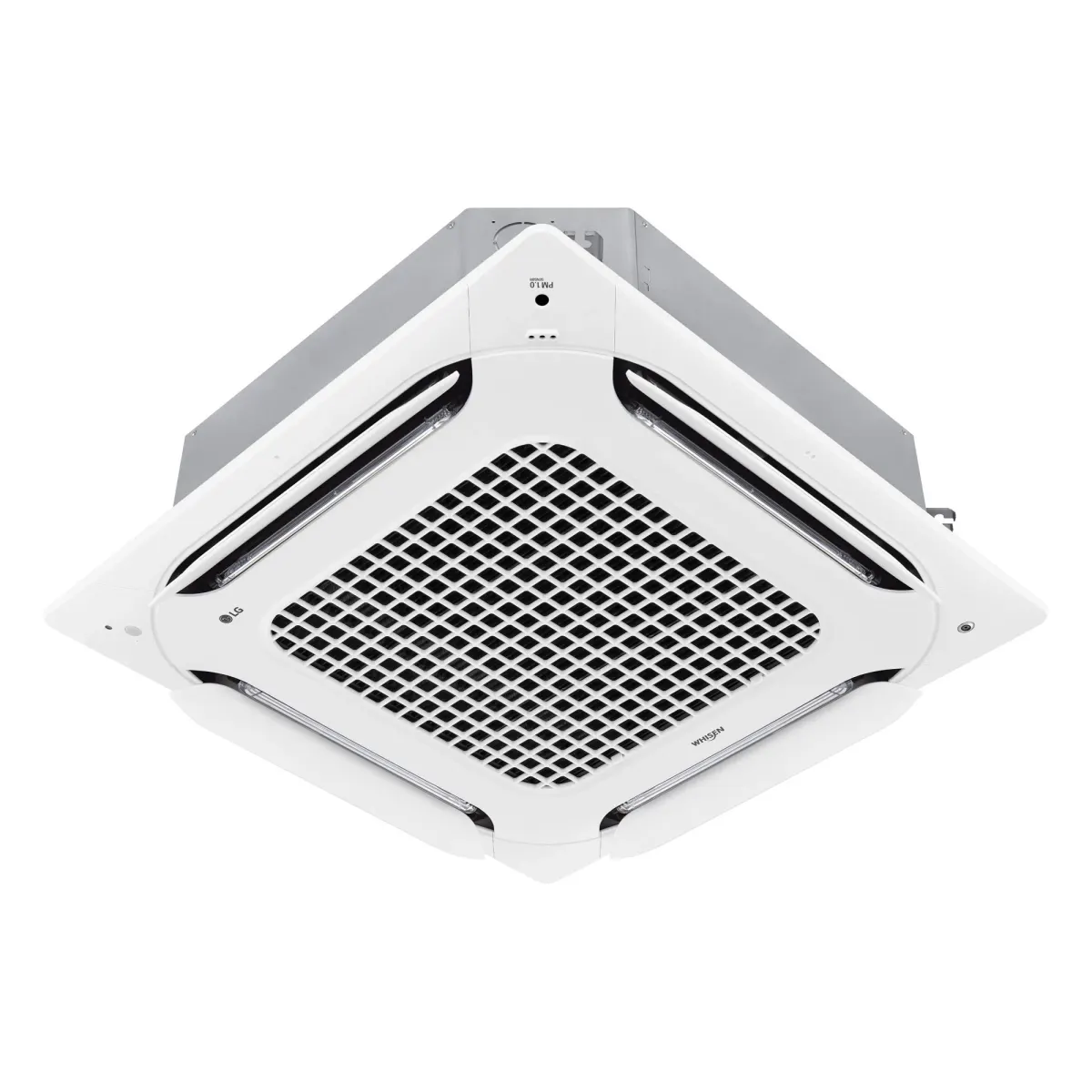

LG Round Cassette (Commercial)
Jednostka wewnętrzna · kasetonowy
Kod produktu: UT36F.NY0
KasetonowyTyp
11,0 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure indoor cool max dB(A) | 44 dBA |
|---|---|
| Noise pressure indoor cool min dB(A) | 38 dBA |
| Noise pressure indoor heat max dB(A) | 47 dBA |
| Noise pressure indoor heat min dB(A) | 40 dBA |
| Noise pressure indoor medium dB(A) | 40 dBA |
| Sound power indoor dB(A) | 59 dBA |
airflow_indoor
| Airflow indoor high m3h | 1500 m3h |
|---|---|
| Airflow indoor low m3h | 1140 m3h |
capacity
| Capacity cool nominal kW | 11 kW |
|---|---|
| Capacity heat nominal kW | 12,2 kW |
commercial
| Accessory list source | LG katalog 2026, PDF 145P = druk 289, grupa: Kasetonowe (kaseta okrągła) text |
|---|
dim_gross_indoor
| Dim depth indoor gross mm | 1132 mm |
|---|---|
| Dim height indoor gross mm | 395 mm |
| Dim width indoor gross mm | 1137 mm |
electrical
| Current cool nominal a | 5,2 A |
|---|---|
| Current heat nominal a | 5,3 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool nominal w | 3060 W |
| Power input heat nominal w | 3130 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe inner diameter mm | 25 mm |
|---|---|
| Condensate pipe outer diameter mm | 32 mm |
| Pipe diameter gas mm | 15,88 mm |
| Pipe diameter liquid mm | 9,52 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 44 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 38 dBA |
performance
| Airflow indoor max m3h | 1500 m3h |
|---|---|
| Airflow indoor medium m3h | 1260 m3h |
| Dim depth indoor net mm | 1050 mm |
| Dim height indoor net mm | 330 mm |
| Dim width indoor net mm | 1050 mm |
| Weight indoor gross kg | 38,6 kg |
| Weight indoor net kg | 30 kg |
power_indoor
| Power input indoor high w | 90 W |
|---|---|
| Power input indoor low w | 48 W |
| Power input indoor medium w | 66 W |
