LG

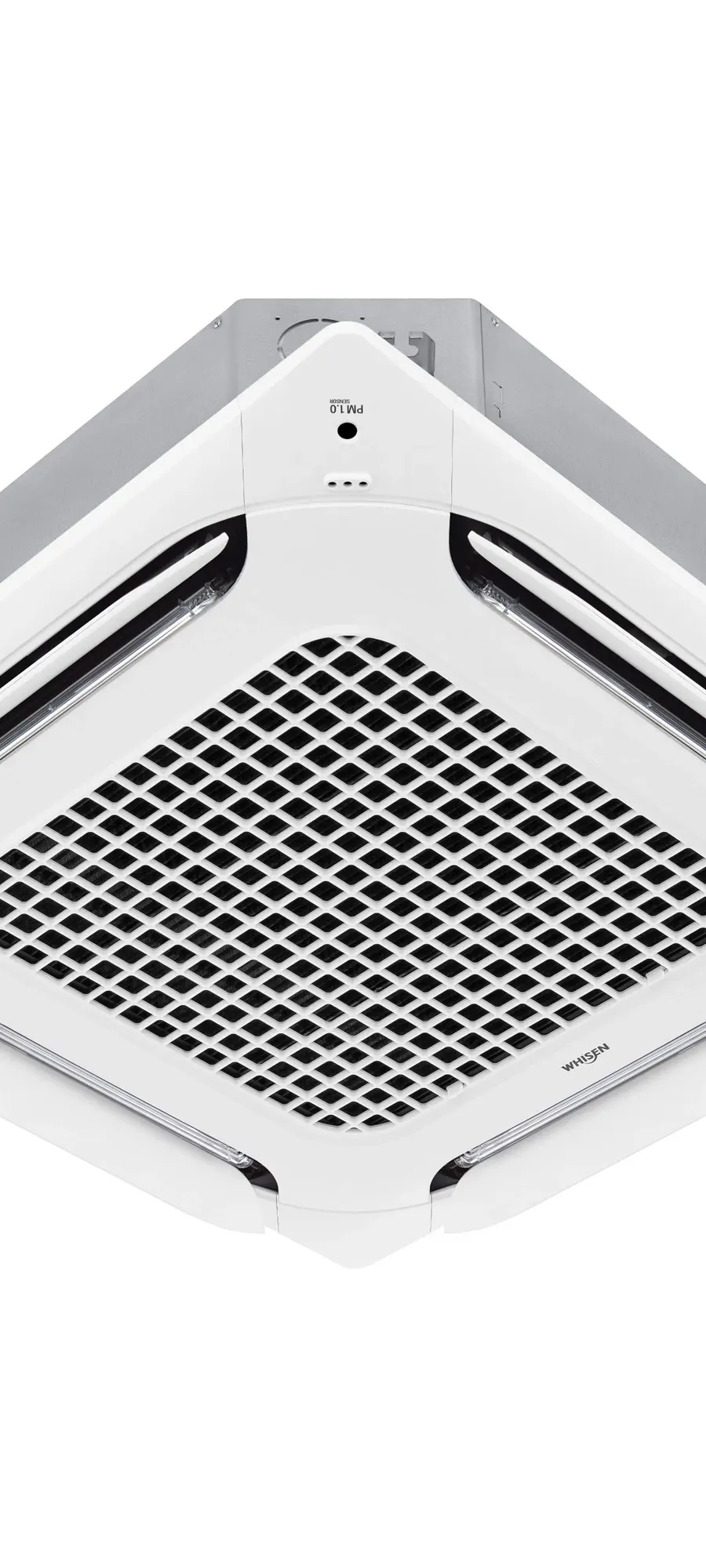

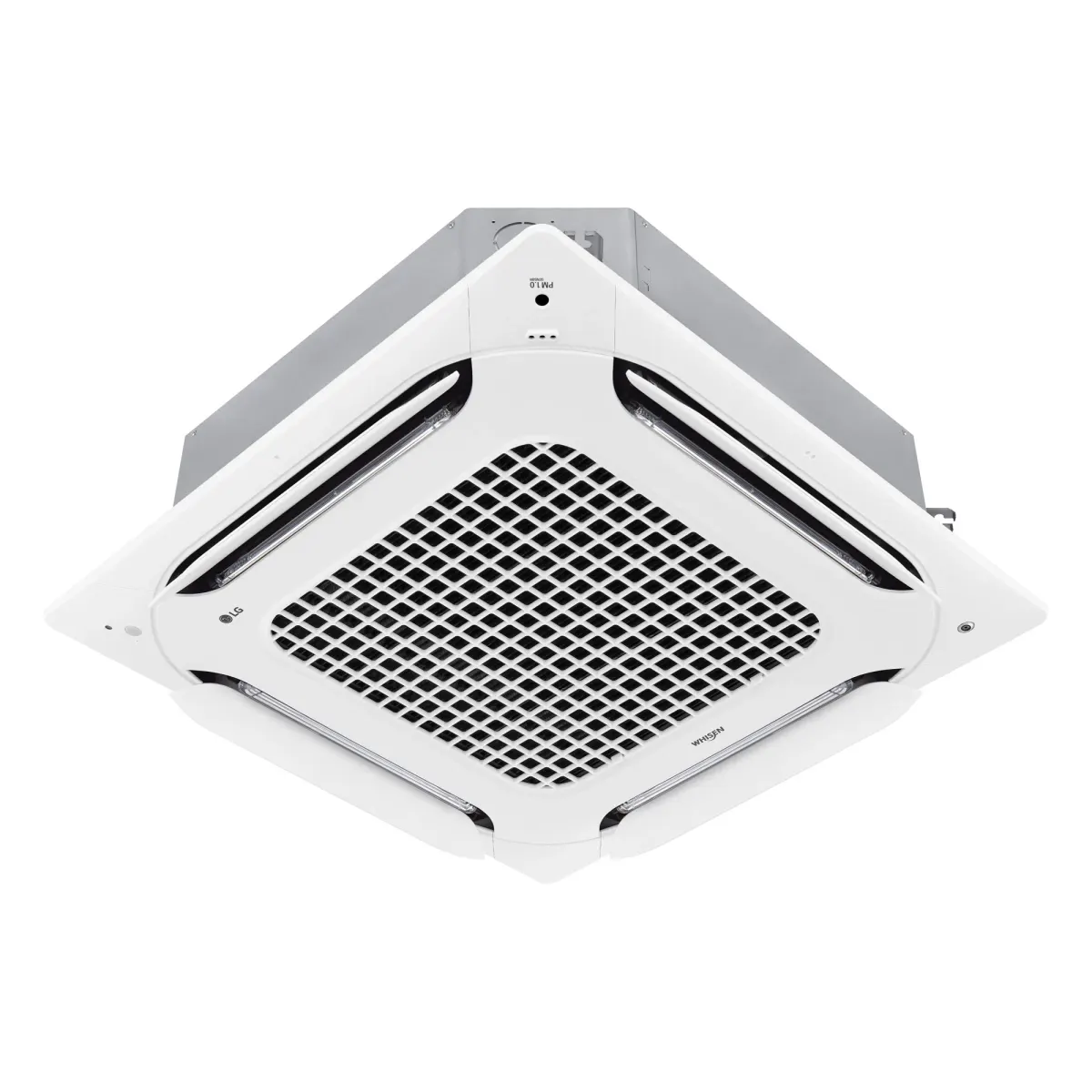

LG 4-Way Cassette (Commercial)
Jednostka wewnętrzna · kasetonowy
Kod produktu: UT36FH.NA0
KasetonowyTyp
9,5 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure indoor medium dB(A) | 42 dBA |
|---|---|
| Sound power indoor dB(A) | 59 dBA |
airflow_indoor
| Airflow indoor high m3h | 1680 m3h |
|---|---|
| Airflow indoor low m3h | 1380 m3h |
capacity
| Dehumidification l h | 2,6 l/h |
|---|
commercial
| Accessory list source | LG katalog 2026, PDF 143L = druk 284, grupa: Kasetonowe (kaseta 4-stronna) text |
|---|
electrical
| Current cool nominal a | 3,6 A |
|---|---|
| Current heat nominal a | 3,8 A |
| Power input cool nominal w | 2150 W |
| Power input heat nominal w | 2400 W |
hydraulic
| Condensate pipe inner diameter mm | 25 mm |
|---|---|
| Condensate pipe outer diameter mm | 32 mm |
| Pipe diameter gas inch | 5/8 enum_marker |
| Pipe diameter gas mm | 15,88 mm |
| Pipe diameter liquid inch | 3/8 enum_marker |
| Pipe diameter liquid mm | 9,52 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 44 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 41 dBA |
performance
| Airflow indoor max m3h | 1680 m3h |
|---|---|
| Airflow indoor medium m3h | 1500 m3h |
| Dim depth indoor net mm | 840 mm |
| Dim height indoor net mm | 288 mm |
| Dim width indoor net mm | 840 mm |
| Weight indoor net kg | 27,2 kg |
power_indoor
| Power input indoor high w | 70 W |
|---|---|
| Power input indoor low w | 50 W |
| Power input indoor medium w | 59 W |
