LG

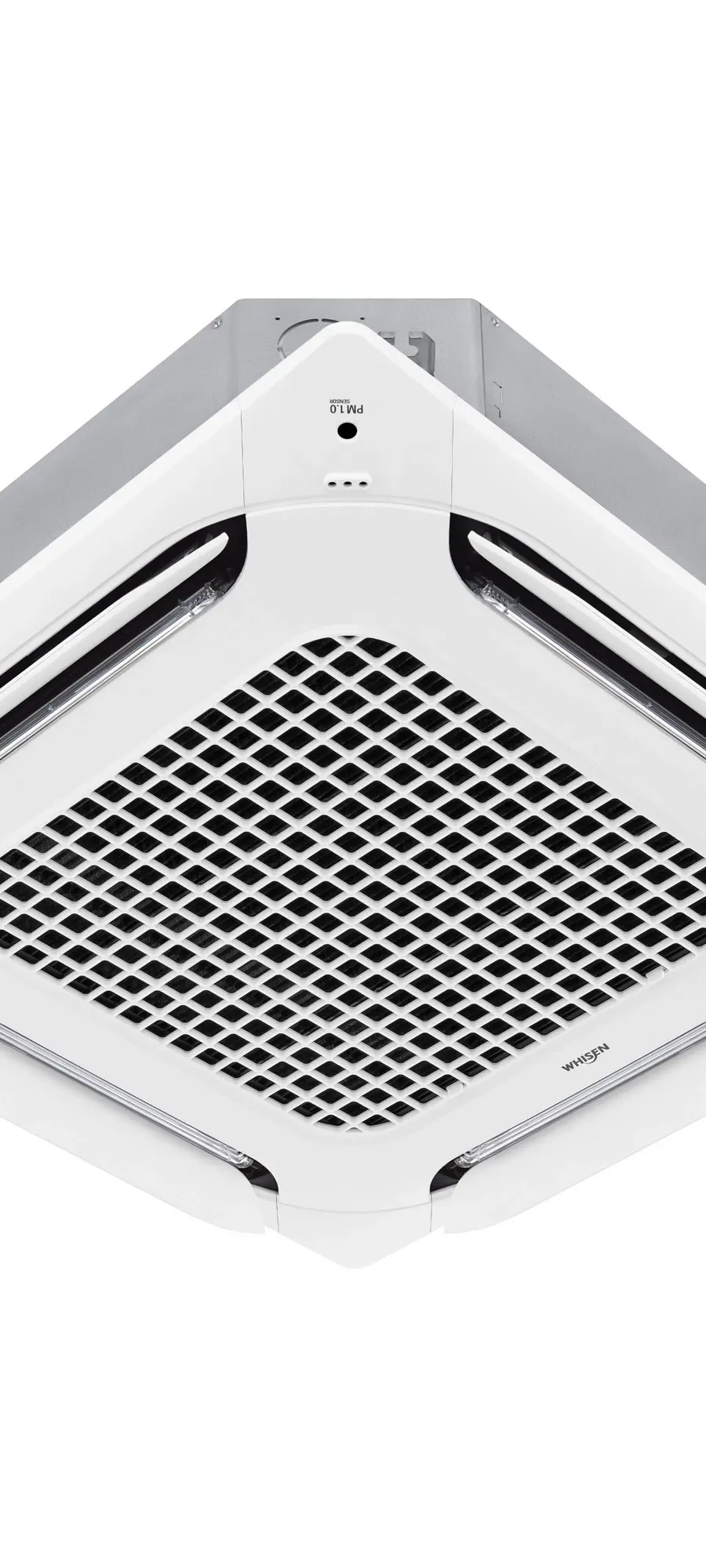

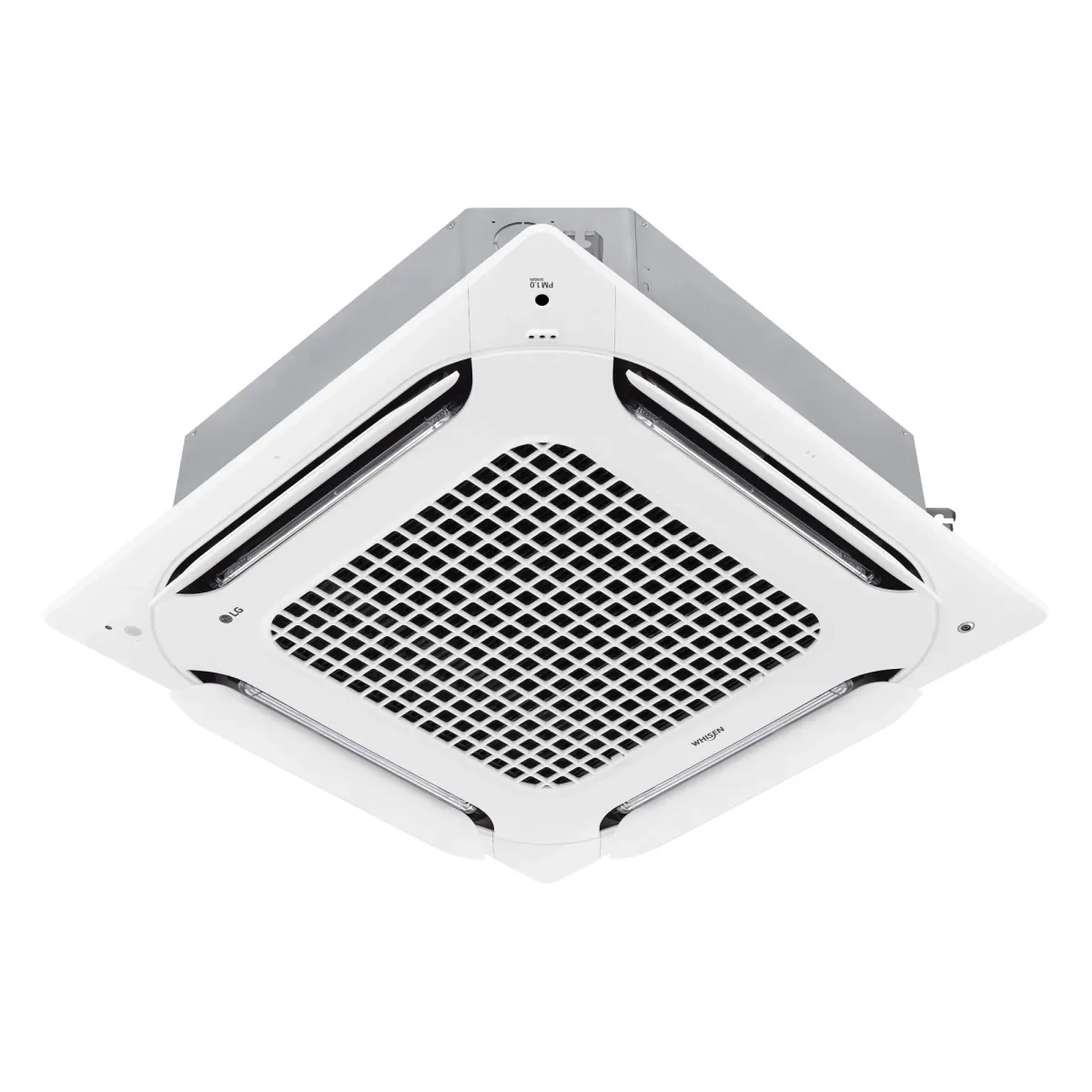

LG 4-Way Cassette (Commercial)

Jednostka wewnętrzna · kasetonowy

Kod produktu: UT30F.NB0

KasetonowyTyp
8,0 kWChłodzenie

Dane techniczne

acoustic

Noise pressure indoor cool max dB(A)40 dBA
Noise pressure indoor cool min dB(A)35 dBA
Noise pressure indoor heat max dB(A)40 dBA
Noise pressure indoor heat min dB(A)35 dBA
Noise pressure indoor medium dB(A)37 dBA
Sound power indoor dB(A)57 dBA

airflow_indoor

Airflow indoor high m3h1140 m3h
Airflow indoor low m3h930 m3h

capacity

Capacity cool nominal kW8 kW
Capacity heat nominal kW8,9 kW

commercial

Accessory list sourceLG katalog 2026, PDF 143L = druk 284, grupa: Kasetonowe (kaseta 4-stronna) text

electrical

Current cool nominal a10,9 A
Current heat nominal a11,6 A
Frequency supply hz50 Hz
Phase count1 szt
Power input cool nominal w2450 W
Power input heat nominal w2620 W
Voltage supply max v240 V
Voltage supply min v220 V

hydraulic

Condensate pipe inner diameter mm25 mm
Condensate pipe outer diameter mm32 mm
Pipe diameter gas inch5/8 enum_marker
Pipe diameter gas mm15,88 mm
Pipe diameter liquid inch3/8 enum_marker
Pipe diameter liquid mm9,52 mm

noise_indoor

Noise pressure indoor high dB(A)40 dBA
Noise pressure indoor low dB(A)35 dBA

performance

Airflow indoor max m3h1140 m3h
Airflow indoor medium m3h1020 m3h
Dim depth indoor net mm840 mm
Dim height indoor net mm204 mm
Dim width indoor net mm840 mm
Weight indoor gross kg26,5 kg
Weight indoor net kg21,1 kg

power_indoor

Power input indoor high w40 W
Power input indoor low w26 W
Power input indoor medium w33 W
