LG

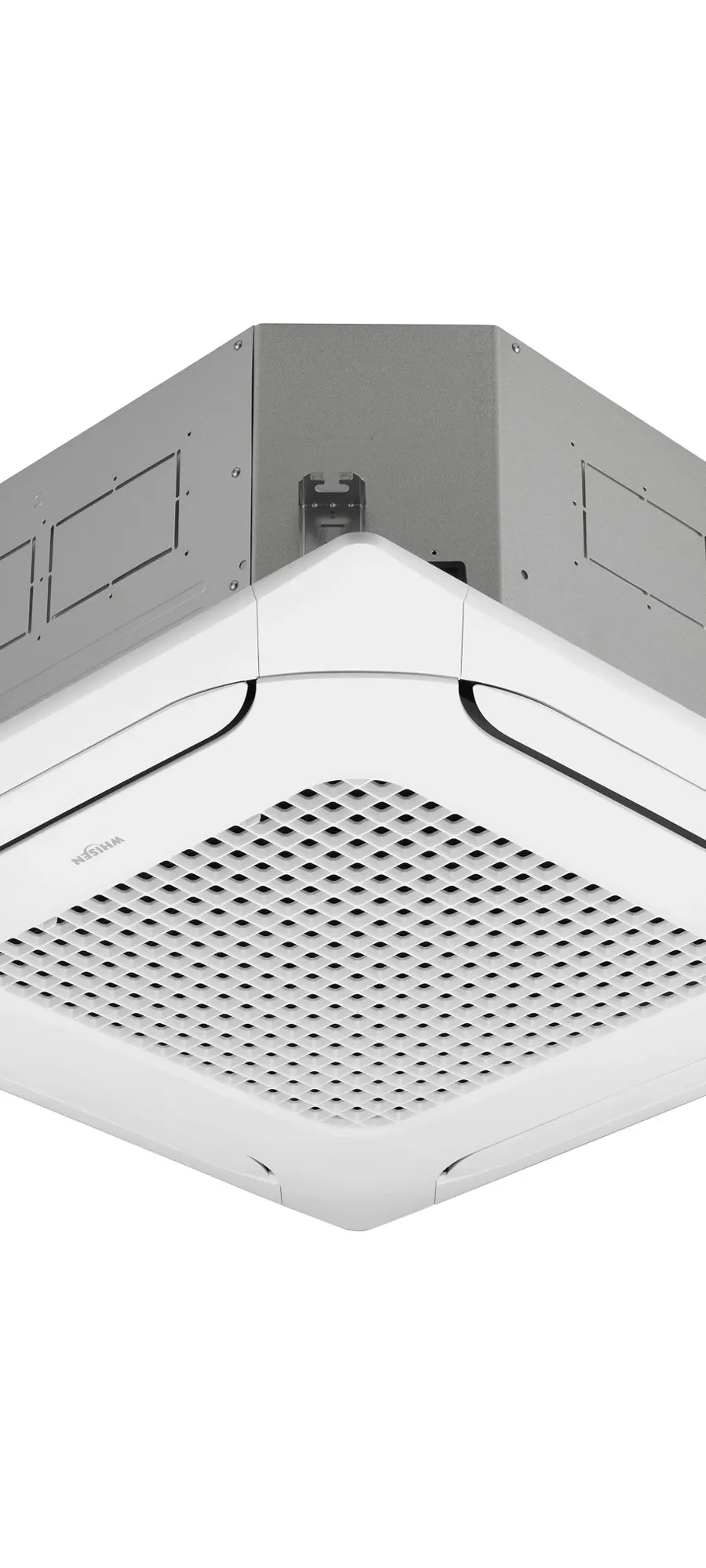

LG 4-Way Cassette (Commercial)
Jednostka wewnętrzna · kasetonowy
Kod produktu: CT24F.NB0
KasetonowyTyp
6,8 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure indoor cool max dB(A) | 38 dBA |
|---|---|
| Noise pressure indoor cool min dB(A) | 34 dBA |
| Noise pressure indoor heat max dB(A) | 38 dBA |
| Noise pressure indoor heat min dB(A) | 34 dBA |
| Noise pressure indoor medium dB(A) | 36 dBA |
| Sound power indoor dB(A) | 53 dBA |
airflow_indoor
| Airflow indoor high m3h | 1020 m3h |
|---|---|
| Airflow indoor low m3h | 780 m3h |
capacity
| Capacity cool nominal kW | 6,8 kW |
|---|---|
| Capacity heat nominal kW | 7,5 kW |
commercial
| Accessory list source | LG katalog 2026, PDF 143L = druk 284, grupa: Kasetonowe (kaseta 4-stronna) text |
|---|
electrical
| Current cool nominal a | 8,6 A |
|---|---|
| Current heat nominal a | 8,7 A |
| Frequency supply hz | 50 Hz |
| Phase count | 1 szt |
| Power input cool nominal w | 1930 W |
| Power input heat nominal w | 1960 W |
| Voltage supply max v | 240 V |
| Voltage supply min v | 220 V |
hydraulic
| Condensate pipe inner diameter mm | 25 mm |
|---|---|
| Condensate pipe outer diameter mm | 32 mm |
| Pipe diameter gas inch | 5/8 enum_marker |
| Pipe diameter gas mm | 15,88 mm |
| Pipe diameter liquid inch | 3/8 enum_marker |
| Pipe diameter liquid mm | 9,52 mm |
noise_indoor
| Noise pressure indoor high dB(A) | 38 dBA |
|---|---|
| Noise pressure indoor low dB(A) | 34 dBA |
performance
| Airflow indoor max m3h | 1080 m3h |
|---|---|
| Airflow indoor medium m3h | 900 m3h |
| Dim depth indoor net mm | 840 mm |
| Dim height indoor net mm | 204 mm |
| Dim width indoor net mm | 840 mm |
| Weight indoor gross kg | 26,5 kg |
| Weight indoor net kg | 21,1 kg |
power_indoor
| Power input indoor high w | 36 W |
|---|---|
| Power input indoor low w | 21 W |
| Power input indoor medium w | 26 W |
