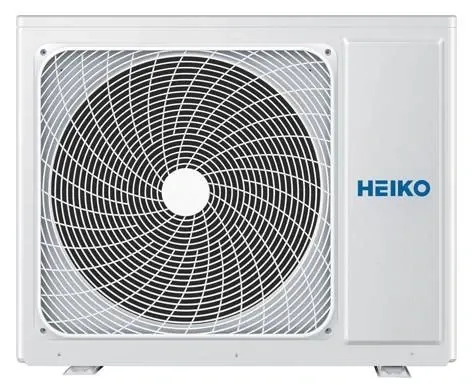

Heiko
Heiko Multi
Jednostka zewnętrzna · do 3 jednostek
Kod produktu: M3T070-D1
do 3Jednostek wewn.
7,0 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure outdoor dB(A) | 53 dBA |
|---|---|
| Sound power outdoor dB(A) | 66 dBA |
dim_gross_outdoor
| Dim depth outdoor gross mm | 443 mm |
|---|---|
| Dim height outdoor gross mm | 770 mm |
| Dim width outdoor gross mm | 998 mm |
hydraulic
| Pipe height diff max m | 25 m |
|---|---|
| Pipe length max m | 60 m |
| Refrigerant charge additional g m | 20 g/m |
| Refrigerant charge factory kg | 1,6 kg |
| Refrigerant type | R32 enum_marker |
performance
| Airflow outdoor m3h | 3000 m3h |
|---|---|
| Dim depth outdoor net mm | 340 mm |
| Dim height outdoor net mm | 700 mm |
| Dim width outdoor net mm | 890 mm |
| Weight outdoor gross kg | 58 kg |
| Weight outdoor net kg | 54 kg |
seasonal
| Operating temp cool max c | 46 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -15 °C |
