Rotenso

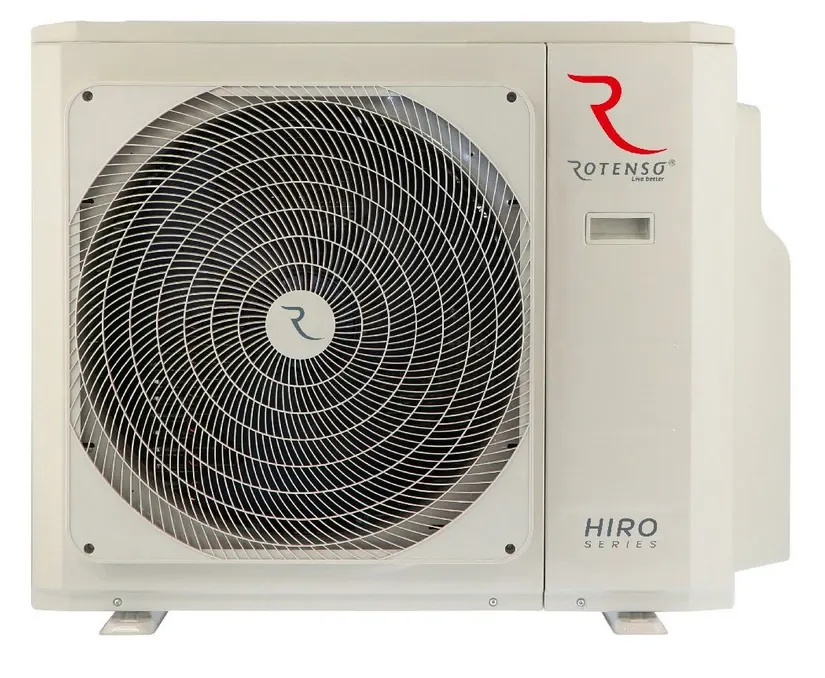

Rotenso Hiro S-Line
Jednostka zewnętrzna · do 5 jednostek
Kod produktu: H120Xm5
do 5Jednostek wewn.
13,8 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure outdoor dB(A) | 64 dBA |
|---|---|
| Outdoor fan speed high rpm | 900 r/min |
| Outdoor fan speed low rpm | 600 r/min |
| Outdoor fan speed medium rpm | 750 r/min |
| Sound power outdoor dB(A) | 69 dBA |
airflow_outdoor
| Airflow outdoor max m3h | 3850 m3h |
|---|
dim_gross_outdoor
| Dim depth outdoor gross mm | 500 mm |
|---|---|
| Dim height outdoor gross mm | 865 mm |
| Dim width outdoor gross mm | 1090 mm |
dimensions
| Outdoor mounting depth mm | 403 mm |
|---|---|
| Outdoor mounting width mm | 673 mm |
electrical
| Current system max a | 20,4 A |
|---|
hydraulic
| Pipe length max m | 80 m |
|---|---|
| Refrigerant charge additional g m | 12 g/m |
| Refrigerant charge factory kg | 2,9 kg |
| Refrigerant co2 equivalent t | 1,96 t |
| Refrigerant gwp | 675 ratio |
| Refrigerant type | R32 enum_marker |
performance
| Dim depth outdoor net mm | 410 mm |
|---|---|
| Dim height outdoor net mm | 810 mm |
| Dim width outdoor net mm | 946 mm |
| Weight outdoor gross kg | 80,4 kg |
| Weight outdoor net kg | 73,3 kg |
seasonal
| Operating temp cool max c | 50 °C |
|---|---|
| Operating temp cool min c | -15 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -22 °C |
