Mitsubishi Electric

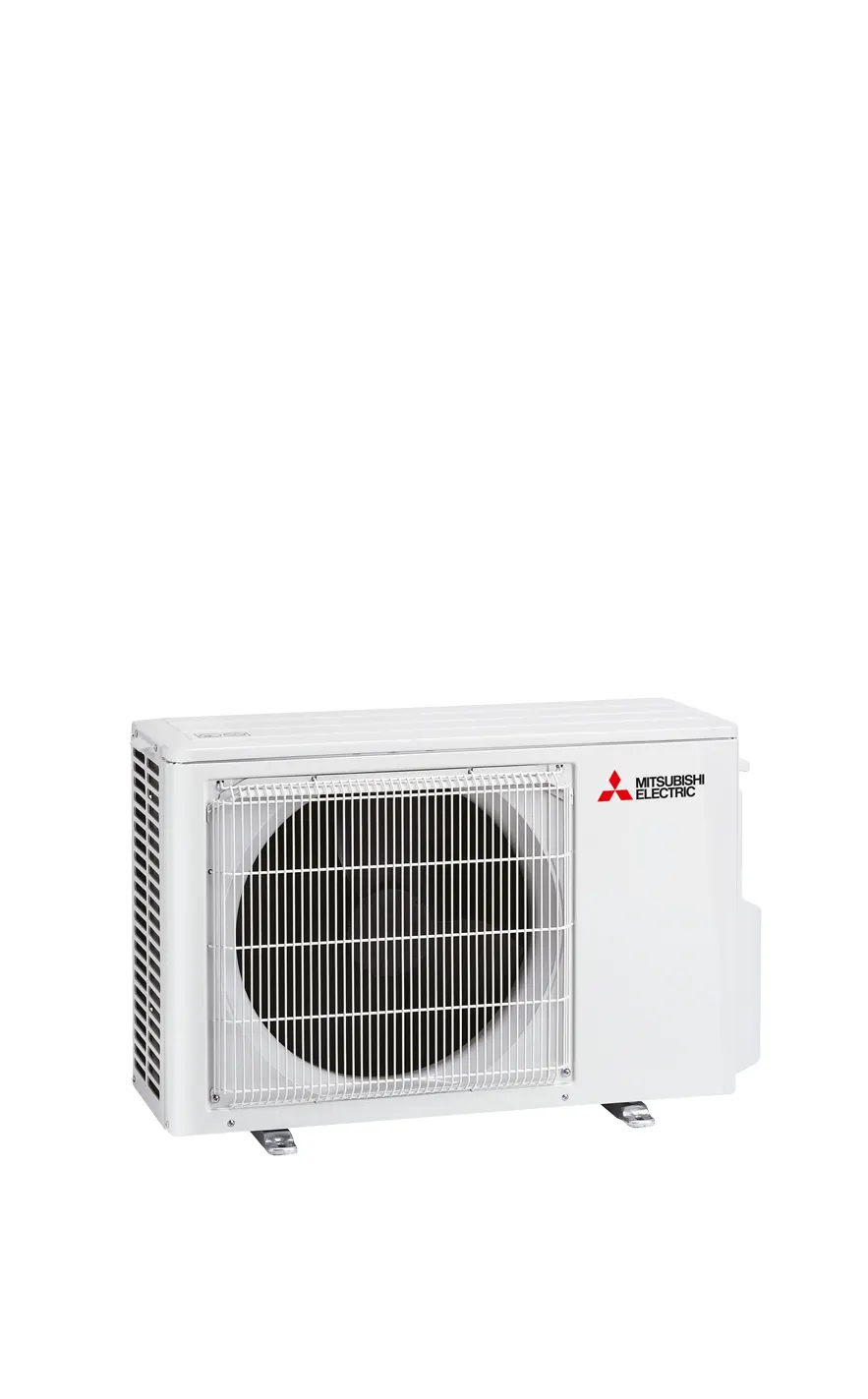

Mitsubishi Electric MXZ
Jednostka zewnętrzna · do 2 jednostek
Kod produktu: MXZ-2F53
do 2Jednostek wewn.
5,3 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 46 dBA |
|---|---|
| Noise pressure outdoor heat dB(A) | 51 dBA |
| Sound power outdoor dB(A) | 61 dBA |
electrical
| Current system max a | 12,2 A |
|---|---|
| Power supply fuse a | 16 A |
hydraulic
| Pipe height diff max m | 15 m |
|---|---|
| Pipe length max m | 30 m |
| Refrigerant charge factory kg | 1 kg |
| Refrigerant charge max kg | 1 kg |
| Refrigerant gwp | 675 ratio |
| Refrigerant type | R32 enum_marker |
performance
| Airflow outdoor m3h | 1974 m3h |
|---|---|
| Dim depth outdoor net mm | 285 mm |
| Dim height outdoor net mm | 550 mm |
| Dim width outdoor net mm | 800 mm |
| Weight outdoor net kg | 37 kg |
seasonal
| Operating temp cool max c | 46 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -15 °C |
