Panasonic

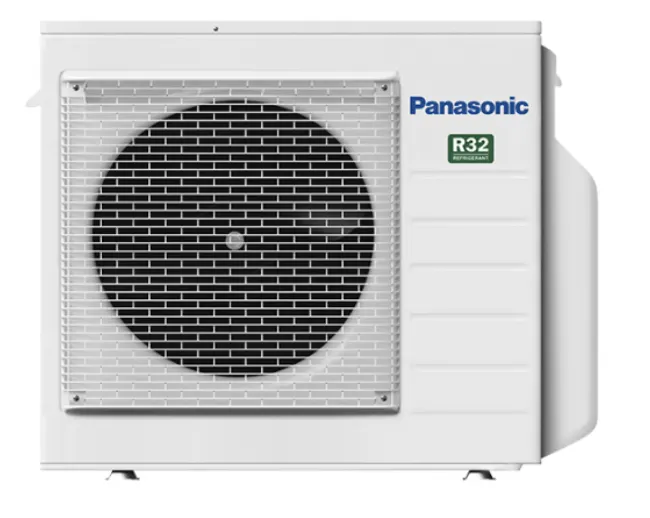

Panasonic Free Multi
Jednostka zewnętrzna · do 2 jednostek
Kod produktu: CU-2Z35TBE
do 2Jednostek wewn.
3,5 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 48 dBA |
|---|---|
| Noise pressure outdoor heat dB(A) | 50 dBA |
capacity
| Capacity cool nominal kW | 3,5 kW |
|---|---|
| Capacity heat nominal kW | 4,2 kW |
electrical
| Power supply fuse a | 16 A |
|---|
hydraulic
| Pipe height diff max m | 10 m |
|---|---|
| Pipe length max m | 30 m |
| Refrigerant charge additional g m | 15 g/m |
| Refrigerant charge factory kg | 1,12 kg |
| Refrigerant co2 equivalent t | 0,756 t |
| Refrigerant type | R32 enum_marker |
performance
| Dim depth outdoor net mm | 299 mm |
|---|---|
| Dim height outdoor net mm | 619 mm |
| Dim width outdoor net mm | 824 mm |
| Weight outdoor net kg | 39 kg |
seasonal
| Operating temp cool max c | 46 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -15 °C |
