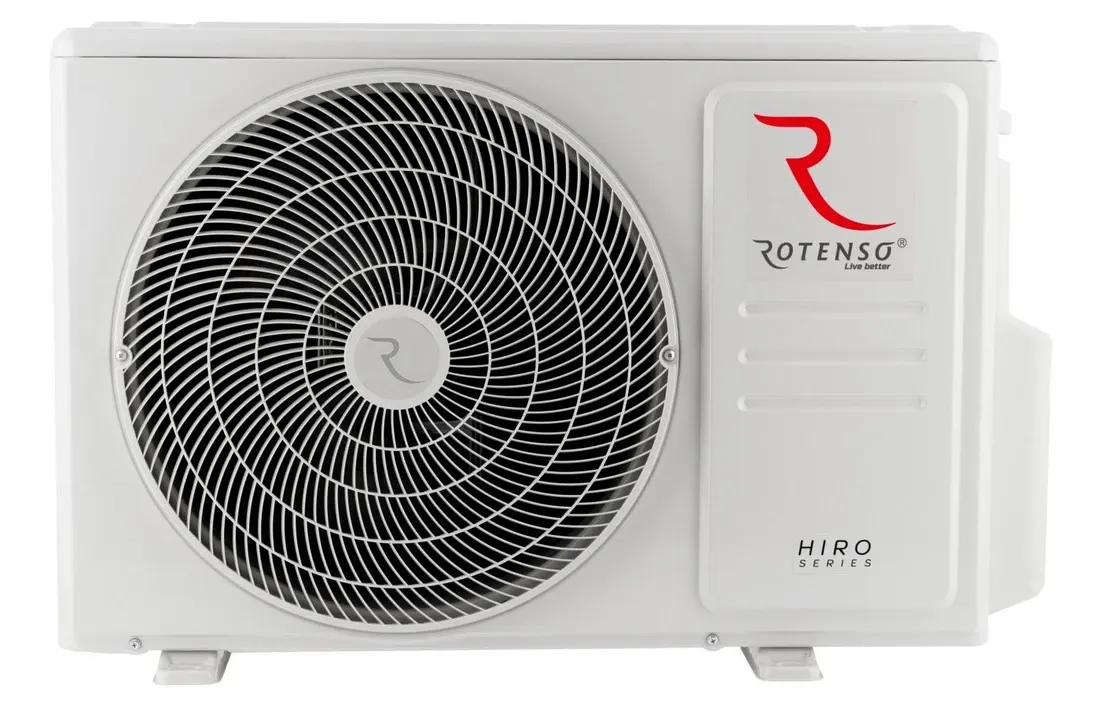

Rotenso Hiro S-Line
Rotenso

Rotenso Hiro S-Line

Jednostka zewnętrzna · do 3 jednostek

Kod produktu: H70Xm3

do 3Jednostek wewn.
8,3 kWChłodzenie

Dane techniczne

acoustic

Noise pressure outdoor dB(A)55 dBA
Outdoor fan speed high rpm900 r/min
Outdoor fan speed low rpm750 r/min
Outdoor fan speed medium rpm850 r/min
Sound power outdoor dB(A)67 dBA

airflow_outdoor

Airflow outdoor max m3h3000 m3h

dim_gross_outdoor

Dim depth outdoor gross mm440 mm
Dim height outdoor gross mm750 mm
Dim width outdoor gross mm1005 mm

dimensions

Outdoor mounting depth mm348 mm
Outdoor mounting width mm663 mm

electrical

Current system max a17,8 A

hydraulic

Pipe length max m60 m
Refrigerant charge additional g m12 g/m
Refrigerant charge factory kg1,85 kg
Refrigerant co2 equivalent t1,24 t
Refrigerant gwp675 ratio
Refrigerant typeR32 enum_marker

performance

Dim depth outdoor net mm342 mm
Dim height outdoor net mm673 mm
Dim width outdoor net mm890 mm
Weight outdoor gross kg56,8 kg
Weight outdoor net kg51,1 kg

seasonal

Operating temp cool max c50 °C
Operating temp cool min c-15 °C
Operating temp heat max c24 °C
Operating temp heat min c-22 °C
