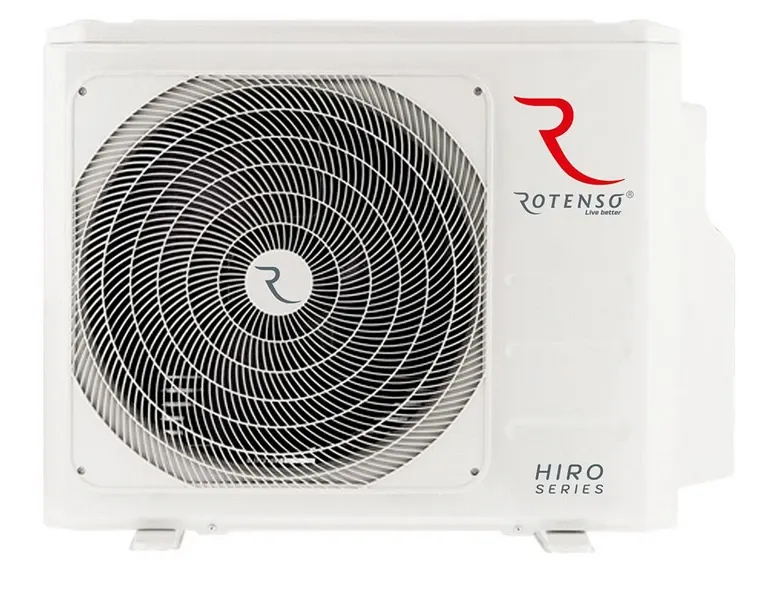

Rotenso Hiro S-Line
Rotenso

Rotenso Hiro S-Line

Jednostka zewnętrzna · do 4 jednostek

Kod produktu: H80Xm4

do 4Jednostek wewn.
9,9 kWChłodzenie

Dane techniczne

acoustic

Noise pressure outdoor dB(A)61 dBA
Outdoor fan speed high rpm1150 r/min
Outdoor fan speed low rpm900 r/min
Outdoor fan speed medium rpm1050 r/min
Sound power outdoor dB(A)67 dBA

airflow_outdoor

Airflow outdoor max m3h3800 m3h

dim_gross_outdoor

Dim depth outdoor gross mm500 mm
Dim height outdoor gross mm875 mm
Dim width outdoor gross mm1090 mm

dimensions

Outdoor mounting depth mm403 mm
Outdoor mounting width mm673 mm

electrical

Current system max a18 A

hydraulic

Pipe length max m80 m
Refrigerant charge additional g m12 g/m
Refrigerant charge factory kg2,1 kg
Refrigerant co2 equivalent t1,42 t
Refrigerant gwp675 ratio
Refrigerant typeR32 enum_marker

performance

Dim depth outdoor net mm410 mm
Dim height outdoor net mm810 mm
Dim width outdoor net mm946 mm
Weight outdoor gross kg67,7 kg
Weight outdoor net kg62,1 kg

seasonal

Operating temp cool max c50 °C
Operating temp cool min c-15 °C
Operating temp heat max c24 °C
Operating temp heat min c-22 °C
