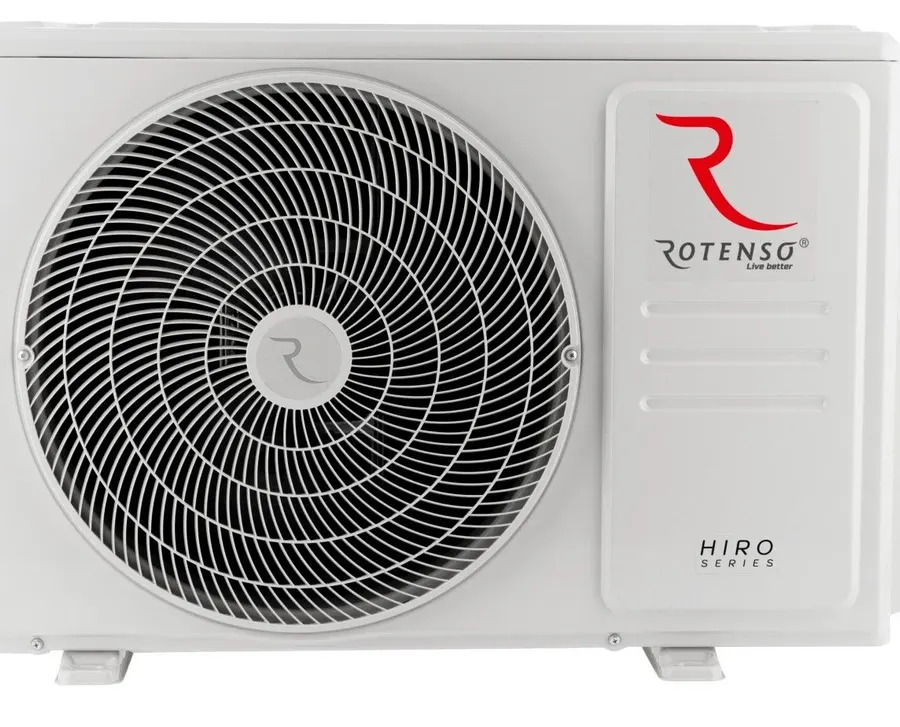

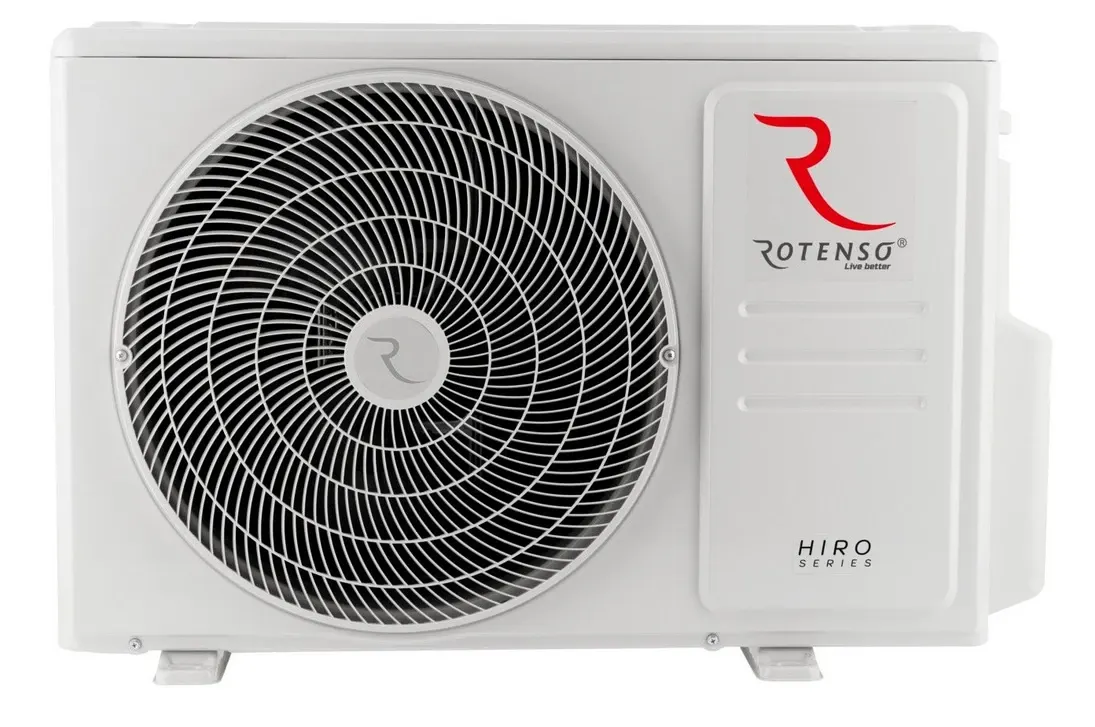

Rotenso Hiro S-Line
Rotenso

Rotenso Hiro S-Line

Jednostka zewnętrzna · do 3 jednostek

Kod produktu: H50Xm3

do 3Jednostek wewn.
6,6 kWChłodzenie

Dane techniczne

acoustic

Noise pressure outdoor dB(A)56 dBA
Outdoor fan speed high rpm810 r/min
Outdoor fan speed low rpm500 r/min
Outdoor fan speed medium rpm700 r/min
Sound power outdoor dB(A)65 dBA

airflow_outdoor

Airflow outdoor max m3h2200 m3h

dim_gross_outdoor

Dim depth outdoor gross mm380 mm
Dim height outdoor gross mm615 mm
Dim width outdoor gross mm950 mm

dimensions

Outdoor mounting depth mm317 mm
Outdoor mounting width mm511 mm

hydraulic

Pipe length max m60 m
Refrigerant charge additional g m12 g/m
Refrigerant charge factory kg1,5 kg
Refrigerant co2 equivalent t1,01 t
Refrigerant gwp675 ratio
Refrigerant typeR32 enum_marker

performance

Dim depth outdoor net mm330 mm
Dim height outdoor net mm554 mm
Dim width outdoor net mm805 mm
Weight outdoor gross kg39,4 kg
Weight outdoor net kg36,2 kg

seasonal

Operating temp cool max c50 °C
Operating temp cool min c-15 °C
Operating temp heat max c24 °C
Operating temp heat min c-22 °C
