Panasonic

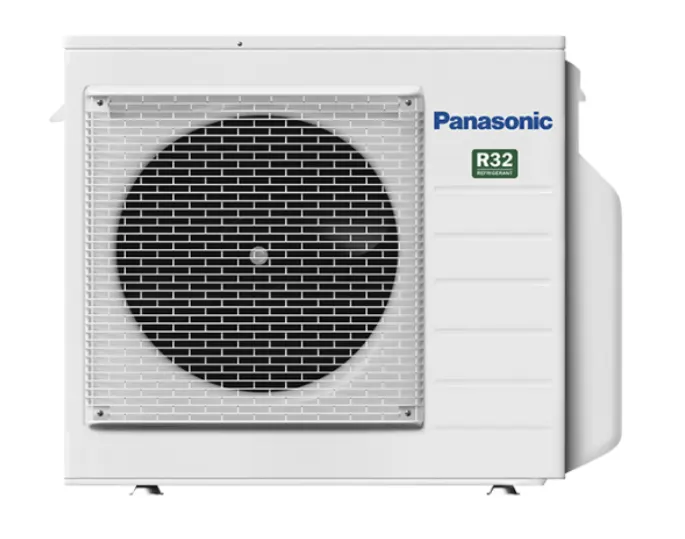

Panasonic Free Multi
Jednostka zewnętrzna · do 4 jednostek
Kod produktu: CU-4Z68TBE
do 4Jednostek wewn.
6,8 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 49 dBA |
|---|---|
| Noise pressure outdoor heat dB(A) | 50 dBA |
capacity
| Capacity cool nominal kW | 6,8 kW |
|---|---|
| Capacity heat nominal kW | 8,5 kW |
electrical
| Power supply fuse a | 20 A |
|---|
hydraulic
| Pipe length max m | 60 m |
|---|---|
| Refrigerant charge additional g m | 20 g/m |
| Refrigerant charge factory kg | 2,1 kg |
| Refrigerant co2 equivalent t | 1,418 t |
| Refrigerant type | R32 enum_marker |
performance
| Dim depth outdoor net mm | 320 mm |
|---|---|
| Dim height outdoor net mm | 795 mm |
| Dim width outdoor net mm | 875 mm |
| Weight outdoor net kg | 72 kg |
seasonal
| Operating temp cool max c | 46 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -15 °C |
