DaikinZłóż zestaw z tym agregatem

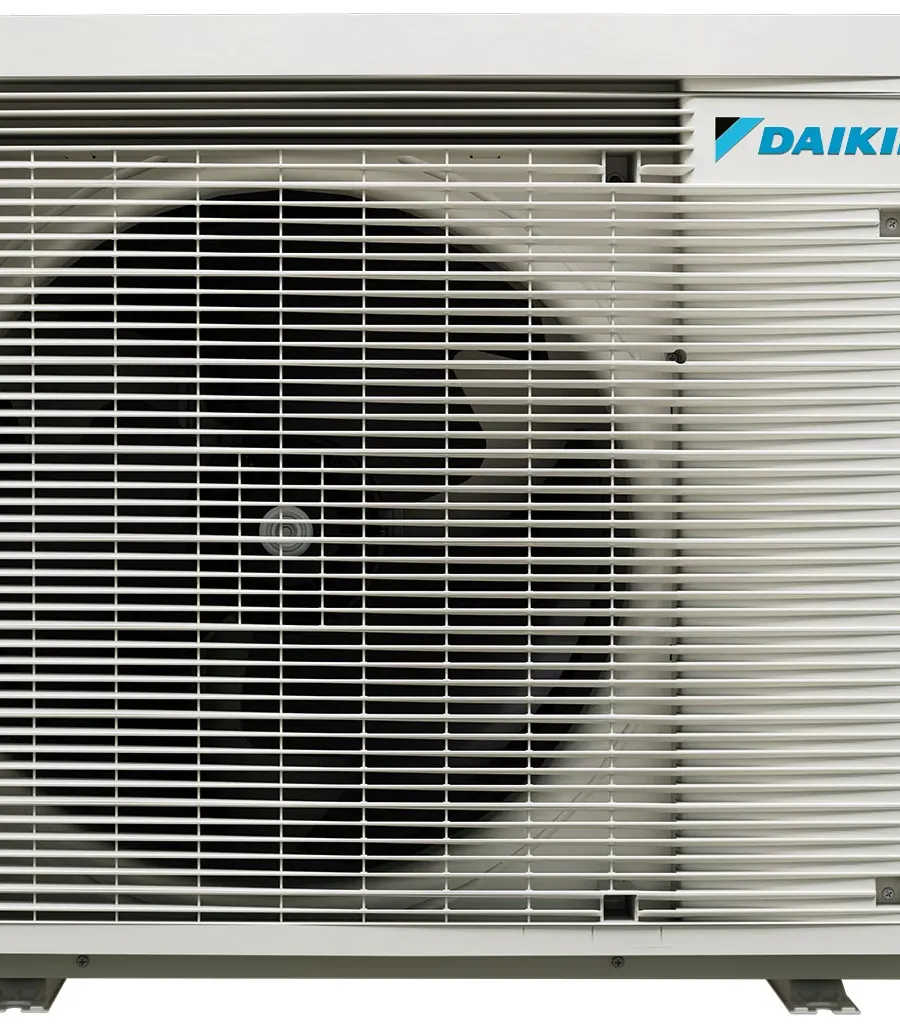

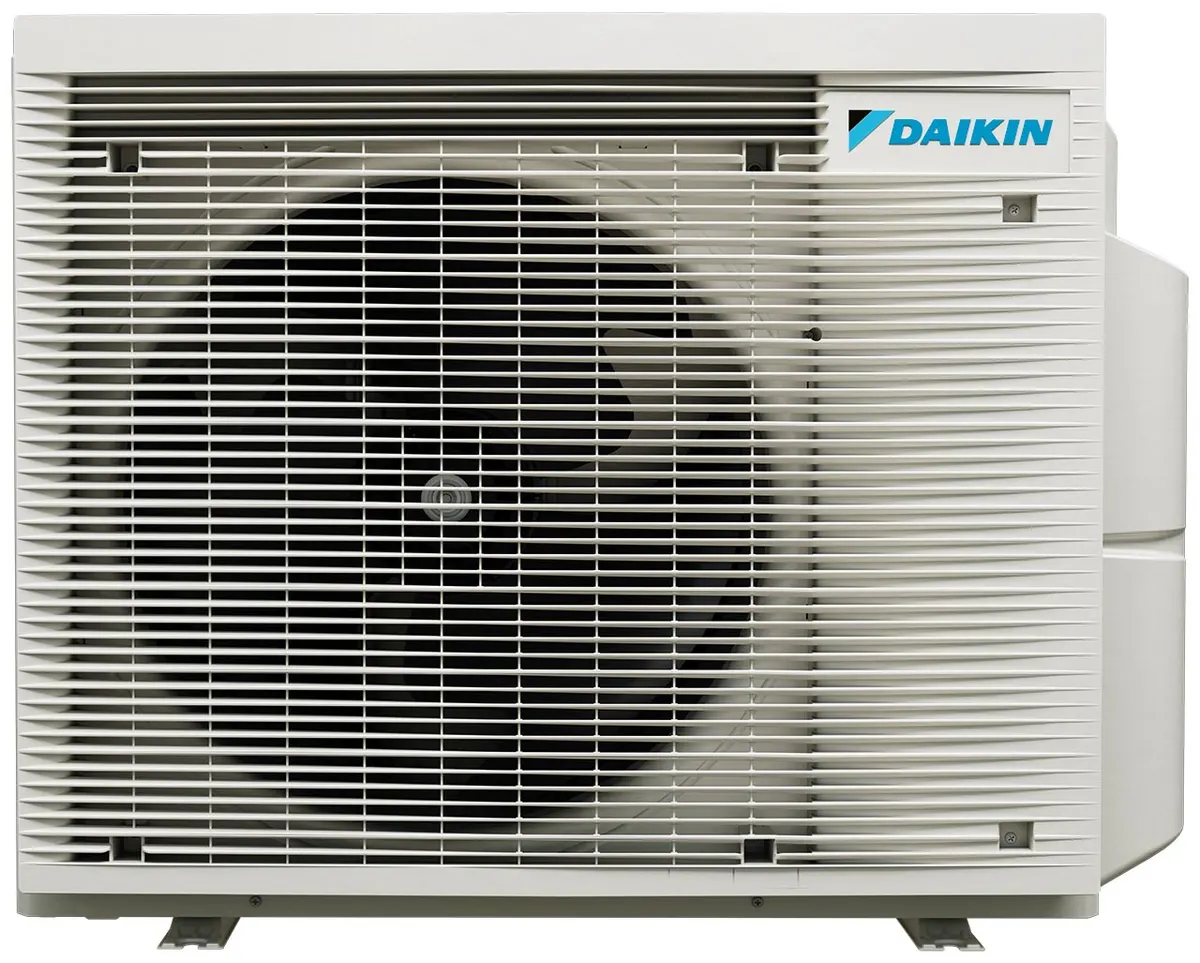

Daikin MXM
Jednostka zewnętrzna · do 4 jednostek
Kod produktu: 4MXM80
do 4Jednostek wewn.
8,0 kWChłodzenie
7,64SEER
4,46SCOP
Dane techniczne
capacity
| Capacity cool nominal kW | 8 kW |
|---|---|
| Capacity heat nominal kW | 9,6 kW |
hydraulic
| Pipe length max m | 70 m |
|---|---|
| Refrigerant charge factory kg | 2,4 kg |
| Refrigerant co2 equivalent t | 1,62 t |
| Refrigerant gwp | 675 ratio |
| Refrigerant type | R32 enum_marker |
performance
| Dim depth outdoor net mm | 408 mm |
|---|---|
| Dim height outdoor net mm | 734 mm |
| Dim width outdoor net mm | 974 mm |
| Weight outdoor net kg | 67 kg |
seasonal
| Operating temp cool max c | 46 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -15 °C |
