Daikin

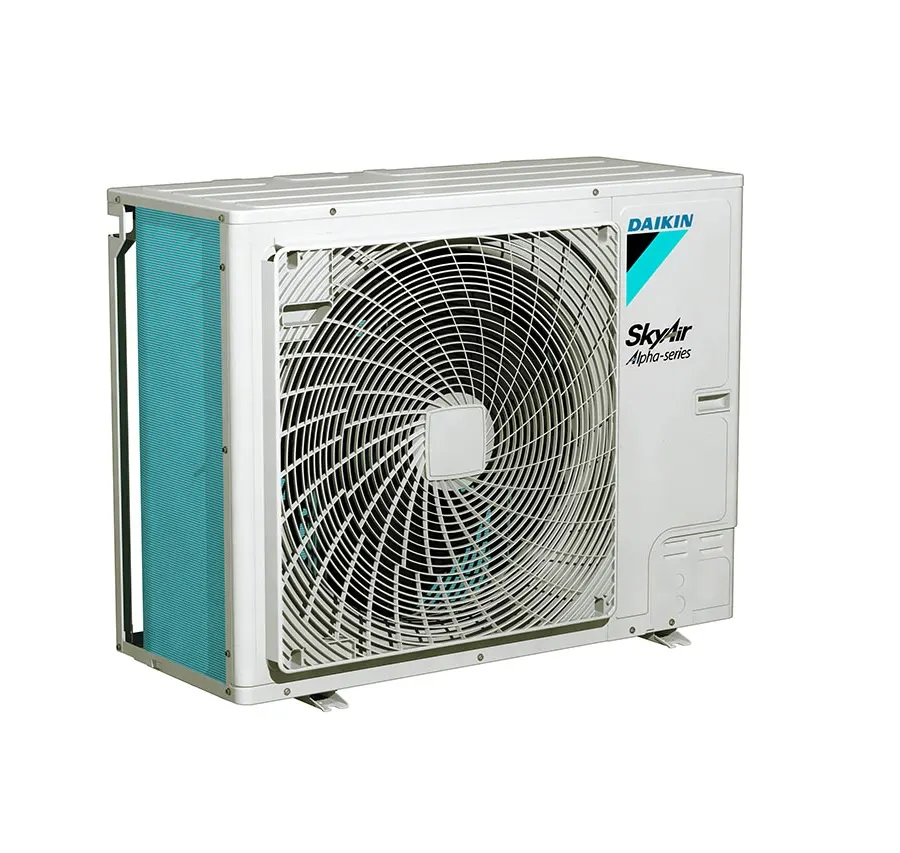

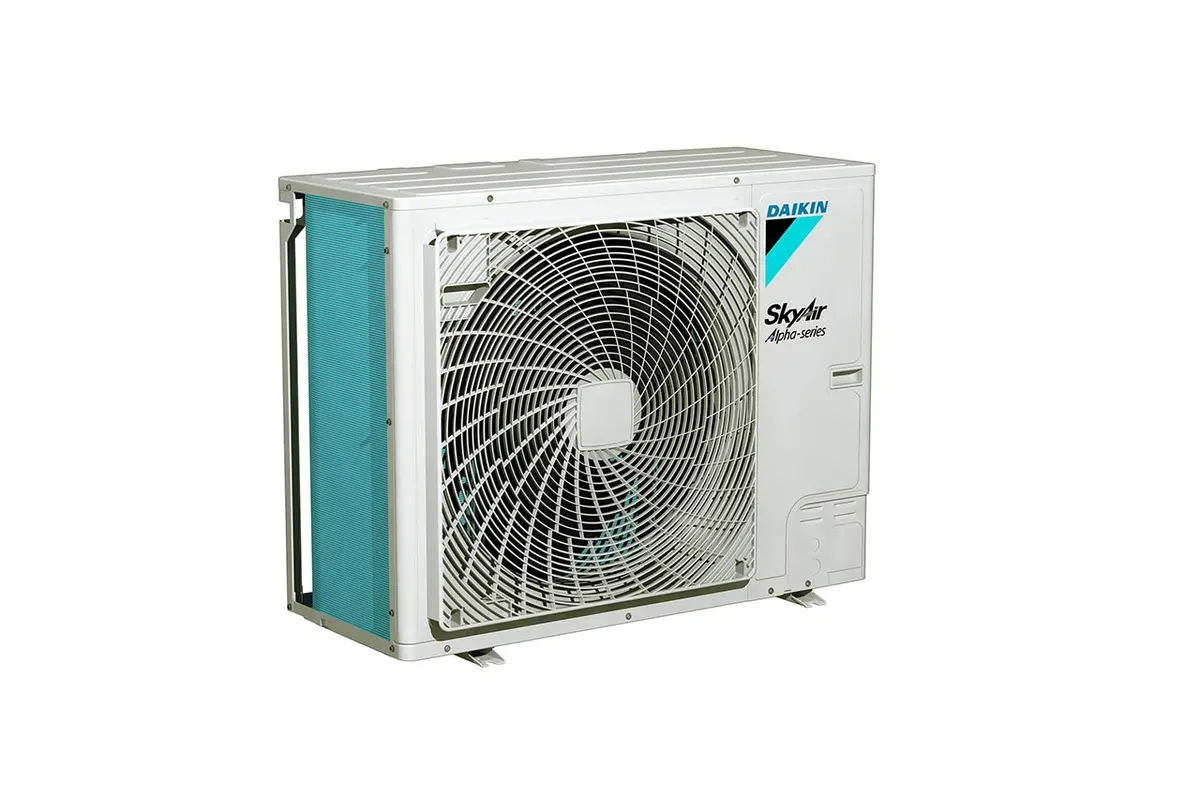

Daikin FCAHG-H
Jednostka zewnętrzna
Kod produktu: RZAG125NY1
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 49 dBA |
|---|---|
| Sound power outdoor dB(A) | 69 dBA |
electrical
| Current system max a | 16 A |
|---|---|
| Phase count | 3 szt |
| Voltage supply max v | 415 V |
| Voltage supply min v | 380 V |
hydraulic
| Pipe height diff max m | 30 m |
|---|---|
| Pipe length max m | 55 m |
| Refrigerant charge factory kg | 3,7 kg |
| Refrigerant gwp | 675 ratio |
| Refrigerant type | R32 enum_marker |
performance
| Dim depth outdoor net mm | 460 mm |
|---|---|
| Dim height outdoor net mm | 870 mm |
| Dim width outdoor net mm | 1100 mm |
| Weight outdoor net kg | 94 kg |
seasonal
| Operating temp cool max c | 52 °C |
|---|---|
| Operating temp cool min c | -20 °C |
| Operating temp heat max c | 18 °C |
| Operating temp heat min c | -20 °C |
